Part number
81821
Model no
Mureva plug
$17.20 On request Dispatch — · From TürkiyeGet a Quote

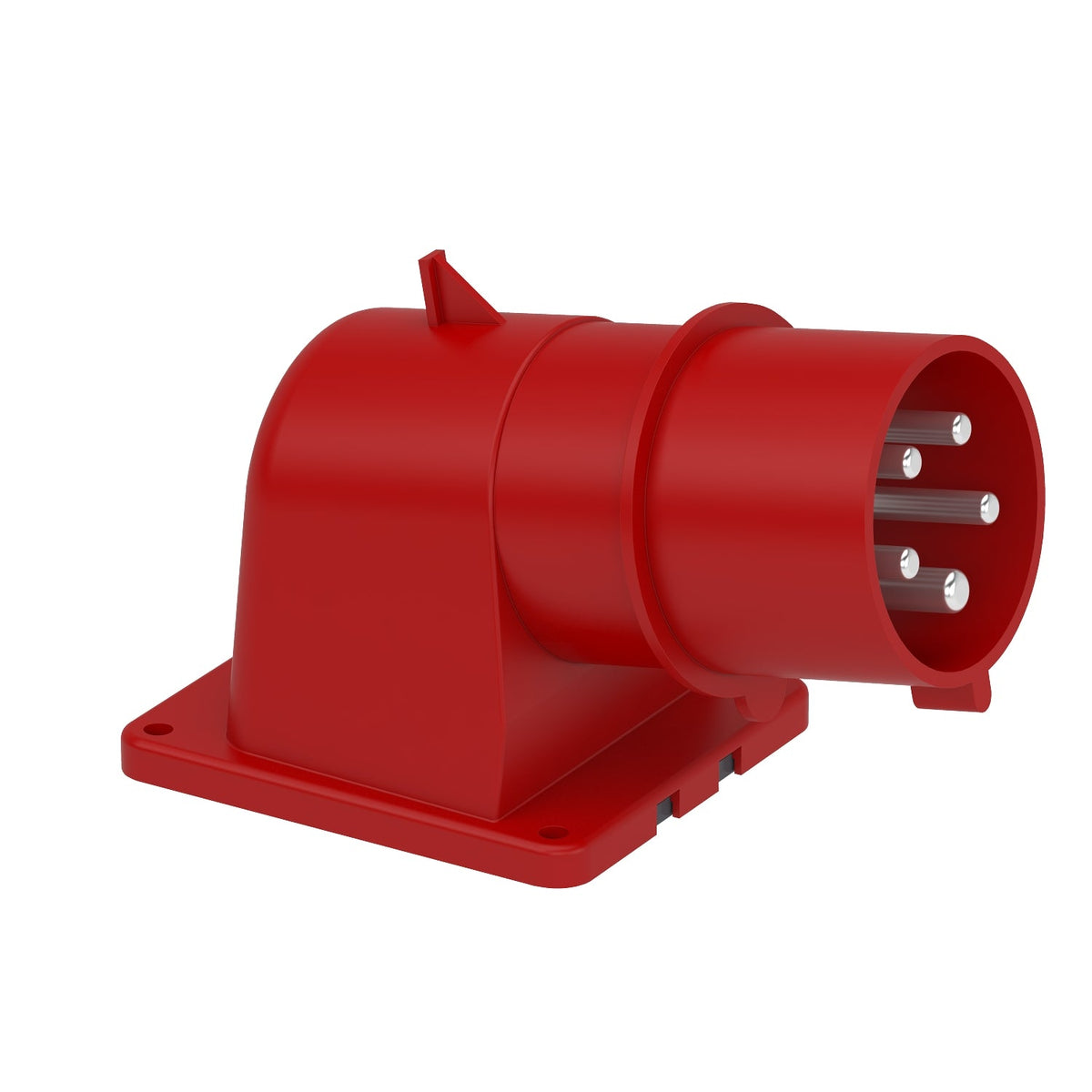

Schneider Electric 81821 Mureva PK Panel-mounted Plug 32 A 3P+N+E 380-415 V IP44 Industrial Plug

Schneider Electric 81821 Mureva PK panel-mounted plug, 32 A, 3P+N+E, IP44.

Rated current
32 A
Rated operational voltage
380–415 V AC
Description

About the Mureva plug

The Schneider Electric 81821 is a Mureva PK industrial plug rated 32 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is panel-mounted, uses 90-degree angled contacts set at the 6 h clock position, and carries an IP44 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.285 kg, in line with its current rating.

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

At 32 A this IP44 panel plug steps up from the 16 A version in the same indoor range for a heavier three-phase-with-neutral load, using a larger 2.5-10 mm2 terminal to take the thicker cable that current needs. Use the 16 A version instead for lighter control-panel circuits where the smaller body is preferable.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Plug
Device short name Mureva plug
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 17

Mounting mode Panel-mounted
Plug, socket, control station shape 90° angled
[In] rated current 32 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Self-extinguishing engineering polymer
Contacts material Pins: nickel plated brass
Connections - terminals Captive screws
Cable cross section 2.5…10 mm²
Net weight 0.285 kg
Base dimension 90 x 100 mm
Height 159 mm
Width 90 mm
Depth 101 mm
Colour Red
Voltage colour Red

Environment 7

Standards EN 60309-2, EN 60309-1
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number 81821
Type designation Mureva plug
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 10.000 cm
Package 1 Length 16.000 cm
Package 1 Weight 242.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 4
Package 2 Height 17.000 cm
Package 2 Width 26.500 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.120 kg
Unit Type of Package 3 S03
Number of Units in Package 3 8
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.651 kg
Shipping weight 0.285 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 81821

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 60309-2
  • EN 60309-1
Quick answers

Questions about the Mureva plug

What is the rated current of Mureva plug?

The rated current of Mureva plug is 32 A.

Which supply voltage is Mureva plug rated for?

The rated operational voltage of Mureva plug is 380–415 V AC.

What is the HS code of Mureva plug for customs?

The tariff (HS) code on file for Mureva plug is 853669.

Where does Mureva plug ship from, and how fast?

Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
