Part number
81695
Model no
Mureva socket
$86.27 On request Dispatch — · From TürkiyeGet a Quote

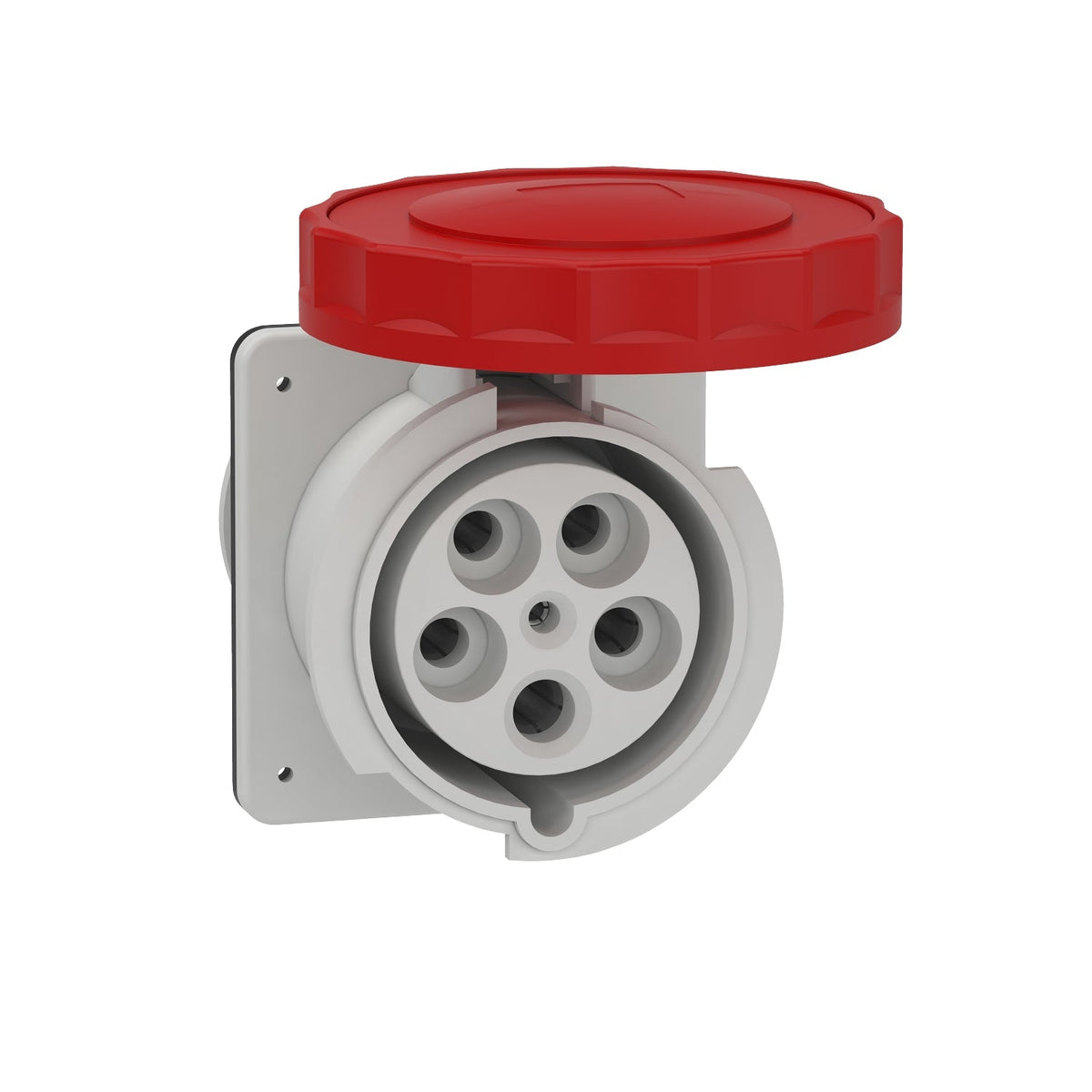

Schneider Electric 81695 Mureva PK Panel-mounted Socket 125 A 3P+N+E 380-415 V IP67 Industrial Socket

Schneider Electric 81695 Mureva PK panel-mounted socket, 125 A, 3P+N+E, IP67.

Rated current
125 A
Rated operational voltage
380–415 V AC
Description

About the Mureva socket

The Schneider Electric 81695 is a Mureva PK industrial socket rated 125 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is panel-mounted, uses straight contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 1.346 kg, in line with its current rating.

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

This is the neutral-equipped sibling of the 125 A straight panel-mounted socket, for cabinets feeding single-phase circuits alongside the three-phase supply at the higher current. It keeps the same flush panel fit as the 3P+E 125 A version; choose that variant where no neutral is needed.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 17

Mounting mode Panel-mounted
Plug, socket, control station shape Straight
[In] rated current 125 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Pins: stainless steel, Sleeves: nickel plated brass, Springs: stainless steel
Connections - terminals Captive screws, completely loosened
Cable cross section 16…70 mm²
Net weight 1.346 kg
Base dimension 110 x 114 mm
Height 114 mm
Width 129 mm
Depth 161 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 6

Standards EN 60309-2, EN 60309-1
IP degree of protection IP67 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s )
Show all 54 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number 81695
Type designation Mureva socket
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 14.000 cm
Package 1 Length 17.000 cm
Package 1 Weight 1.510 kg
Unit Type of Package 2 S03
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 13.787 kg
Shipping weight 1.346 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 81695

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 60309-2
  • EN 60309-1
Quick answers

Questions about the Mureva socket

What is the rated current of Mureva socket?

The rated current of Mureva socket is 125 A.

Which supply voltage is Mureva socket rated for?

The rated operational voltage of Mureva socket is 380–415 V AC.

What is the HS code of Mureva socket for customs?

The tariff (HS) code on file for Mureva socket is 853669.

Where does Mureva socket ship from, and how fast?

Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
