- Part number
- 81583
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

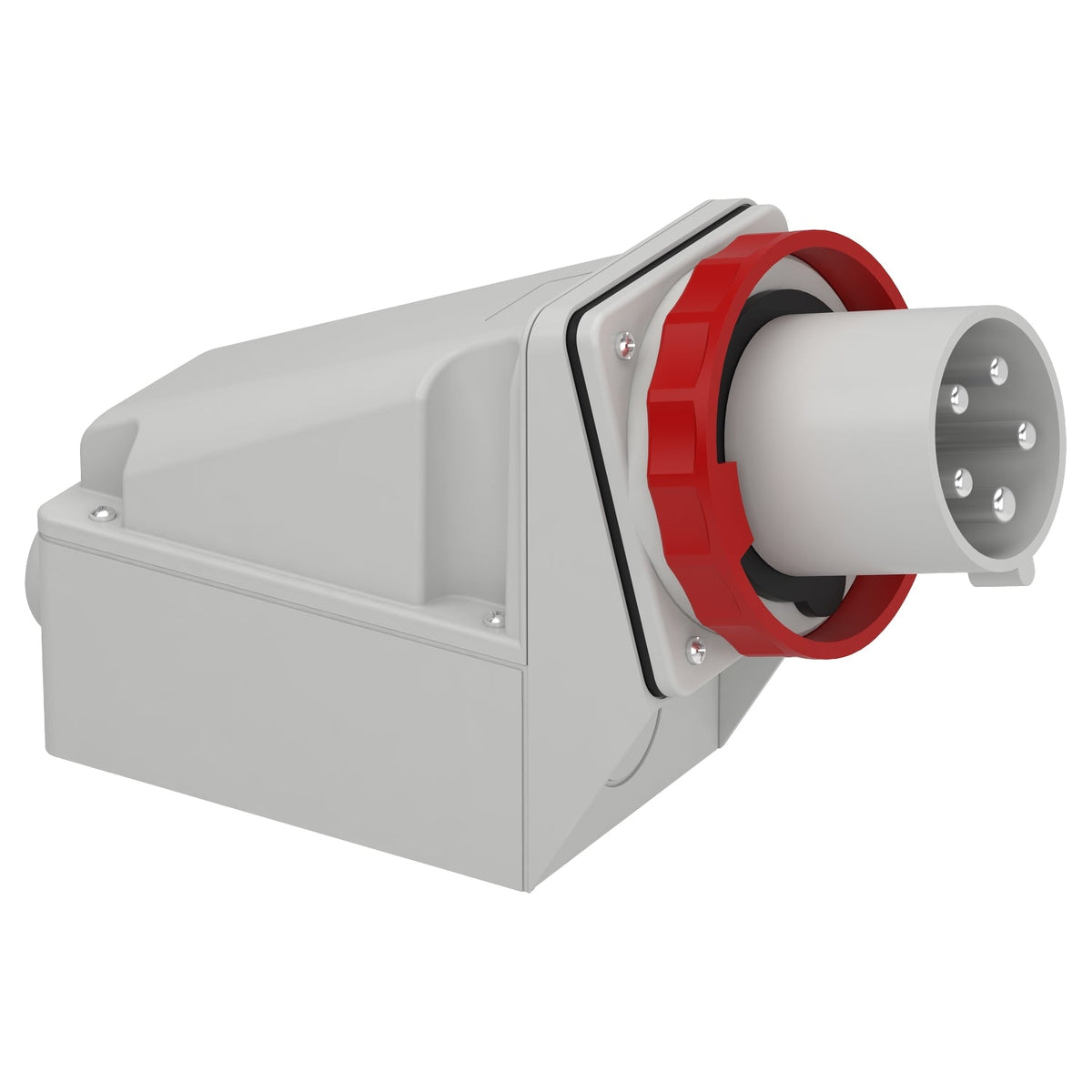

The Schneider Electric 81583 is a Mureva PK industrial plug rated 63 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is wall-mounted, uses angled contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 1.097 kg, in line with its current rating.
Certifications & Standards
- EN 60309-1
- EN 60309-2
Selection Notes
This wall-mounted plug adds the neutral pole to the 3P+E 63 A version, for a fixed supply point that needs to pass single-phase circuits to the connected equipment alongside the three-phase feed. It keeps the same wall-mounted body and Pg 36 cable entry as the 3P+E variant.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 19
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 6…25 mm² |
| cable entry | Cable gland |
| Thread type | Pg 36 |
| Net weight | 1.097 kg |
| Base dimension | 104 x 162 mm |
| Height | 281 mm |
| Width | 104 mm |
| Depth | 180 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | EN 60309-2, EN 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 57 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 81583 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.000 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 27.500 cm |
| Package 1 Weight | 1.100 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.800 kg |
| Shipping weight | 1.097 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 81583
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 60309-2
- EN 60309-1
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 63 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
