- Part number
- 81383
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

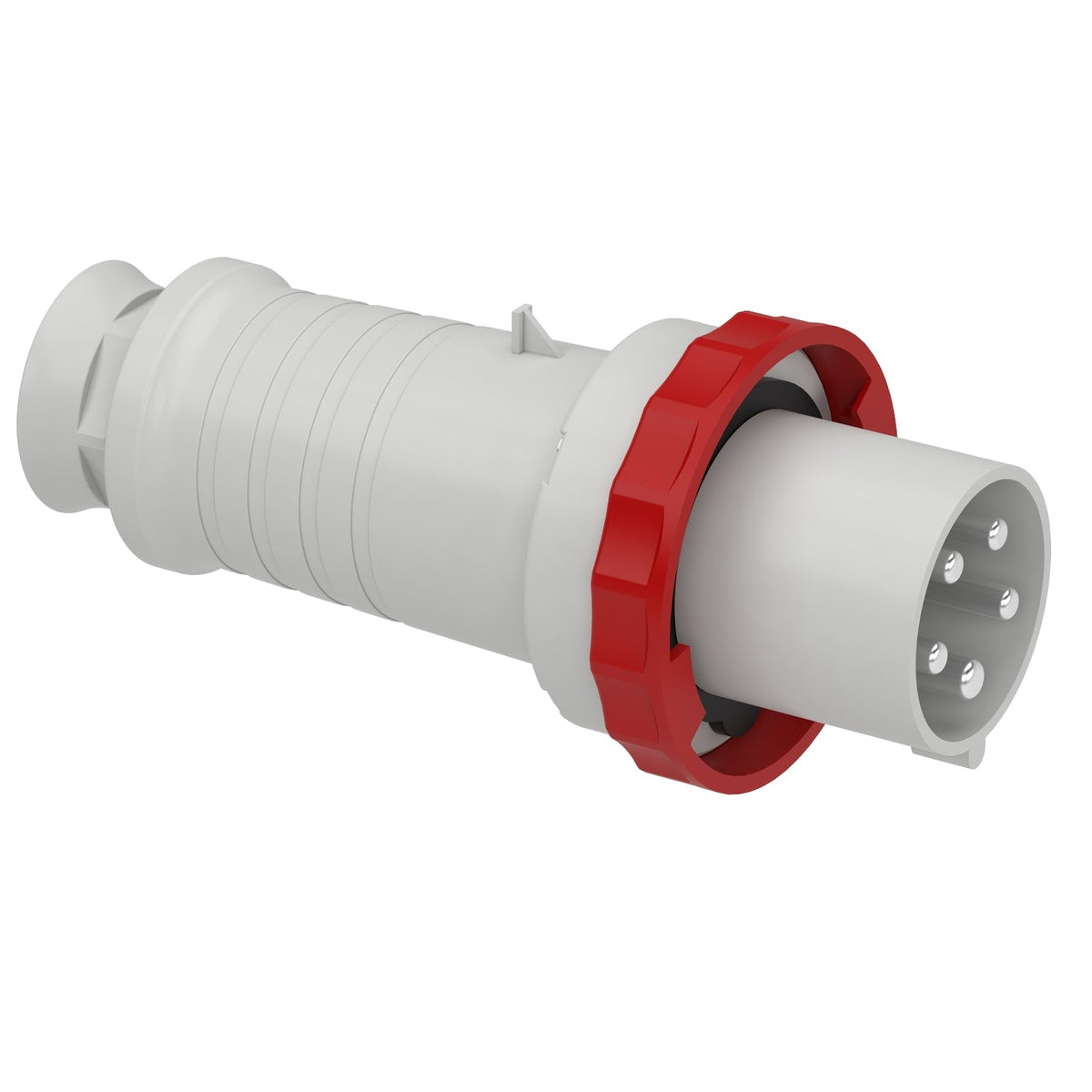

The Schneider Electric 81383 is a Mureva PK industrial plug rated 63 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is portable (wander), uses straight contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.792 kg, in line with its current rating.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
Adding the neutral conductor to the 63 A wander plug lets the flexible cable it terminates carry both three-phase and single-phase circuits to the connected equipment. It keeps the same cable entry and overall size as the 3P+E wander plug in the range; drop to that 3P+E version where no neutral is ever needed on the load side.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 6…25 mm² |
| Cable outer diameter | 17…31 mm |
| cable entry | Cable gland |
| Thread type | Pg 36 |
| Net weight | 0.792 kg |
| Height | 265 mm |
| Width | 110 mm |
| Depth | 110 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 62 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 81383 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.300 cm |
| Package 1 Width | 11.300 cm |
| Package 1 Length | 26.400 cm |
| Package 1 Weight | 801.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.410 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 78.080 kg |
| Shipping weight | 0.792 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 81383
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 63 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
