- Part number
- 81378
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

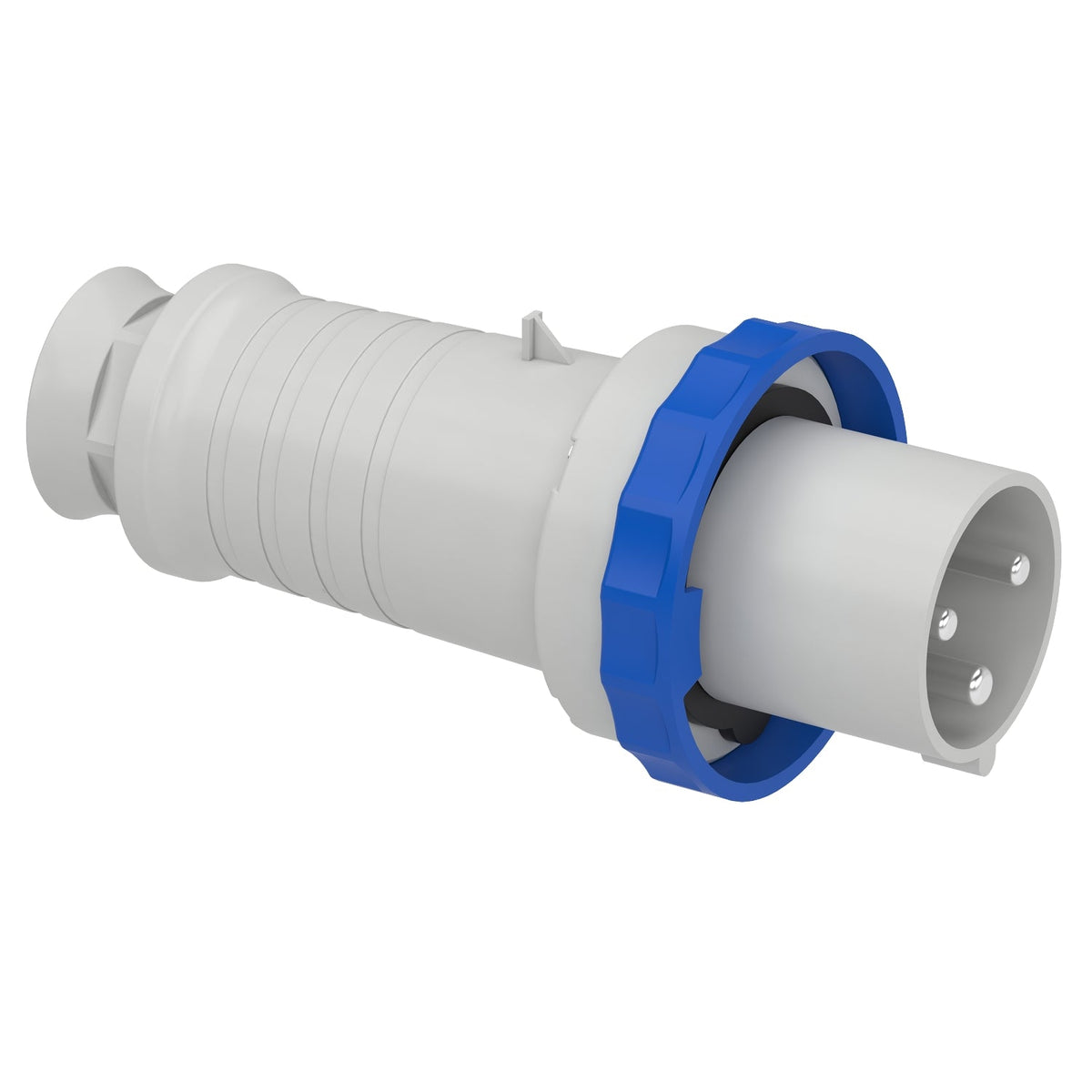

The Schneider Electric 81378 is a Mureva PK industrial plug rated 63 A at 200-250 V, configured single-phase, 2P+E. It is portable (wander), uses straight contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.672 kg, in line with its current rating.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
As a wander (cable-mounted) plug rather than a fixed wall or panel fitting, this unit terminates a flexible supply cable so it can be carried between machines or extension reels. At 63 A and 2P+E it is sized for single-phase tools and portable equipment; the Pg 36 gland and 17-31 mm cable entry fit a correspondingly sized flexible cable, not the lighter cord used on the 16 A plugs in the range.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 6…25 mm² |
| Cable outer diameter | 17…31 mm |
| cable entry | Cable gland |
| Thread type | Pg 36 |
| Net weight | 0.672 kg |
| Height | 265 mm |
| Width | 110 mm |
| Depth | 110 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
Environment 7
| Standards | IEC 60309-2, IEC 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 56 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 81378 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.300 cm |
| Package 1 Width | 11.400 cm |
| Package 1 Length | 25.500 cm |
| Package 1 Weight | 680.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.287 kg |
| Shipping weight | 0.672 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 81378
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-2
- IEC 60309-1
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 63 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 200–250 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
