- Part number
- 81283
- Model no
- Mureva socket
Description
About the Mureva socket
About the Mureva socket

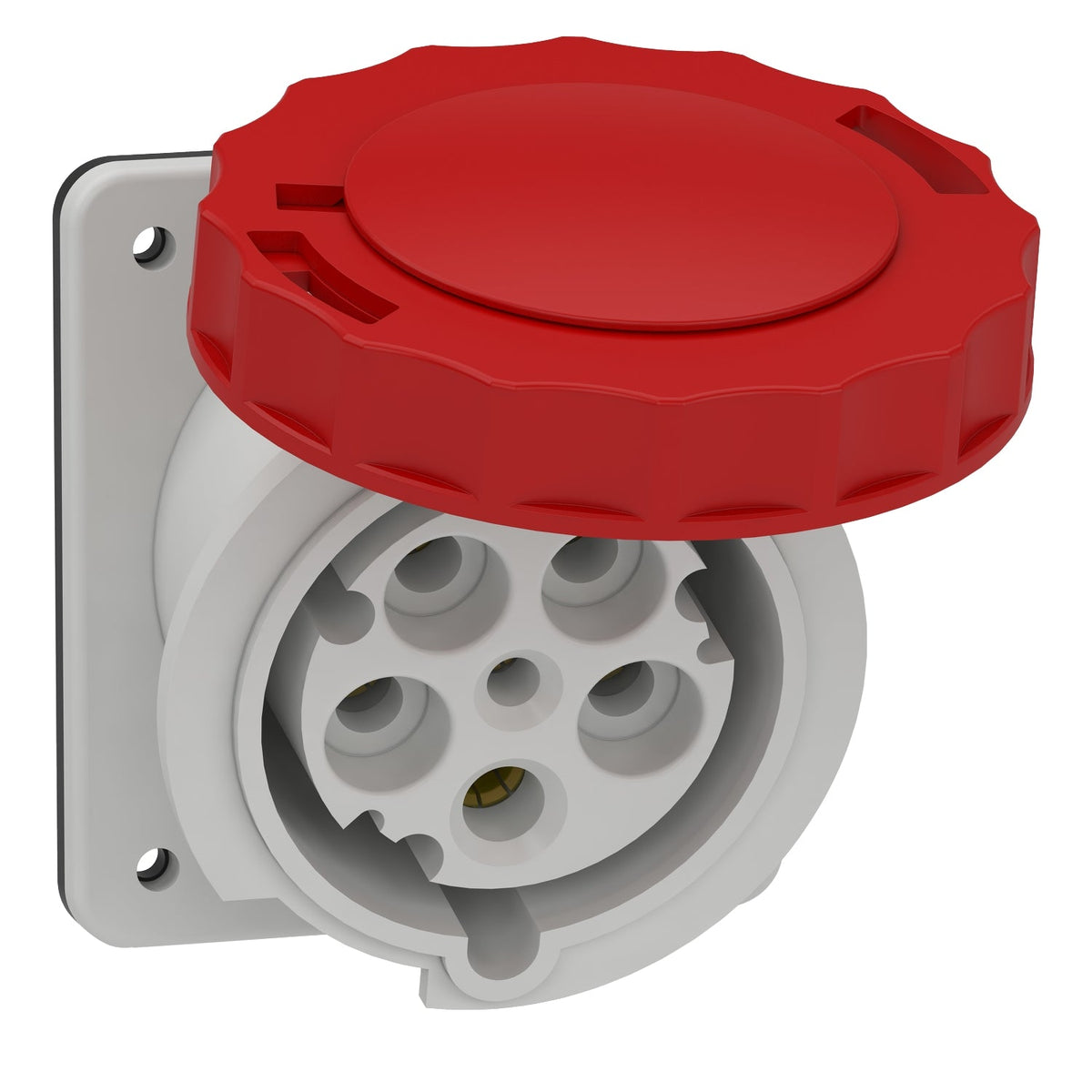

The Schneider Electric 81283 is a Mureva PK industrial socket rated 63 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is panel-mounted, uses angled contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.52 kg, in line with its current rating.
Certifications & Standards
- EN 60309-1
- EN 60309-2
Selection Notes
Adding the neutral pole to the panel-mounted 63 A socket means a distribution cabinet can serve both three-phase and single-phase circuits from one outlet, instead of fitting two separate sockets. It keeps the same compact panel footprint as the 3P+E version in the range; use that 3P+E variant instead where the panel only ever feeds pure three-phase loads.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 17
| Mounting mode | Panel-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel, Sleeves: nickel plated brass, Springs: stainless steel |
| Connections - terminals | Captive screws, completely loosened |
| Cable cross section | 6…25 mm² |
| Net weight | 0.52 kg |
| Base dimension | 100 x 107 mm |
| Height | 107 mm |
| Width | 100 mm |
| Depth | 129 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | EN 60309-1, EN 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
Show all 54 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | 81283 |
|---|---|
| Type designation | Mureva socket |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.800 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 12.900 cm |
| Package 1 Weight | 542.600 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.539 kg |
| Shipping weight | 0.52 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 81283
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 60309-1
- EN 60309-2
Quick answers
Questions about the Mureva socket
What is the rated current of Mureva socket?
The rated current of Mureva socket is 63 A.
Which supply voltage is Mureva socket rated for?
The rated operational voltage of Mureva socket is 380–415 V AC.
What is the HS code of Mureva socket for customs?
The tariff (HS) code on file for Mureva socket is 853669.
Where does Mureva socket ship from, and how fast?
Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
