Schneider Electric 81282 Mureva PK Panel-mounted Socket 63 A 3P+E 380-415 V IP67 Industrial Socket

% $-50.48

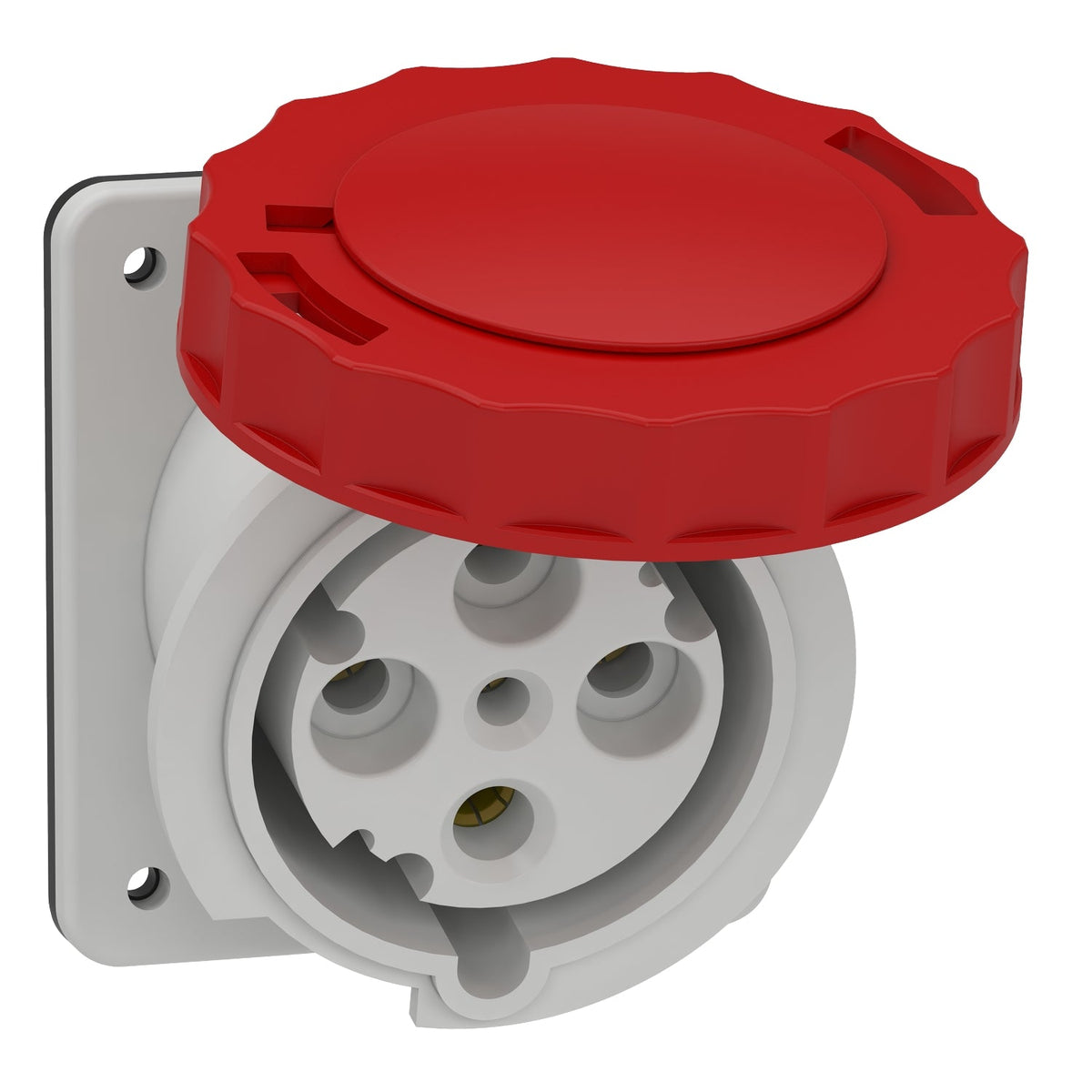

Schneider Electric 81282 Mureva PK panel-mounted socket - 63 A 3P+E IP67
Schneider Electric 81282 Mureva PK panel-mounted socket - 63 A 3P+E IP67

Schneider Electric 81282 Mureva PK Panel-mounted Socket 63 A 3P+E 380-415 V IP67 Industrial Socket

Brand: Schneider Electric
Reference No: 81282
Catalog No: 81282
Tariff Code (HS): 853669
Rated Current: 63 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$50.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 81282 is a Mureva PK industrial socket rated 63 A at 380-415 V, configured three-phase without neutral, 3P+E. It is panel-mounted, uses angled contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.473 kg, in line with its current rating.

Technical Specifications

Reference 81282
Brand Schneider Electric
Range Mureva PK
Device short name Mureva socket
Product type Socket
Poles 3P+E
Network type AC
Outlet standard Industrial (IEC 60309)
Mounting mode Panel-mounted
Shape Angled
Rated current (In) 63 A
Rated operational voltage (Ue) 380-415 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Housing material Self-extinguishing engineering polymer
Cable cross section 6...25 mm2
Colour Grey (RAL 7035)
Voltage colour code Red
IP degree of protection IP67 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 degC (IEC 60695-2-11)
Mounting base dimensions 100 x 107 mm
Dimensions (H x W x D) 107 x 108 x 129 mm
Net weight 0.473 kg

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

Built into a panel rather than a wall, this socket suits a distribution cabinet feeding a three-phase load with no neutral requirement, such as a three-phase motor circuit. It shares the same compact angled body as the 2P+E panel-mounted version, just rated 380-415 V; move to the 3P+N+E variant if the cabinet also needs to supply single-phase equipment through the same outlet.

Technical Details

Short Description
Schneider Electric 81282 Mureva PK panel-mounted socket, 63 A, 3P+E, IP67.
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Panel-mounted
Protection Type
IP67
Catalog No
81282
Delivery Date (Days)
30 days
Model Number
Mureva PK Panel-mounted Socket
Tariff Code
853669
