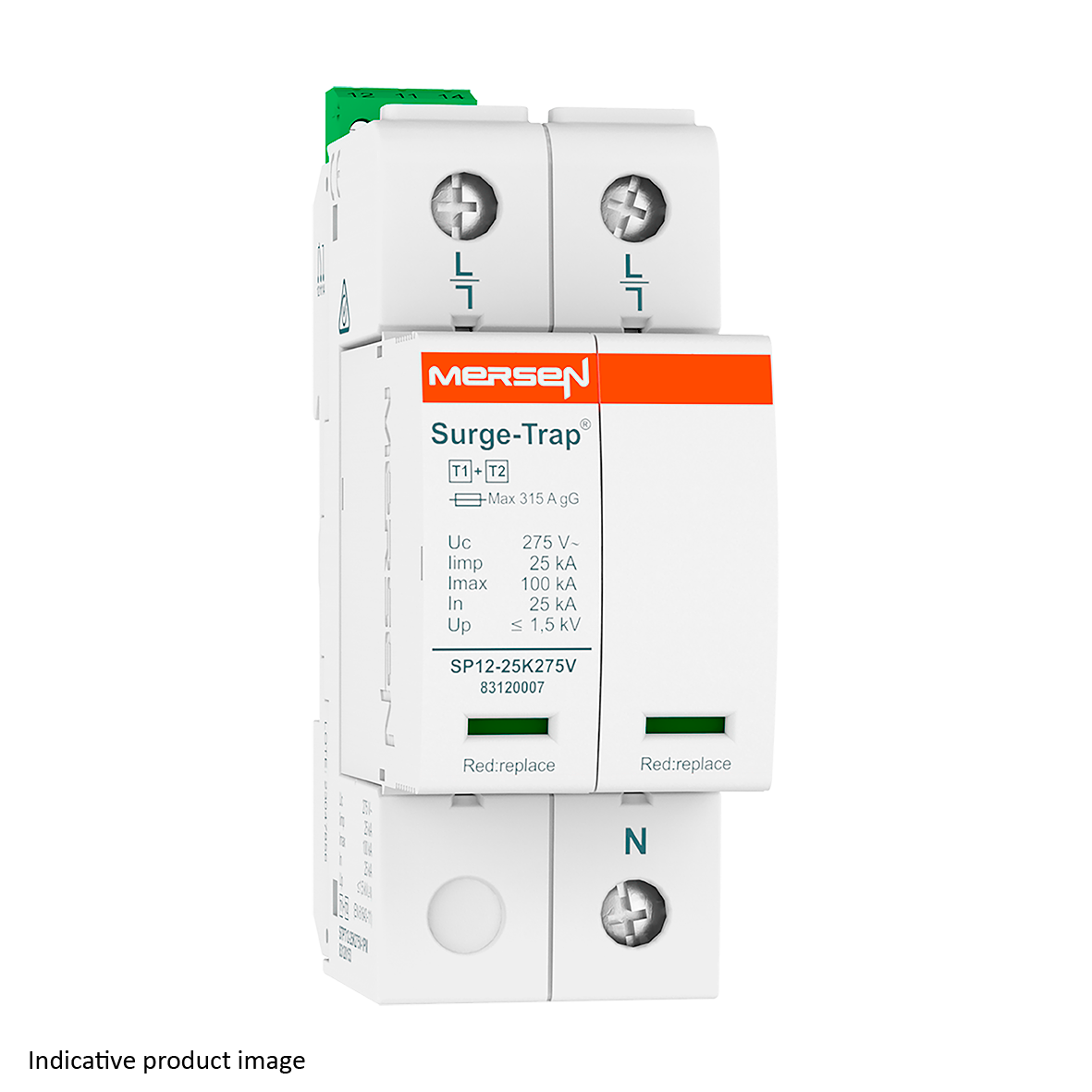

Mersen 83120152 STPT12-25K275V-1P Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Pluggable, 2 Modules

Name: Mersen 83120152 STPT12-25K275V-1P Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Pluggable, 2 Modules
Brand: Mersen
SKU: 83120152
Price: 165.49 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: 83120152

Catalog No: STPT12-25K275V-1P

Series: Surge-Trap® Pluggable STPT12 Series - 25kA

Tariff Code (HS): 85363030

Stock: 0

Shipping Origin: Turkey EXW

$165.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen STPT12-25K275V-1P (83120152) is a surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Pluggable, 2 Modules from the Surge-Trap® Pluggable STPT12 Series - 25kA range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	STPT12-25K275V-1P
ROHS Compliant	Yes
IEC SPD Type	Class I+II
Format	Pluggable
Nominal Operating Volt Rating (Un)	230
AC or DC	AC
Max Discharge Current : Imax (8/20)	100 kA
Protection Modes	L - N / L-PE / N-PE
System Configuration	TNS, TNC, TT (nur L-N)
Lightning Impulse Current (10/350) (LIMP)	25 kA
Short Circuit Withstand (ISCCR)	25 kA
Indication System	Yes
Indication System Type	Green (OK) / Not green (replace)
Number of Poles	1-Pole
Torque Rating	3 N m
Max. Back-Up Fuse	315 A [gG]
Housing Material	PA66 CT1
MOV Response Time	≤25
Installation Mounting	DIN Rail
Replacement Plug L1	83120007
Product group	Power Line SPDs
Product Width	36 mm
Product Length	76 mm
Product Height	90 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.38 kg
Sell Pack Width	42 mm
Sell Pack Length	117 mm
Sell Pack Height	90 mm
Product Weight	0.345 kg
EAN/UPC	8435297859055

Certifications & Compliance

CE
RoHS
REACH

Technical Details

Short Description

Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Pluggable, 2 Modules

Mounting Type

DIN Rail

Catalog No

STPT12-25K275V-1P

Standards

CE, RoHS, REACH

Model Number

STPT12-25K275V-1P

Tariff Code

85363030
