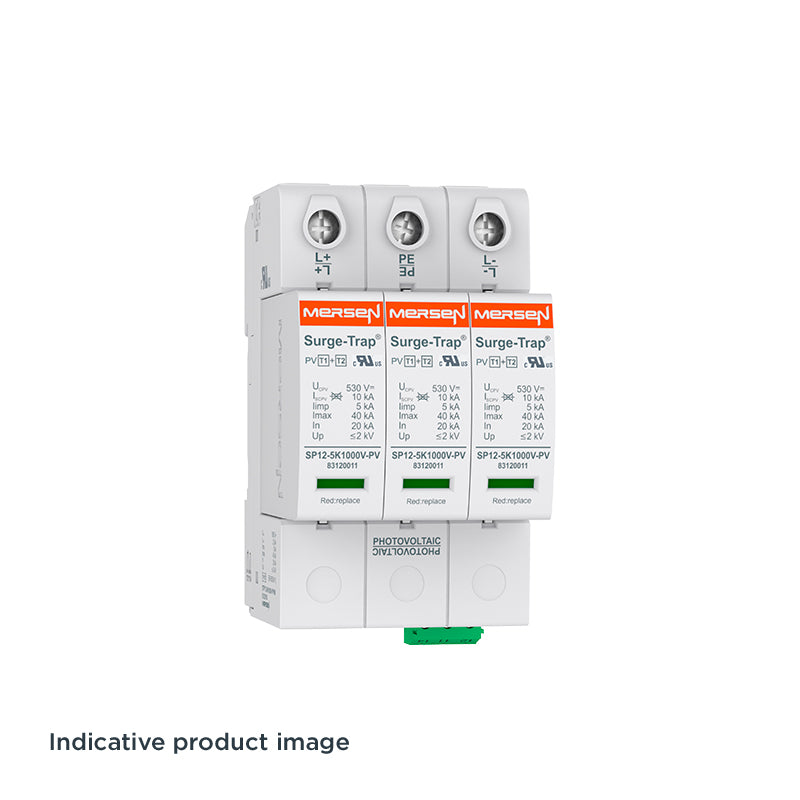

Mersen 83120167 STPT12-5K1000V-YPV Surge Protection Device Type 1+2, 5kA Iimp (10/350), Y PV, 1000Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules

Name: Mersen 83120167 STPT12-5K1000V-YPV Surge Protection Device Type 1+2, 5kA Iimp (10/350), Y PV, 1000Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules
Brand: Mersen
SKU: 83120167
Price: 143.76 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: 83120167

Catalog No: STPT12-5K1000V-YPV

Series: Surge-Trap® Pluggable STPT12 Series - YPV

Tariff Code (HS): 85363030

Stock: 0

Shipping Origin: Turkey EXW

$143.76

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen STPT12-5K1000V-YPV (83120167) is a surge Protection Device Type 1+2, 5kA Iimp (10/350), Y PV, 1000Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules from the Surge-Trap® Pluggable STPT12 Series - YPV range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	STPT12-5K1000V-YPV
ROHS Compliant	Yes
IEC SPD Type	Class I+II
UL SPD Type	Type 1 Component Assembly
Format	Pluggable
AC or DC	DC
Nominal Discharge Current (In) (8/20)	20 kA
Max Discharge Current : Imax (8/20)	40 kA
Protection Modes	L+/PE, L-/PE, L+/L-
System Configuration	YPV
Lightning Impulse Current (10/350) (LIMP)	5 kA
Short Circuit Withstand (ISCPV)	10 kA
Indication System	Yes
Indication System Type	Green (OK) / Not green (replace)
Torque Rating	3 N m
Housing Material	PA66 CT1
MOV Response Time	≤25
Up at In (L-PE)	≤4 kV
MCOV DC+ DC-	1000 V
MCOV DC+ G	1000 V
MCOV DC- G	1000 V
VPR DC+ DC-	2500 V
VPR DC+ G	2500 V
VPR DC- G	2500 V
Replacement Plug L1	83120011
Product group	Photovoltaic & Energy Storage SPDs
Product Width	54 mm
Product Length	70 mm
Product Height	90 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.403 kg
Sell Pack Width	63 mm
Sell Pack Length	117 mm
Sell Pack Height	90 mm
Product Weight	0.364 kg
EAN/UPC	8435297860129

Certifications & Compliance

CE
RoHS
REACH

Technical Details

Short Description

Surge Protection Device Type 1+2, 5kA Iimp (10/350), Y PV, 1000Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules

Catalog No

STPT12-5K1000V-YPV

Standards

CE, RoHS, REACH

Model Number

STPT12-5K1000V-YPV

Tariff Code

85363030
