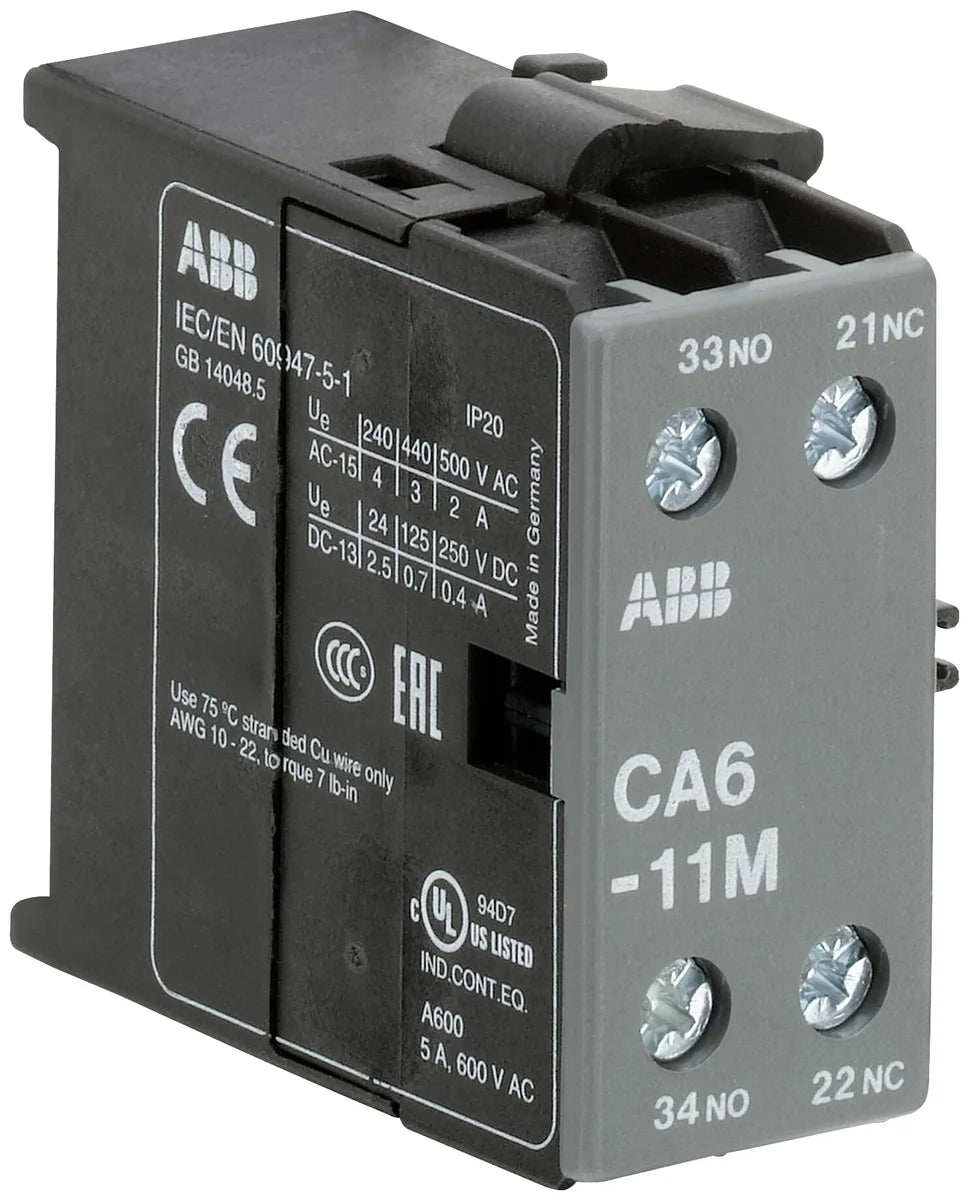

ABB GJL1201317R0003 CA6-11M 1NO+1NC Side Mount Auxiliary Contact Block 690V AC Screw Terminal

The ABB CA6-11M auxiliary contact block (SKU: GJL1201317R0003) is a 2-pole, 1NO+1NC side-mounted add-on contact designed for use with ABB contactors in industrial motor control and automation applications. Rated at 690V AC and featuring screw-terminal connections, the CA6-11M provides reliable auxiliary switching feedback in control circuits. Compact at just 20.3 × 46.5 × 48.5 mm and weighing only 0.03 kg, it integrates seamlessly into control panels without adding bulk.

Technical Specifications

Certifications & Standards

• IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC/EN 60947-4-1: Electromechanical contactors and motor starters
• IEC/EN 60947-5-1: Control circuit devices and switching elements
• UL 60947-1: UL-listed per low-voltage switchgear general rules
• UL 60947-4-1: UL-listed per contactor and motor starter standard
• IEC 60335-2-40 A2L: Household and similar electrical appliances — heat pumps, air conditioners
• CSA: Canadian Standards Association certified
• cULus: Combined UL and Canadian UL certification
• cUL: Canadian UL mark
• CE: European conformity marking
• UKCA: UK Conformity Assessed marking for Great Britain market
• CCC: China Compulsory Certification
• RoHS II: Restriction of Hazardous Substances Directive (recast)
• RoHS: Compliant with restriction of hazardous substances
• REACH: Compliant with EU chemical safety regulation
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• Motor starter auxiliary signalling and interlock circuits
• PLC input feedback from contactor status
• Control panel indicator lamp circuits
• HVAC compressor and air-conditioning control systems (IEC 60335-2-40 rated)
• Industrial automation and process control panels
• Safety interlock and permissive circuits
