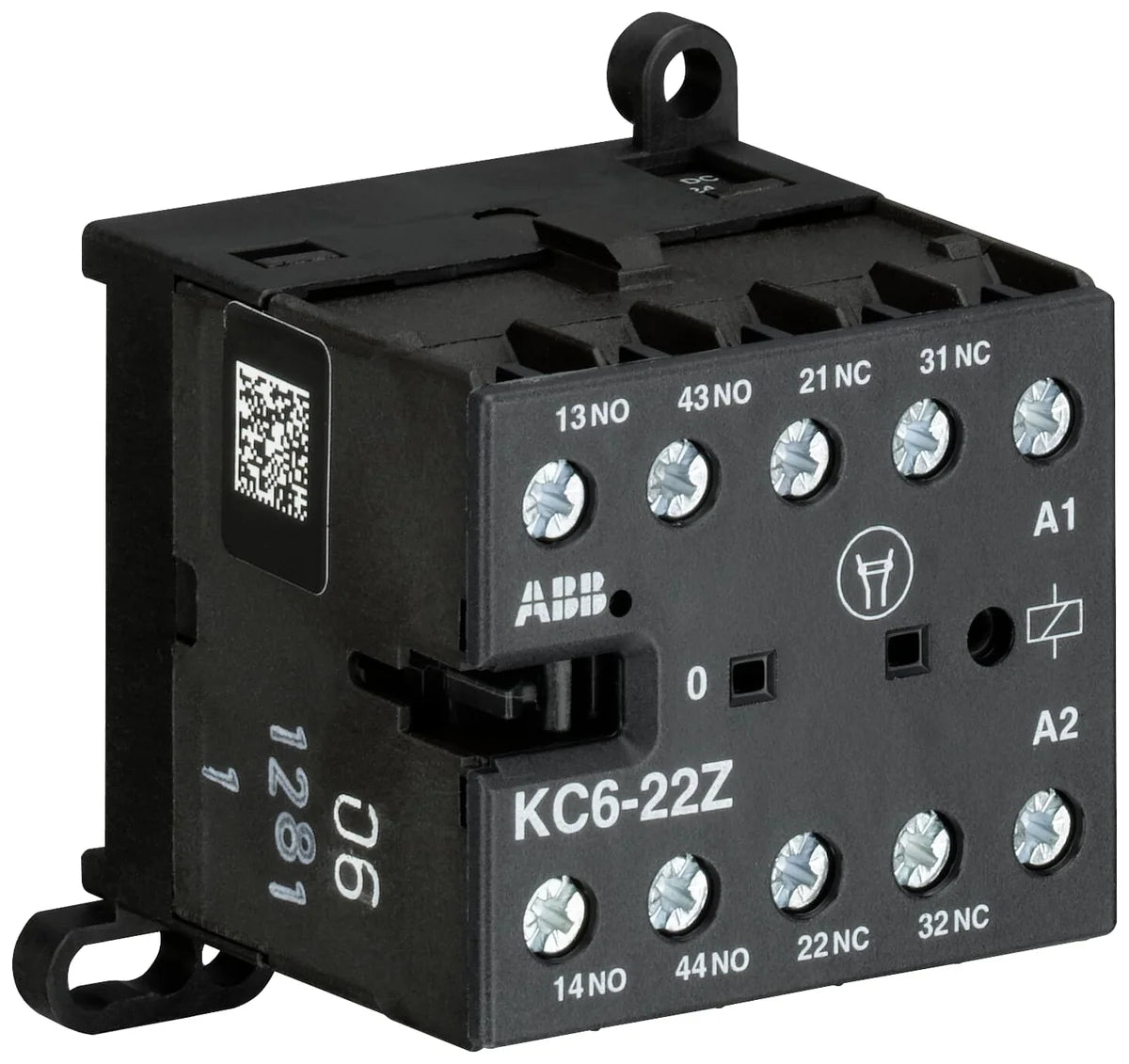

ABB GJH1213001R0221 KC6-22Z-01 Mini Contactor Relay 4P 3A 24V DC 2NO+2NC Screw Terminals
Brand:
ABB
Reference No:
GJH1213001R0221
Catalog No:
KC6-22Z-01
Series:
KC6
Tariff Code (GTIP):
85365080
Stock: 130
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$16.91
- Description
The ABB KC6-22Z-01 (SKU: GJH1213001R0221) is a mini contactor relay designed for compact control panel installations, delivering reliable 24 V DC coil operation across a 4-pole configuration with 2NO+2NC contact arrangement. Rated at 3 A and 400 V, the KC6-22Z-01 is ideal for industrial automation and machine control applications where space efficiency and dependable switching performance are essential. Screw terminals ensure straightforward, secure wiring in demanding environments.
Technical Specifications
| Catalog Number | KC6-22Z-01 |
| SKU | GJH1213001R0221 |
| Brand | ABB |
| Series | KC6 |
| Product Type | Mini Contactor Relay |
| Coil Voltage | 24 V DC |
| Rated Current | 3 A |
| Rated Voltage | 400 V |
| Number of Poles | 4 |
| Contact Configuration | 2NO + 2NC |
| Terminal Type | Screw Terminals |
| Dimensions (W x H x D) | 52.5 x 46.5 x 57.5 mm |
| Weight | 0.175 kg |
| EAN | 4013614049644 |
Certifications & Standards
- CE: Compliant with European Conformity requirements for electrical equipment
- RoHS: Restriction of Hazardous Substances compliant
- RoHS II: Compliant with the updated RoHS II Directive (2011/65/EU)
- REACH: Compliant with EU REACH chemical regulation
- WEEE: Registered under Waste Electrical and Electronic Equipment directive
- UKCA: UK Conformity Assessed marking for Great Britain market
- CCC: China Compulsory Certification for the Chinese market
- CSA: Canadian Standards Association certified
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60947-1: European harmonised standard — general rules for low-voltage switchgear
- IEC/EN 60947-1: Combined IEC and EN general rules for low-voltage switchgear and controlgear
- IEC/EN 60947-4: Contactors and motor-starters for low-voltage switchgear
- IEC/EN 60947-5: Control circuit devices and switching elements
- IEC 60947-5: Control circuit devices and switching elements — IEC standard
- EN 60947-4: European standard for contactors and motor-starters
- EN 60947-5: European standard for control circuit devices and switching elements
- IEC 60335-2: Safety of household and similar electrical appliances — particular requirements
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
- IEC 60068-2: Environmental testing procedures for electronic components and equipment
Applications & Use Cases
- Industrial automation and machine control panels requiring compact relay switching
- Building management and HVAC control systems with 24 V DC logic circuits
- Process control and instrumentation panels with limited din rail space
- Motor auxiliary control and signalling circuits up to 400 V
- OEM machinery and production equipment requiring IEC/EN certified relay components
Technical Details
Catalog No
KC6-22Z-01
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
KC6-22Z-01
Tariff Code
85365080
