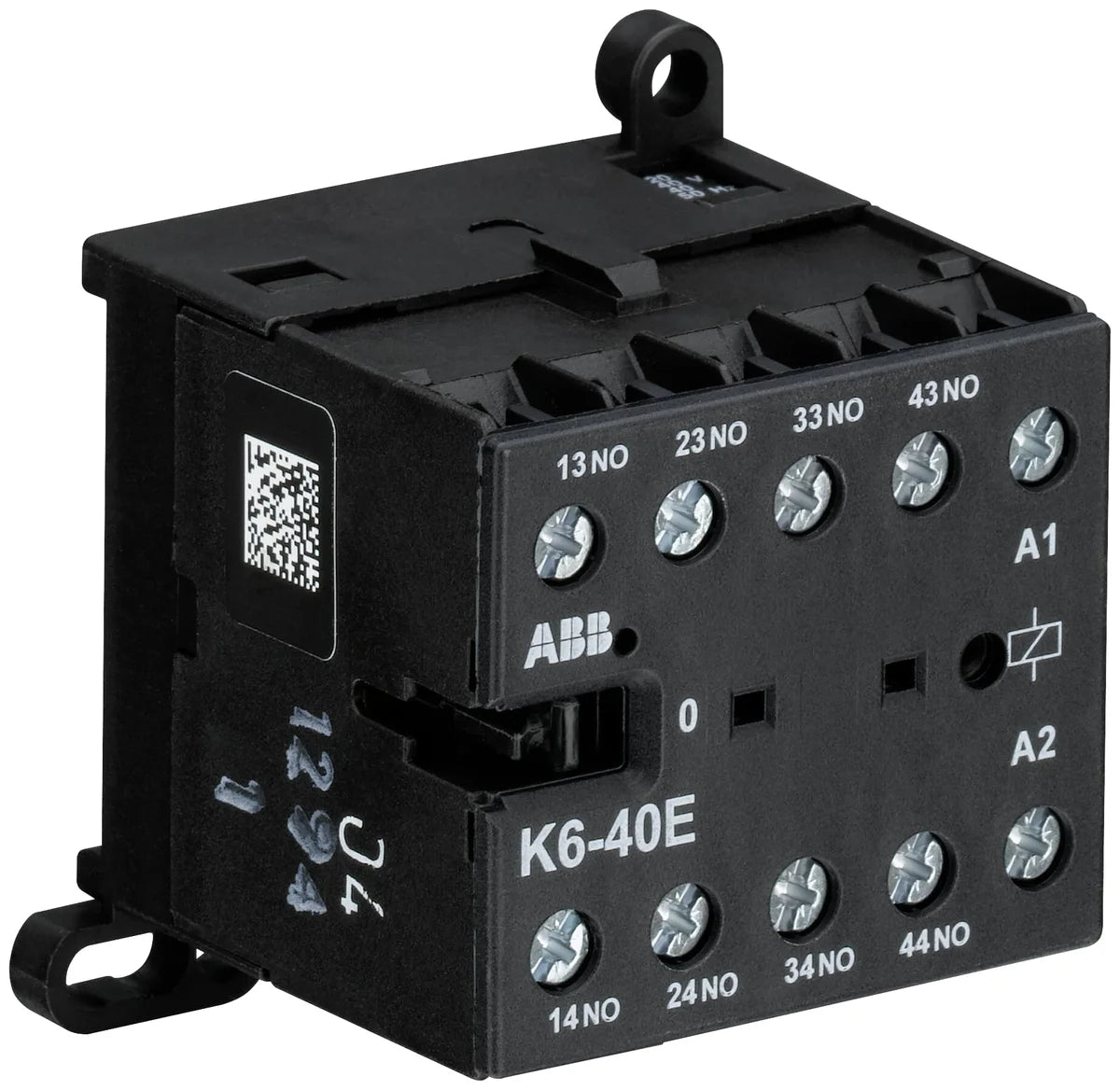

ABB GJH1211001R8400 K6-40E-80 4NO 3A 220-240VAC Mini Contactor Relay Screw Terminals

The ABB K6-40E-80 (SKU: GJH1211001R8400) is a mini contactor relay from the K6 series, rated at 3 A with a 220–240 V AC coil and 4NO contact configuration. Designed for compact control panel integration, the K6-40E-80 supports both DIN rail and wall mounting and features screw terminals for reliable, tool-assisted wiring. At just 175 g and measuring 52.5 × 46.5 × 57.5 mm, it delivers industrial-grade switching performance in a space-saving footprint suited for automation, HVAC, and machinery control applications.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental protection requirements
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• RoHS II: Compliant with updated EU RoHS II Directive (2011/65/EU)
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
• UKCA: UK Conformity Assessed — meets Great Britain market requirements
• CCC: China Compulsory Certification for the Chinese market
• CSA: Certified to Canadian Standards Association requirements
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC/EN 60947-4: Contactors and motor starters — electromechanical contactors and motor starters
• EN 60947-4: European adoption of IEC 60947-4 for contactors and motor starters
• IEC/EN 60947-5: Control circuit devices and switching elements
• IEC 60947-5: Control circuit devices and switching elements (international standard)
• EN 60947-5: European adoption of IEC 60947-5 for control circuit devices
• IEC 60335-2: Safety of household and similar electrical appliances — particular requirements
• IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
