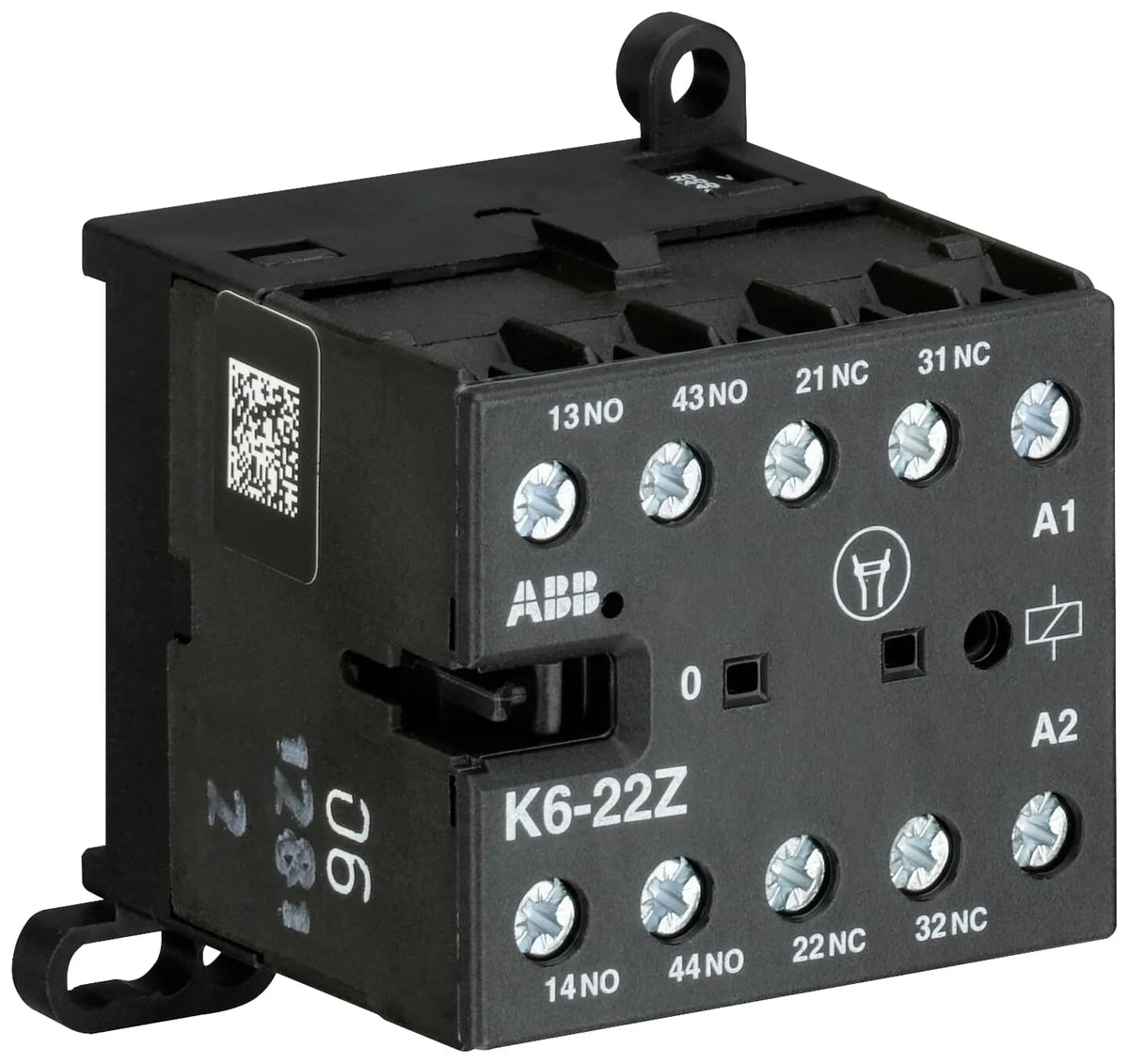

ABB GJH1211001R8220 K6-22Z-80 4-Pole 3A 220-240V AC 2NO+2NC Mini Contactor Relay Screw Terminals
$14.41
- Description
The ABB K6-22Z-80 (SKU: GJH1211001R8220) is a mini contactor relay designed for control circuit switching in industrial automation and building services applications. Rated at 3 A and 400 V with a 4-pole configuration (2NO+2NC), it features a 220–240 V AC coil and screw terminals for reliable, compact installation. The K6-22Z-80 supports both DIN rail and wall mounting, fitting easily into space-constrained control panels with its compact 52.5 × 46.5 × 57.5 mm footprint.
Technical Specifications
| Catalog Number | K6-22Z-80 |
| SKU | GJH1211001R8220 |
| Brand | ABB |
| Series | K6 |
| Product Type | Mini Contactor Relay |
| Rated Current | 3 A |
| Rated Voltage | 400 V |
| Number of Poles | 4 |
| Contact Configuration | 2NO + 2NC |
| Coil Voltage | 220–240 V AC |
| Terminal Type | Screw Terminals |
| Mounting Type | Rail or Wall Mounting |
| Dimensions (W × H × D) | 52.5 × 46.5 × 57.5 mm |
| Weight | 0.175 kg |
| EAN | 4013614152610 |
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- RoHS II: Enhanced RoHS compliance per updated EU directive
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Waste Electrical and Electronic Equipment Directive compliant
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60947-1: European harmonised standard — general rules for low-voltage switchgear
- IEC/EN 60947-1: Combined IEC and EN general rules for low-voltage switchgear and controlgear
- IEC/EN 60947-4: Contactors and motor-starters — electromechanical contactors and motor-starters
- IEC/EN 60947-5: Control circuit devices and switching elements
- IEC 60947-5: Control circuit devices and switching elements — IEC edition
- EN 60947-4: European standard for contactors and motor-starters
- EN 60947-5: European standard for control circuit devices and switching elements
- IEC 60335-2: Safety of household and similar electrical appliances — particular requirements
- CSA: Canadian Standards Association — certified for use in North American markets
Applications & Use Cases
- Control circuit switching in industrial automation systems and machine tools
- Building services management including HVAC, lighting control, and pumping systems
- Auxiliary switching functions in motor starter and control panel assemblies
- Compact relay applications requiring DIN rail or wall-mount installation
- Interlocking and signal switching in PLC-driven control architectures
Frequently Asked Questions
What is the coil voltage of the K6-22Z-80?
The ABB K6-22Z-80 contactor relay operates on a 220–240 V AC coil, making it compatible with standard single-phase mains voltages across Europe and many other markets.
Can the K6-22Z-80 be mounted on a DIN rail?
Yes. The K6-22Z-80 supports both DIN rail and direct wall mounting, offering flexible installation options for various panel configurations.
What is the contact configuration of the K6-22Z-80?
The relay features a 4-pole configuration with 2 normally open (NO) and 2 normally closed (NC) contacts, providing versatile switching capability for control circuits.
