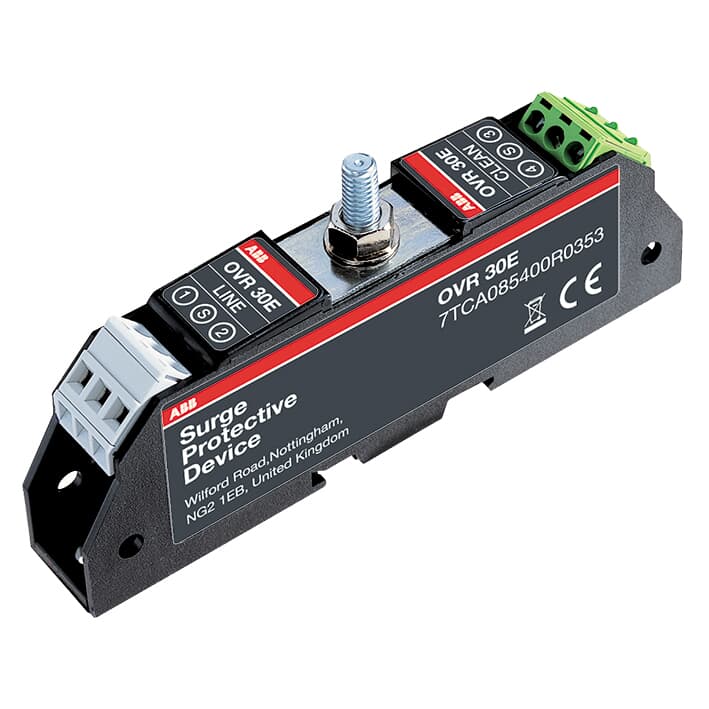

ABB 7TCA085400R0353 OVR 30E 30V 10kA 1P Surge Protective Device (SPD)

% $-231.91
ABB 7TCA085400R0353 OVR 30E Surge Protective Device – 30V, 10kA discharge, 1P
ABB 7TCA085400R0353 OVR 30E Surge Protective Device – 30V, 10kA discharge, 1P

ABB 7TCA085400R0353 OVR 30E 30V 10kA 1P Surge Protective Device (SPD)

Brand: ABB
Reference No: 7TCA085400R0353
Catalog No: OVR 30E
Series: ABB OVR data & signal protection
Tariff Code (HS): 853540
Rated Voltage: 30 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$231.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 7TCA085400R0353 (OVR 30E) is a single-pole DIN-rail surge protective device for 30 V data and signal lines, built for continuous operation up to 37.1 V. It handles a maximum discharge current of 10 kA (8/20 µs) and limits the voltage protection level to 43.5 V, shielding signal circuits carrying up to 300 mA from transient overvoltages caused by lightning and switching events.

Technical Specifications

Catalog Designation OVR 30E
SKU 7TCA085400R0353
Brand ABB
Series ABB OVR data & signal protection
EAN 5415022375473
Nominal AC Voltage of System (Uo) 30 V
Maximum Continuous Operating Voltage (Uc) 37.1 V
Discharge Current (I max, 8/20 µs) 10 kA
Voltage Protection Level (Up) 43.5 V
Rated Current (In) 300 mA
Rated Frequency (f) 45 MHz
Number of Protected Poles 1
Connection Type Screw Clamp
Serial Resistance 1 Ω
Wire Stripping Length 6 mm
Ambient Air Temperature (Operation) -40 to +80 °C
Net Width 120 mm
Net Height 54 mm
Net Depth 19 mm
Net Weight 0.08 kg

Certifications & Standards

  • IEC 61643-21

Selection Notes

With a single protected pole and a 300 mA rated current, the OVR 30E fits one 30 V signal pair where only one line pair needs transient protection. Its 1 Ω series resistance keeps insertion loss low on sensitive instrumentation loops, and the 43.5 V protection level clears the 37.1 V continuous operating voltage without clamping the signal itself. Screw-clamp termination with a 6 mm stripping length matches standard field wiring without a separate connector kit.

Technical Details

Short Description
ABB OVR 30E single-pole 30V DIN-rail surge protective device, 10kA discharge current, 43.5V protection level, screw-clamp terminals.
Rated Voltage (VAC)
30 V
Mounting Type
DIN-Rail
Catalog No
OVR 30E
Number of Poles
1P
Standards
IEC 61643-21
Delivery Date (Days)
30 days
Model Number
OVR 30E
Tariff Code
853540
