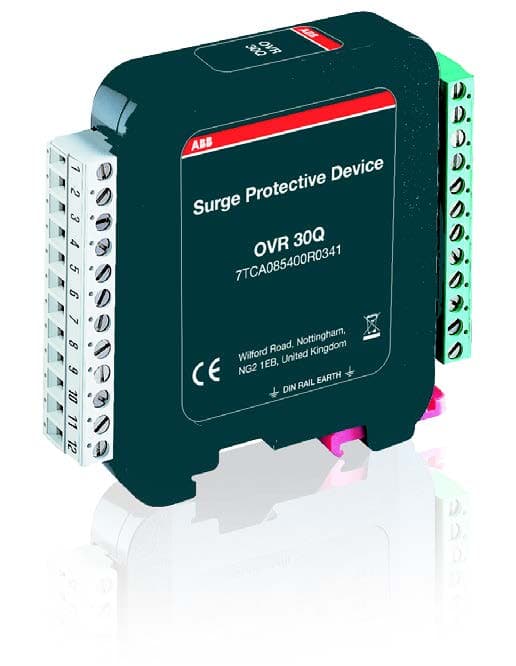

ABB 7TCA085400R0341 OVR 30Q 30V 750mA 1P Surge Protective Device (SPD)

% $-684.53
ABB 7TCA085400R0341 OVR 30Q Surge Protective Device – 30V, 8-wire, 750mA
ABB 7TCA085400R0341 OVR 30Q Surge Protective Device – 30V, 8-wire, 750mA

ABB 7TCA085400R0341 OVR 30Q 30V 750mA 1P Surge Protective Device (SPD)

Brand: ABB
Reference No: 7TCA085400R0341
Catalog No: OVR 30Q
Series: ABB OVR data & signal protection
Tariff Code (HS): 853540
Rated Voltage: 30 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$684.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 7TCA085400R0341 (OVR 30Q) protects 30 V, 8-wire (4-pair) signal lines with a space-saving single-module DIN-rail design. It carries a 750 mA rated current, clamps transients to a 43.5 V protection level, and discharges up to 10 kA (8/20 µs), guarding multi-pair data cabling against lightning and switching surges.

Technical Specifications

Catalog Designation OVR 30Q
SKU 7TCA085400R0341
Brand ABB
Series ABB OVR data & signal protection
EAN 5415022375497
Nominal AC Voltage of System (Uo) 30 V
Maximum Continuous Operating Voltage (Uc) 37.8 V
Discharge Current (I max, 8/20 µs) 10 kA
Voltage Protection Level (Up) 43.5 V
Rated Current (In) 750 mA
Rated Frequency (f) 6 MHz
Number of Protected Poles 1
Connection Type Screw Clamp
Serial Resistance 1 Ω
Wire Stripping Length 8 mm
Ambient Air Temperature (Operation) -40 to +80 °C
Net Width 87 mm
Net Height 95 mm
Net Depth 18 mm
Net Weight 0.1 kg

Certifications & Standards

  • IEC 61643-21

Selection Notes

The 8-wire (4-pair) protection scheme covers a full multi-pair signal cable on one device instead of wiring four single-pair units. Its 750 mA rated current and 6 MHz rated frequency suit higher-pair-count data buses without materially loading the line, and the 37.8 V continuous operating voltage leaves headroom below the 43.5 V protection level for a nominal 30 V system. Screw-clamp terminals with an 8 mm stripping length keep field wiring consistent with other OVR data-line models.

Technical Details

Short Description
ABB OVR 30Q single-pole 30V DIN-rail surge protective device for 8-wire signal lines, 750mA rated current, space-saving design.
Rated Voltage (VAC)
30 V
Mounting Type
DIN-Rail
Catalog No
OVR 30Q
Number of Poles
1P
Standards
IEC 61643-21
Delivery Date (Days)
30 days
Model Number
OVR 30Q
Tariff Code
853540
