ABB 68490308 FOCH0260-70 du/dt Filter IP00 145-293 A VFD Accessory

% $-1,460.50

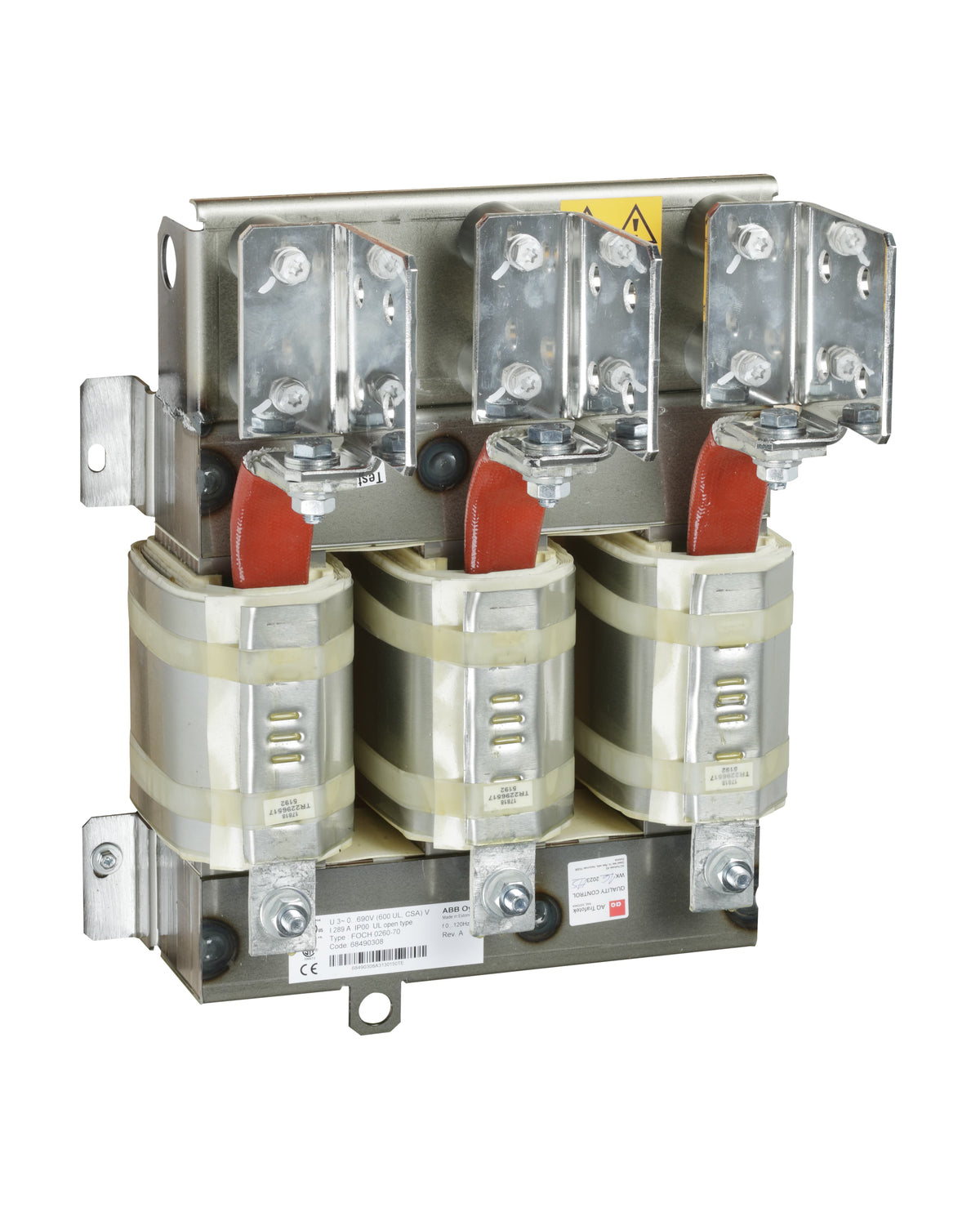

ABB 68490308 FOCH0260-70 du/dt output filter, IP00
ABB 68490308 FOCH0260-70 du/dt output filter, IP00

ABB 68490308 FOCH0260-70 du/dt Filter IP00 145-293 A VFD Accessory

Brand: ABB
Reference No: 68490308
Catalog No: FOCH0260-70
Series: FOCH - du/dt filter
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,460.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 68490308, type code FOCH0260-70, is a du/dt output filter in an IP00 enclosure that protects motor winding insulation and reduces capacitive leakage and bearing currents on long or unscreened motor cables. It weighs 58 kg and is listed against ABB's 145A-3...293A-3 drive range, i.e. ACS880 units rated 145-293 A at the 380-415 V supply class.

Technical Specifications

Order code 68490308
Type code FOCH0260-70
Brand ABB
Series FOCH - du/dt filter
EAN 6438177308683
Classification Drive Options - Filter Options
Degree of protection IP00
Compatible drive current range 145-293 A
Net weight 58 kg
Dimensions (W x H x D) 400 x 390 x 470 mm

Selection Notes

Fit the FOCH0260-70 between the drive and motor when the motor insulation system or cable length is not rated for the drive's output du/dt without added filtering, particularly on long cable runs common in retrofits. Because it ships IP00, it has to be mounted inside a cabinet or enclosure rather than exposed, and at 58 kg the enclosure's base and fixing points need to be sized for that mass in addition to the drive itself.

Technical Details

Short Description
ABB FOCH0260-70 du/dt output filter, IP00, 58 kg, for ACS880 drives rated 145-293 A, protects motor insulation.
Protection Type
IP00
Catalog No
FOCH0260-70
Delivery Date (Days)
30 days
Model Number
FOCH0260-70
Tariff Code
850490

Downloads
