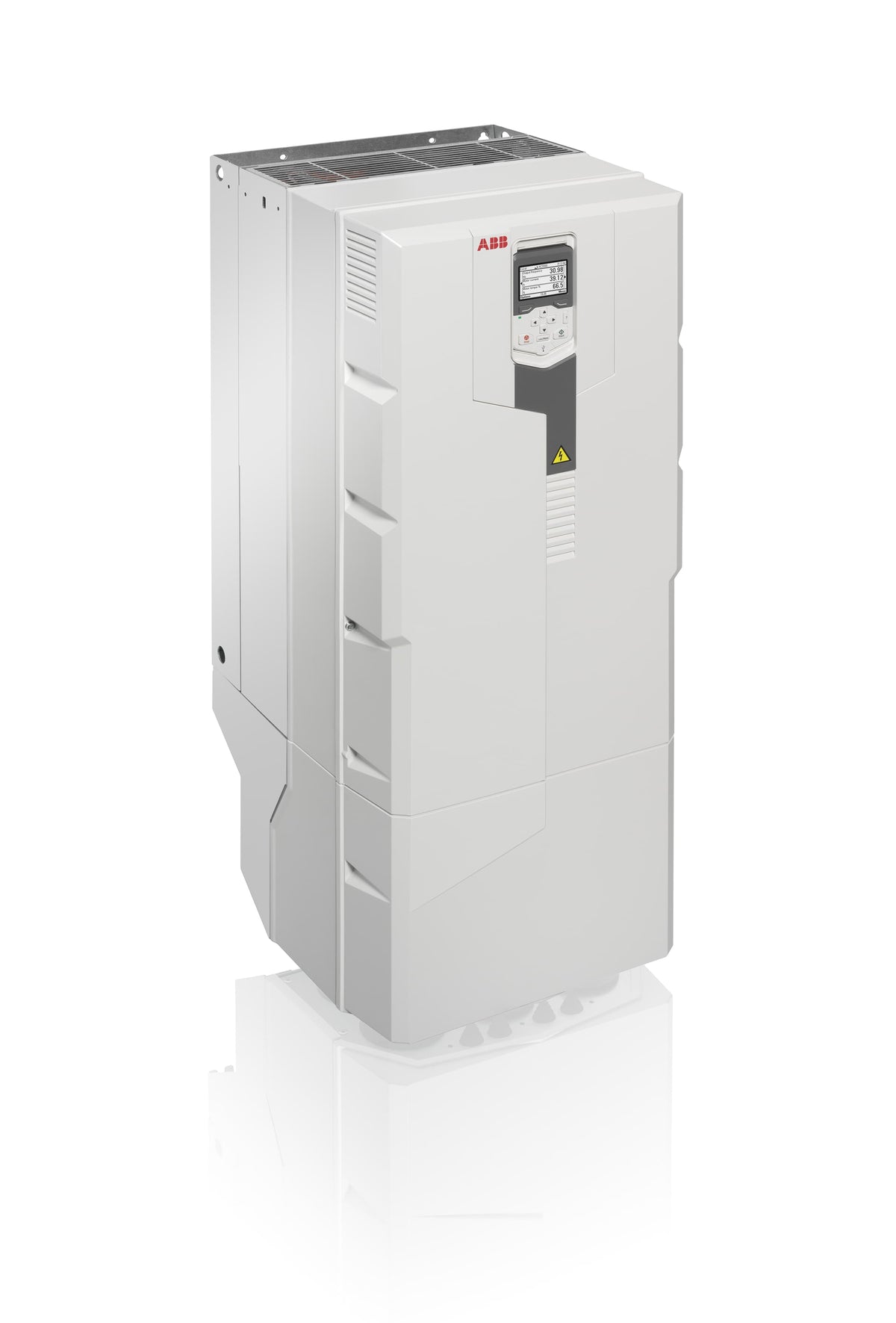

ABB 3AXD50001154585 ACS580-01-490A-4 250 kW 490 A 400 V R9 Variable Frequency Drive (VFD)

% $-12,362.50
ABB 3AXD50001154585 ACS580-01-490A-4 VFD - 250 kW 490 A IEC / 300 Hp UL
ABB 3AXD50001154585 ACS580-01-490A-4 VFD - 250 kW 490 A IEC / 300 Hp UL

ABB 3AXD50001154585 ACS580-01-490A-4 250 kW 490 A 400 V R9 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AXD50001154585
Catalog No: ACS580-01-490A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 490
Power: 250 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12,362.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AXD50001154585 is the top-current ACS580-01-490A-4 wall-mounted variable frequency drive on frame R9, rated 250 kW / 490 A under IEC and 300 Hp / 480 A at 480 V under UL, for 380-480 V three-phase, IP21 installations. It is intended for the largest motors in the ACS580-01 wall-mounted range, including dual-market IEC/UL projects.

Technical Specifications

Order code 3AXD50001154585
Type code ACS580-01-490A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177731528
Frame size R9
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn, IEC) 250 kW
Output current, normal use (In, IEC) 490 A
Output power, heavy-duty use (PHD, IEC) 200 kW
Output current, heavy-duty use (IHD, IEC) 385 A
Output power, light-overload use (PLD, IEC) 250 kW
Output current, light-overload use (ILD, IEC) 480 A
Apparent power output 339 kV*A
Power consumption 5903 W
UL output power (light- and heavy-duty) 300 Hp
UL output current (light-overload / heavy-duty) 480 A / 385 A
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 68 dB(A)
Net weight 97 kg

Selection Notes

At 490 A normal-duty this is the highest-current member of the R9-frame group in this batch, ahead of the 363 A and 430 A units; pick it only when the connected motor's full-load current genuinely requires 490 A, since the lighter R9 units share the same enclosure and weight at a lower cost. Note that the IEC rating (250 kW / 490 A) and the UL rating (300 Hp / 480 A at 480 V) are not a straight unit conversion of each other, so the correct column depends on which code the installation is certified under. Power consumption of 5903 W at this rating is the highest in the batch and should feed directly into enclosure or room cooling calculations.

Technical Details

Short Description
ABB ACS580-01-490A-4 wall-mounted VFD, 250 kW / 490 A (IEC), 300 Hp / 480 A @ 480 V (UL), IP21, frame R9.
Rated Current (Ampere)
490
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-490A-4
Power (kW)
250 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-490A-4
Tariff Code
850440
