ABB 3AXD50000192786 FEIP-21 2-Port EtherNet/IP Fieldbus Adapter VFD Accessory

% $-181.13
ABB 3AXD50000192786 FEIP-21 two-port EtherNet/IP fieldbus adapter
ABB 3AXD50000192786 FEIP-21 two-port EtherNet/IP fieldbus adapter

ABB 3AXD50000192786 FEIP-21 2-Port EtherNet/IP Fieldbus Adapter VFD Accessory

Brand: ABB
Reference No: 3AXD50000192786
Catalog No: FEIP-21
Series: FEIP - Ethernet/IP
Tariff Code (HS): 850490
Communication: EtherNet/IP, 2-port
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$181.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

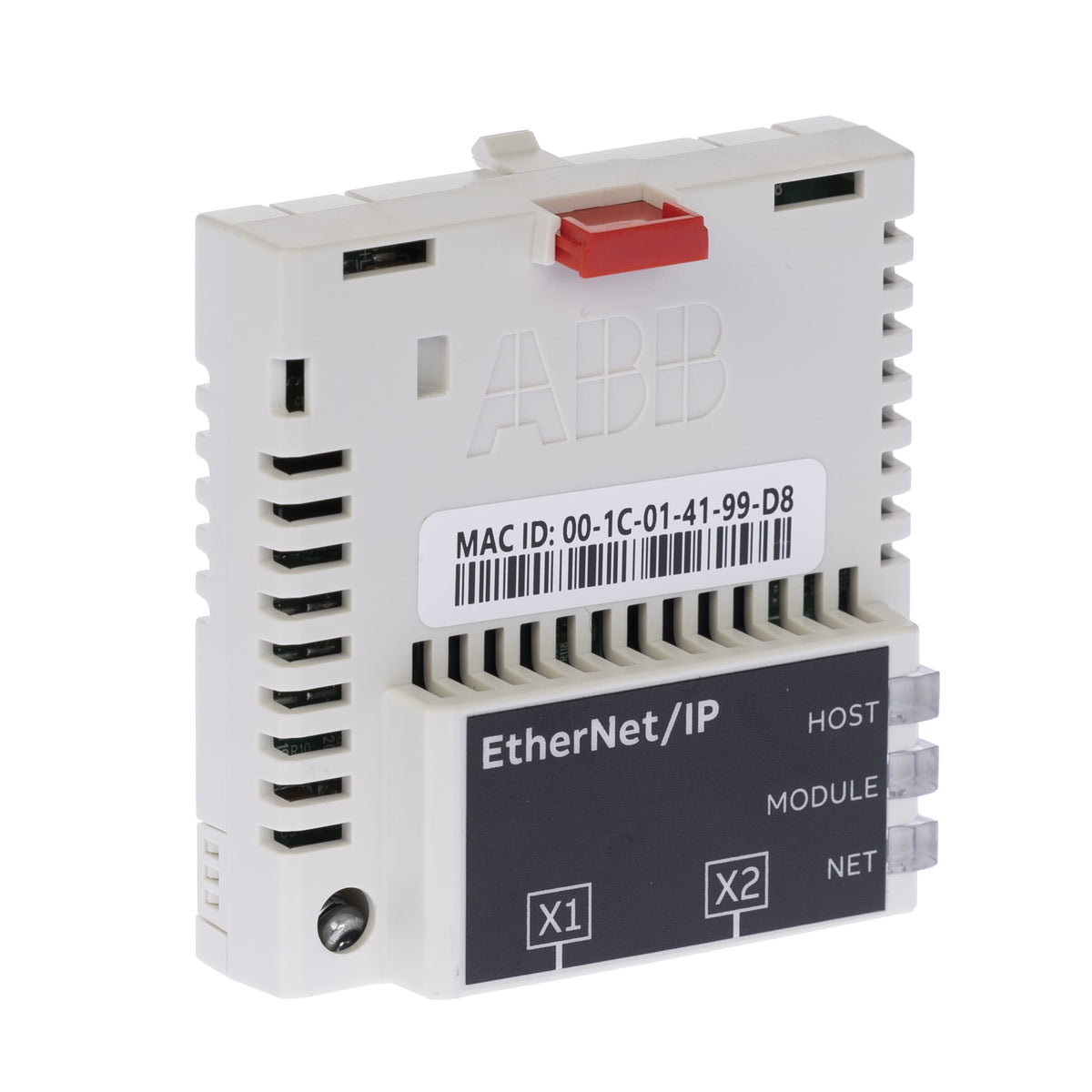

The ABB 3AXD50000192786 FEIP-21 is a two-port EtherNet/IP adapter that plugs into the drive's fieldbus option slot, giving ACS580, ACH580 and ACQ580 drives native EtherNet/IP connectivity to a PLC or SCADA system. It weighs 0.048 kg and measures 64 x 67 x 27 mm, EAN 6438177508311, with two ports supporting a daisy-chain network topology between drives.

Technical Specifications

Order Code 3AXD50000192786
Type Code FEIP-21
Brand ABB
Series FEIP - Ethernet/IP
EAN 6438177508311
Net Weight 0.048 kg
Length 27 mm
Height 67 mm
Width 64 mm
Protocol EtherNet/IP, 2-port

Selection Notes

Pick the FEIP-21 for EtherNet/IP networks specifically - the two-port design allows a daisy chain between drives without a separate switch, which the single-port adapters elsewhere in this family do not support. For a BACnet/IP building system or a different industrial protocol, the other two-port and single-port adapters in this catalog cover those cases instead.

Technical Details

Short Description
ABB 3AXD50000192786 FEIP-21 - two-port EtherNet/IP fieldbus adapter for ACS580/ACH580/ACQ580 drives, 0.048 kg.
Mounting Type
Plug-in (drive fieldbus adapter slot)
Catalog No
FEIP-21
Delivery Date (Days)
30 days
Model Number
FEIP-21
Tariff Code
850490
