ABB 3AXD50000105335 R3 FLANGE KIT 728x327x155 mm 3.571 kg VFD Accessory

% $-195.50
ABB 3AXD50000105335 R3 FLANGE KIT through-panel mounting flange - 3.571 kg
ABB 3AXD50000105335 R3 FLANGE KIT through-panel mounting flange - 3.571 kg

ABB 3AXD50000105335 R3 FLANGE KIT 728x327x155 mm 3.571 kg VFD Accessory

Brand: ABB
Reference No: 3AXD50000105335
Catalog No: 3AXD50000105335
Series: Flange kit
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$195.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

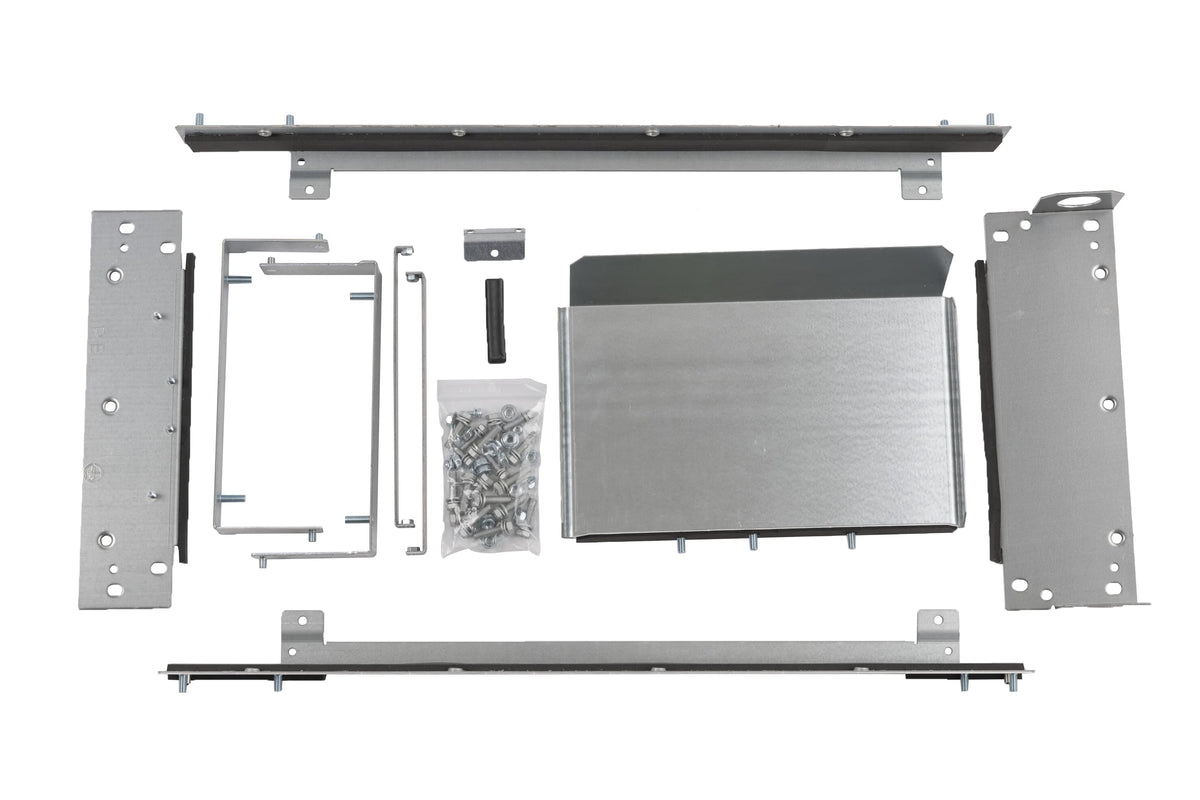

The ABB 3AXD50000105335 R3 FLANGE KIT is the through-panel mounting flange for the R3 frame of ACS580, ACH580 and ACQ580 drives, letting the drive's heatsink pass through the enclosure wall so the cabinet interior stays clear of that heat load. The complete kit weighs 3.571 kg, EAN 6438177533818, and shares the family's 155 x 327 x 728 mm outer footprint, though the mounting hardware is matched specifically to this frame.

Technical Specifications

Order Code 3AXD50000105335
Type Code R3 FLANGE KIT
Brand ABB
Series Flange kit (Drive Options)
EAN 6438177533818
Net Weight 3.571 kg
Length 155 mm
Height 327 mm
Width 728 mm

Selection Notes

Order the R3 kit only for drives built on the R3 frame - the flange hole pattern and weight (3.571 kg) are specific to that frame and are not interchangeable with the R1 or R2 kits. As with the rest of this family, the flange is what carries the drive's heat path through the cabinet wall, so the cut-out must match the kit's footprint.

Technical Details

Short Description
ABB 3AXD50000105335 R3 FLANGE KIT - through-panel mounting flange for ACS580/ACH580/ACQ580 R3-frame drives, 3.571 kg.
Mounting Type
Flange / through-panel mounting kit
Catalog No
3AXD50000105335
Delivery Date (Days)
30 days
Model Number
3AXD50000105335
Tariff Code
850490
