ABB 3AXD50000105328 R2 FLANGE KIT 728x327x155 mm 2.502 kg VFD Accessory

% $-178.25

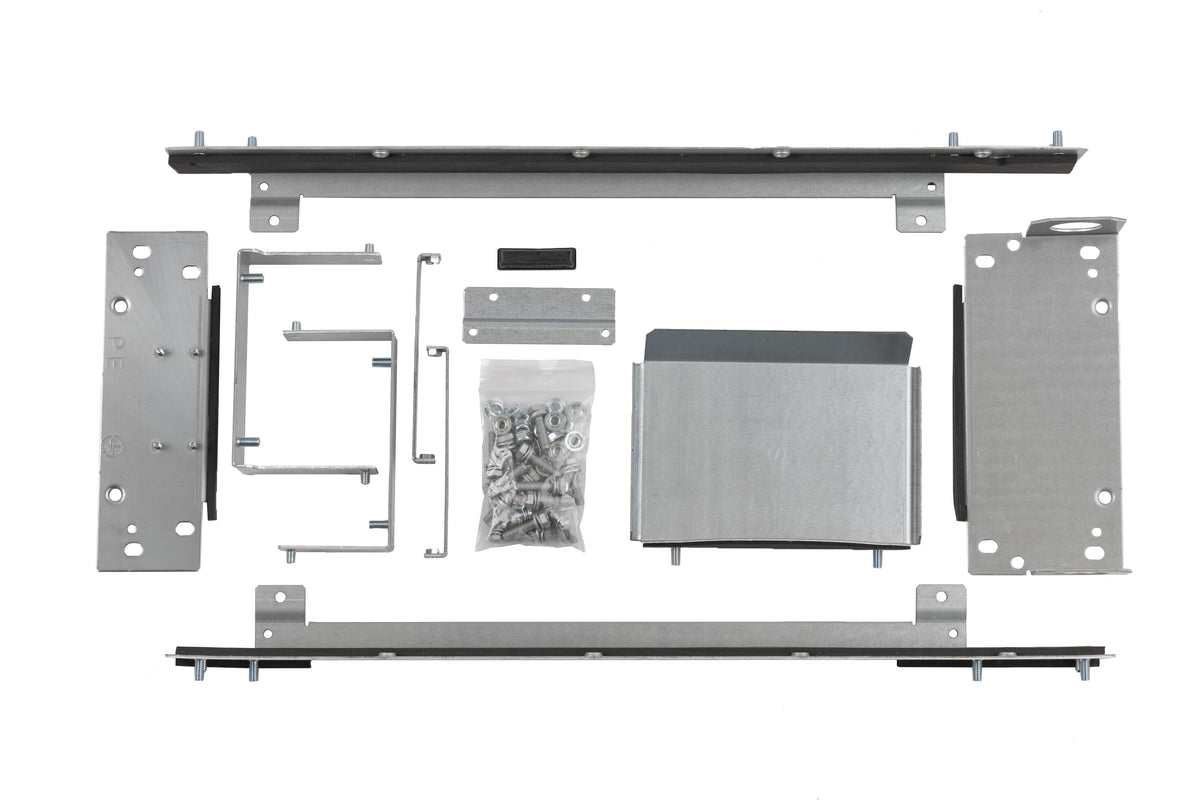

ABB 3AXD50000105328 R2 FLANGE KIT through-panel mounting flange - 2.502 kg
ABB 3AXD50000105328 R2 FLANGE KIT through-panel mounting flange - 2.502 kg

ABB 3AXD50000105328 R2 FLANGE KIT 728x327x155 mm 2.502 kg VFD Accessory

Brand: ABB
Reference No: 3AXD50000105328
Catalog No: 3AXD50000105328
Series: Flange kit
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$178.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AXD50000105328 R2 FLANGE KIT is a through-panel mounting flange sized for the R2 frame of ACS580, ACH580 and ACQ580 drives, carrying the drive's heatsink through the cabinet wall for external cooling. The complete kit weighs 2.502 kg, EAN 6438177533801, and uses the same 155 x 327 x 728 mm outer envelope as the rest of this flange kit family.

Technical Specifications

Order Code 3AXD50000105328
Type Code R2 FLANGE KIT
Brand ABB
Series Flange kit (Drive Options)
EAN 6438177533801
Net Weight 2.502 kg
Length 155 mm
Height 327 mm
Width 728 mm

Selection Notes

Specify the R2 kit for drives in the R2 frame - the weight and flange dimensions differ from the R1 and R3 kits even though the cabinet cut-out principle is identical, so the drive's frame size decides which kit fits, not the motor power. Check the cabinet door or gland-plate clearance against the flange footprint before ordering.

Technical Details

Short Description
ABB 3AXD50000105328 R2 FLANGE KIT - through-panel mounting flange for ACS580/ACH580/ACQ580 R2-frame drives, 2.502 kg.
Mounting Type
Flange / through-panel mounting kit
Catalog No
3AXD50000105328
Delivery Date (Days)
30 days
Model Number
3AXD50000105328
Tariff Code
850490
