ABB 3AXD50000038962 ACS580-01-039A-4 18.5 kW 38 A 400 V R3 Variable Frequency Drive (VFD)

% $-1,270.75

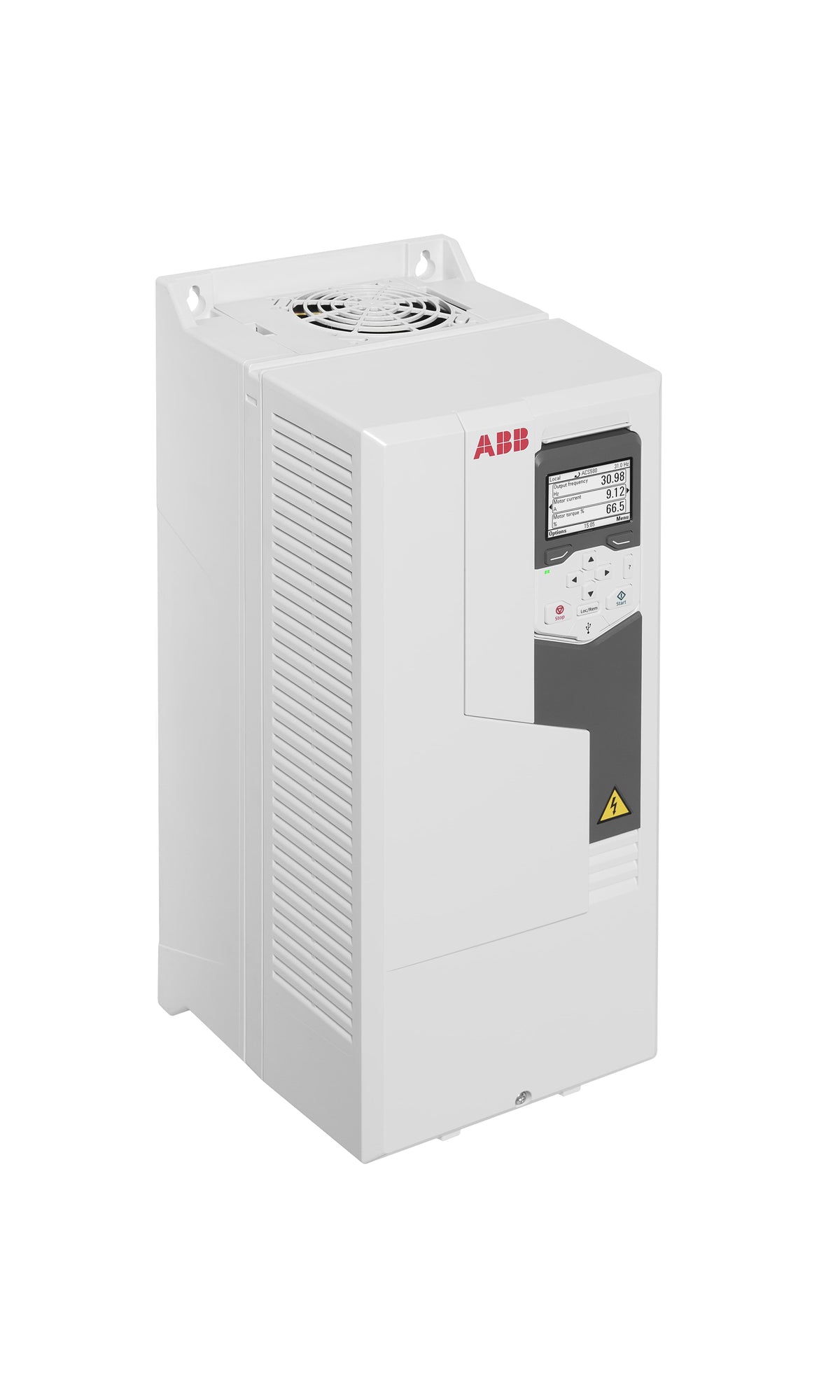

ABB 3AXD50000038962 ACS580-01-039A-4 VFD - 18.5 kW 38 A 400 V
ABB 3AXD50000038962 ACS580-01-039A-4 VFD - 18.5 kW 38 A 400 V

ABB 3AXD50000038962 ACS580-01-039A-4 18.5 kW 38 A 400 V R3 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AXD50000038962
Catalog No: ACS580-01-039A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 38
Power: 18.5 kW
Rated Voltage: 380/480 V AC
Communication: RS-485 (Modbus RTU) built-in; EtherNet/IP, PROFINET IO, PROFIBUS, DeviceNet, CAN via adapter options
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,270.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 18.5 kW and 38 A on a 400 V supply, the ABB ACS580-01-039A-4 (order code 3AXD50000038962) is a wall-mounted general purpose AC drive in IP21 frame R3, suited to compressors, conveyors, pumps, extruders and fans. It accepts a 380-480 V three-phase, 47.5-63 Hz supply and includes onboard RS-485 (Modbus RTU) and USB for the PC tool.

Technical Specifications

Order Code 3AXD50000038962
Type Code ACS580-01-039A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
Frame Size R3
Supply Voltage 380-480 V AC, 3-phase
Frequency 47.5-63 Hz
Output Current, Normal Use (In) 38 A
Output Current, Light-Overload (ILD) 36.1 A
Output Current, Heavy-Duty (IHD) 31.6 A
Output Power, Normal Use (Pn) 18.5 kW
Output Power, Light-Overload (PLD) 18.5 kW
Output Power, Heavy-Duty (PHD) 15.0 kW
Apparent Power Output 26 kVA
Power Consumption 523 W
Efficiency Level IE2
Standby Loss 16 W
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Analog I/O 2 AI, 2 AO
Digital I/O 6 DI, 3 DO
Built-in Serial Interface 1x RS-485, 1x USB
Net Weight 11.8 kg
Dimensions (L x H x W) 229 x 490 x 203 mm
EAN 6438177459279

Selection Notes

Sitting between the two other R3-frame ratings in this lineup, this variant's heavy-duty rating (15.0 kW/31.6 A) still leaves a clear margin below the 38 A normal-use current, useful when starting torque spikes above the steady running load. Choose the lower-current R3 variant for lighter loads, or the higher-current one once demand consistently approaches the 36.1 A light-overload limit.

Technical Details

Short Description
ABB ACS580-01-039A-4, 18.5 kW / 38 A / 400 V wall-mounted AC drive, IP21 frame R3.
Rated Current (Ampere)
38
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted, Frame R3
Protection Type
IP21 (NEMA Type 1)
Catalog No
ACS580-01-039A-4
Power (kW)
18.5 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-039A-4
Tariff Code
850440
