ABB 3AXD50000038960 ACS580-01-026A-4 11 kW 25 A 400 V R2 Variable Frequency Drive (VFD)

% $-908.50

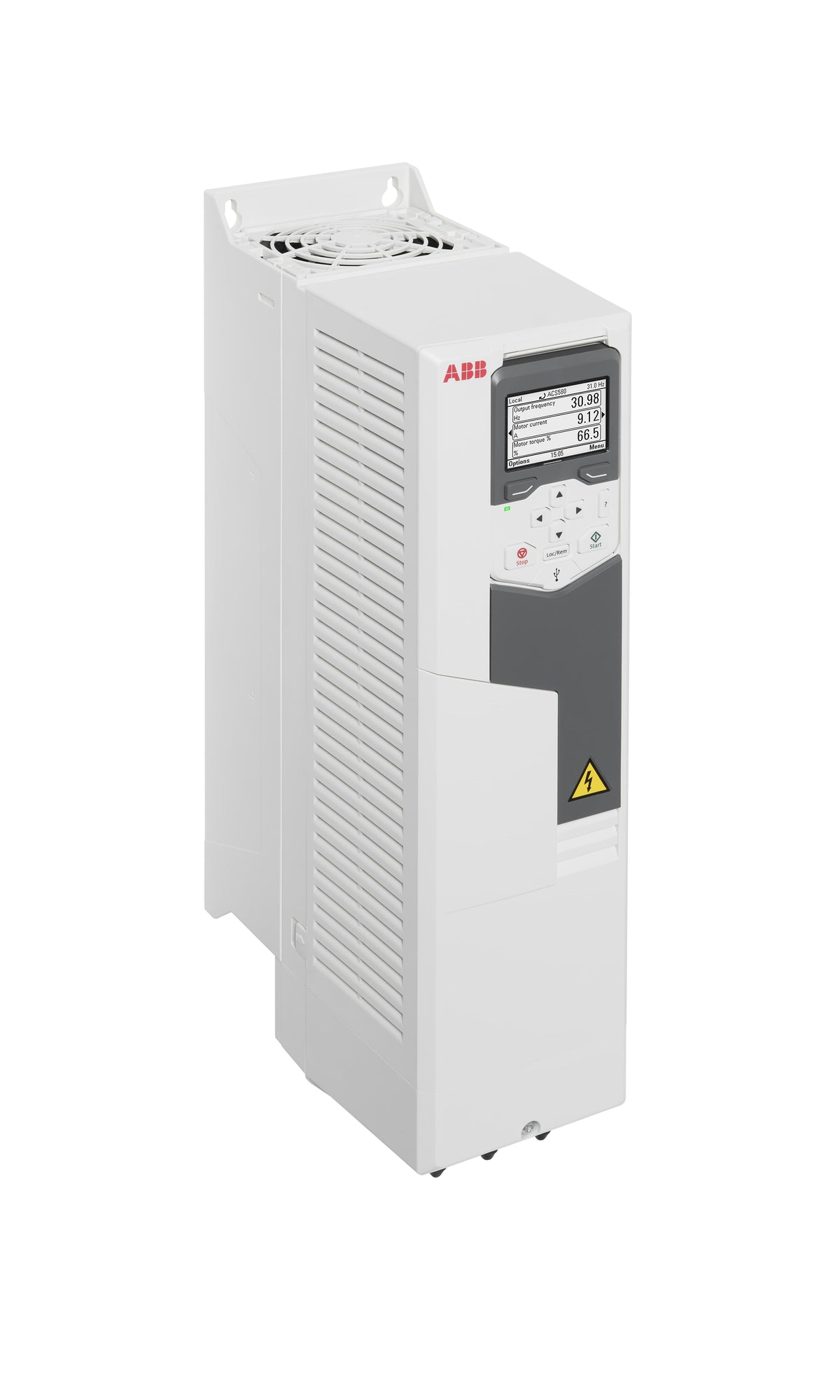

ABB 3AXD50000038960 ACS580-01-026A-4 VFD - 11 kW 25 A 400 V
ABB 3AXD50000038960 ACS580-01-026A-4 VFD - 11 kW 25 A 400 V

ABB 3AXD50000038960 ACS580-01-026A-4 11 kW 25 A 400 V R2 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AXD50000038960
Catalog No: ACS580-01-026A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 25
Power: 11 kW
Rated Voltage: 380/480 V AC
Communication: RS-485 (Modbus RTU) built-in; EtherNet/IP, PROFINET IO, PROFIBUS, DeviceNet, CAN via adapter options
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$908.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 11 kW at 25 A on a 400 V supply, the ABB ACS580-01-026A-4 (order code 3AXD50000038960) is a wall-mounted general purpose AC drive in IP21 frame R2 for compressors, conveyors, pumps, extruders and fans. It runs from a 380-480 V three-phase, 47.5-63 Hz supply and provides an onboard RS-485 port for Modbus RTU plus USB for the PC tool.

Technical Specifications

Order Code 3AXD50000038960
Type Code ACS580-01-026A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
Frame Size R2
Supply Voltage 380-480 V AC, 3-phase
Frequency 47.5-63 Hz
Output Current, Normal Use (In) 25 A
Output Current, Light-Overload (ILD) 23.8 A
Output Current, Heavy-Duty (IHD) 17.0 A
Output Power, Normal Use (Pn) 11 kW
Output Power, Light-Overload (PLD) 11.0 kW
Output Power, Heavy-Duty (PHD) 7.5 kW
Apparent Power Output 17 kVA
Power Consumption 383 W
Efficiency Level IE2
Standby Loss 15 W
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Analog I/O 2 AI, 2 AO
Digital I/O 6 DI, 3 DO
Built-in Serial Interface 1x RS-485, 1x USB
Net Weight 6.6 kg
Dimensions (L x H x W) 229 x 473 x 125 mm
EAN 6438177459255

Selection Notes

Within the R2 frame in this lineup, this is the higher-rated of the two units; its heavy-duty rating (7.5 kW/17.0 A) still falls well short of the normal-use figures, so oversizing for heavy-duty applications remains necessary even at this current. Past the light-overload rating of 23.8 A, move to the next larger frame rather than relying on the normal-use 25 A continuous rating.

Technical Details

Short Description
ABB ACS580-01-026A-4, 11 kW / 25 A / 400 V wall-mounted AC drive, IP21 frame R2.
Rated Current (Ampere)
25
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted, Frame R2
Protection Type
IP21 (NEMA Type 1)
Catalog No
ACS580-01-026A-4
Power (kW)
11 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-026A-4
Tariff Code
850440
