ABB 3AXD50000038952 ACS580-01-09A5-4 4 kW 9.4 A 400 V R1 Variable Frequency Drive (VFD)

% $-598.00

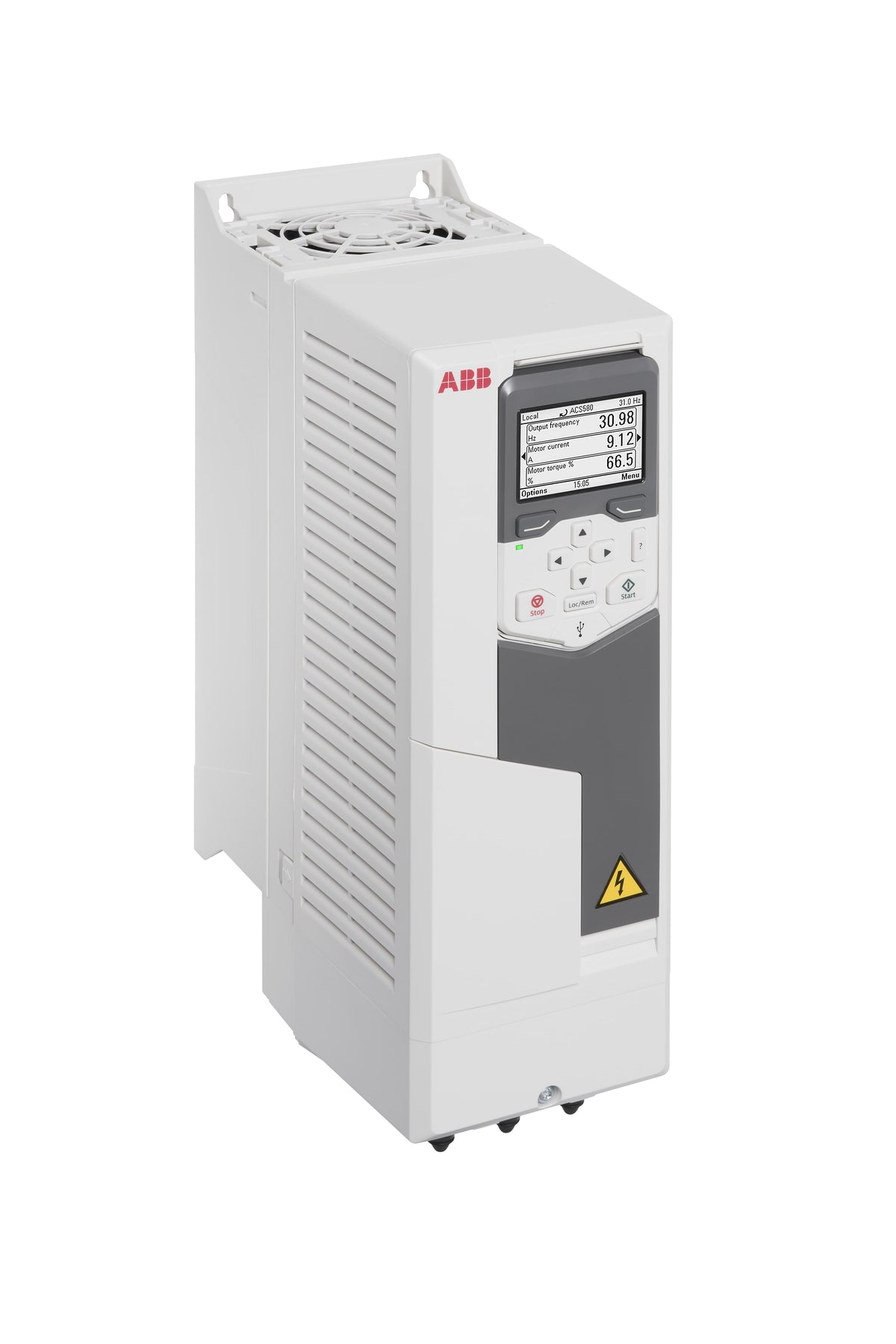

ABB 3AXD50000038952 ACS580-01-09A5-4 VFD - 4 kW 9.4 A 400 V
ABB 3AXD50000038952 ACS580-01-09A5-4 VFD - 4 kW 9.4 A 400 V

ABB 3AXD50000038952 ACS580-01-09A5-4 4 kW 9.4 A 400 V R1 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AXD50000038952
Catalog No: ACS580-01-09A5-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 9.4
Power: 4 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$598.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 3AXD50000038952 is an ACS580-01-09A5-4 wall-mounted variable frequency drive sized for a 4 kW motor at 9.4 A, housed in a compact frame R1, IP21 enclosure for 380-480 V three-phase supply. It ships with a built-in control panel and PC connection port, and it is intended for variable- and constant-torque loads such as pumps, fans and conveyors without extra hardware.

Technical Specifications

Order code 3AXD50000038952
Type code ACS580-01-09A5-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177459224
Frame size R1
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 4 kW
Output current, normal use (In) 9.4 A
Output power, heavy-duty use (PHD) 3.0 kW
Output current, heavy-duty use (IHD) 7.2 A
Output power, light-overload use (PLD) 4.0 kW
Output current, light-overload use (ILD) 8.9 A
Apparent power output 6.5 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 59 dB(A)
Standby loss 14 W
Net weight 4.6 kg
Dimensions (W x H x D) 125 x 373 x 223 mm

Selection Notes

At 4 kW / 9.4 A this is the smallest-current member of this ACS580-01 batch, built on the R1 frame shared with other low-power variants in the family; pick it when the connected motor's full-load current sits near 9.4 A rather than a higher-current R1 unit. Its light-overload rating of 8.9 A gives a small margin above normal duty for brief load spikes, which matters more for fans and pumps with intermittent peaks than for steady centrifuge-type loads. Keep the ambient environment within the unit's IP21 rating since the enclosure is not designed for washdown or outdoor exposure.

Technical Details

Short Description
ABB ACS580-01-09A5-4 wall-mounted VFD, 4 kW, 9.4 A, IP21, frame R1, 380-480 V three-phase, built-in control panel.
Rated Current (Ampere)
9.4
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-09A5-4
Power (kW)
4 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-09A5-4
Tariff Code
850440
