ABB 3AXD50000031461 Flange kit for ACx580 R5 IP21/IP55 VFD Accessory

% $-230.00

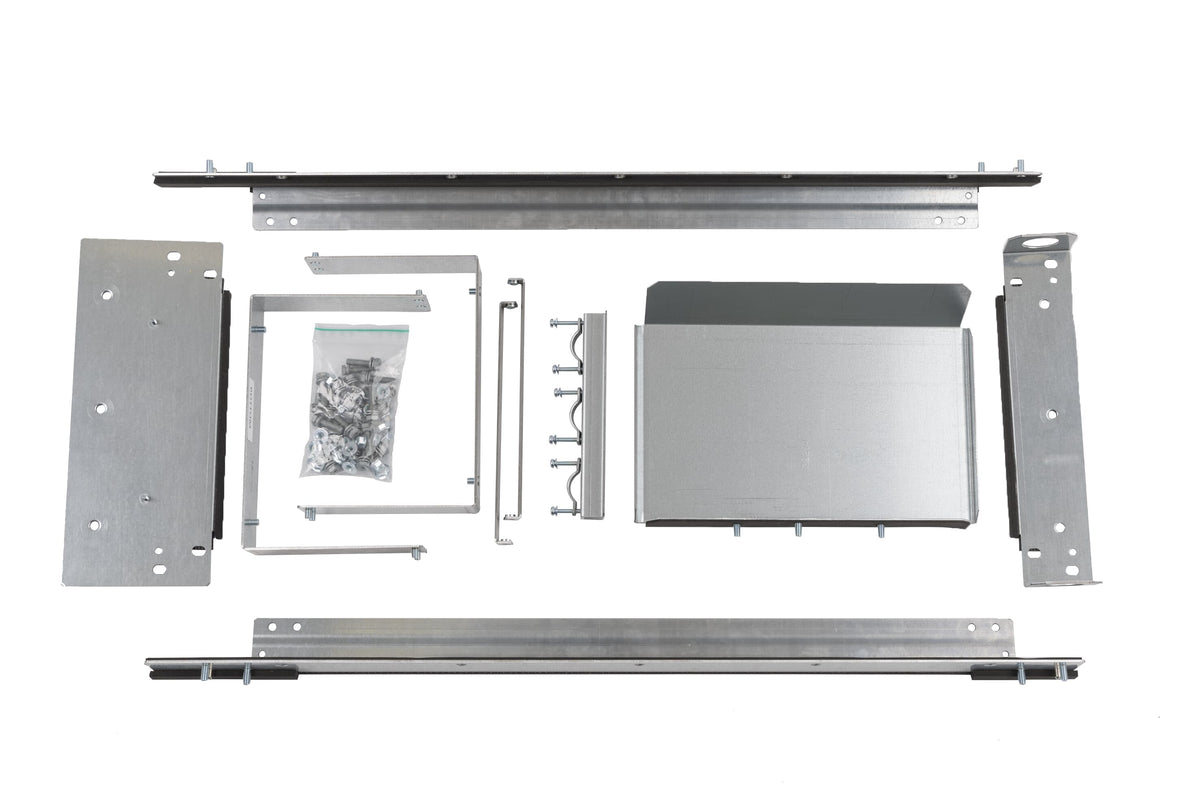

ABB 3AXD50000031461 flange kit ACx580 R5 VFD accessory - IP21/IP55
ABB 3AXD50000031461 flange kit ACx580 R5 VFD accessory - IP21/IP55

ABB 3AXD50000031461 Flange kit for ACx580 R5 IP21/IP55 VFD Accessory

Brand: ABB
Reference No: 3AXD50000031461
Catalog No: 3AXD50000031461
Series: Flange kit
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$230.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Built for ACx580 drives in frame R5, the ABB 3AXD50000031461 flange kit carries an IP21/IP55 dual rating and lets the heatsink pass through a cabinet wall while the terminals stay accessible inside. It weighs 4.86 kg and measures 295 mm deep by 839 mm wide, 5 mm taller than the R4 kit.

Technical Specifications

Order code 3AXD50000031461
Type code Flange kit for ACx580 R5
Brand ABB
Series Flange kit
Compatible drive frame ACx580 R5
Degree of protection IP21 and IP55
Net weight 4.86 kg
Net length 295 mm
Net height 83 mm
Net width 839 mm
EAN 6438177396871

Selection Notes

Use this kit on ACx580 frame R5 only; the R4 kit's flange is 5 mm shorter in height and will not seal correctly on an R5 chassis. Like the R4 kit, the IP21/IP55 dual rating means the same part works whether the panel it mounts through belongs to a standard or washdown-rated enclosure.

Technical Details

Short Description
ABB 3AXD50000031461 flange mounting kit for ACx580 frame R5 drives, IP21/IP55, 4.86 kg.
Mounting Type
Flange / through-panel mounting
Protection Type
IP21 / IP55
Catalog No
3AXD50000031461
Delivery Date (Days)
30 days
Model Number
3AXD50000031461
Tariff Code
850490
