ABB 3AXD50000018852 Flange kit for ACx580/ACS880 R6 IP21 VFD Accessory

% $-293.25

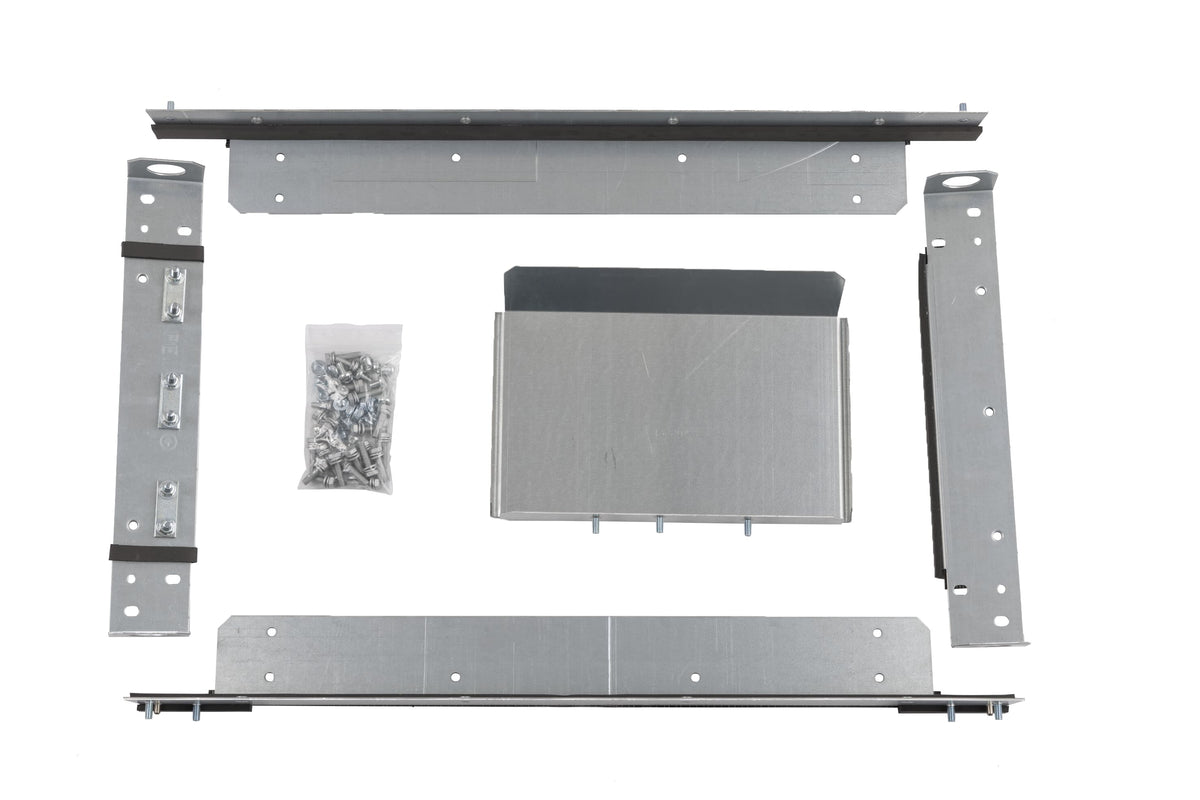

ABB 3AXD50000018852 flange kit ACx580/ACS880 R6 VFD accessory - IP21
ABB 3AXD50000018852 flange kit ACx580/ACS880 R6 VFD accessory - IP21

ABB 3AXD50000018852 Flange kit for ACx580/ACS880 R6 IP21 VFD Accessory

Brand: ABB
Reference No: 3AXD50000018852
Catalog No: 3AXD50000018852
Series: Flange kit
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$293.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AXD50000018852 is a flange mounting kit for ACx580 and ACS880 drives in frame R6, rated IP21. It lets the drive's heatsink pass through a cabinet panel so the fins sit outside the enclosure while the power and control terminals stay inside. The kit weighs 4.58 kg and measures 295 mm deep by 840 mm wide, matching the R6 chassis footprint exactly.

Technical Specifications

Order code 3AXD50000018852
Type code Flange kit for ACx580/ACS880 R6
Brand ABB
Series Flange kit
Compatible drive frame ACx580 / ACS880 R6
Degree of protection IP21
Net weight 4.58 kg
Net length 295 mm
Net height 78 mm
Net width 840 mm
EAN 6438177339694

Selection Notes

Select this kit only for ACx580 or ACS880 drives built in frame R6; the mounting flange and gasket are sized to that frame and will not fit R7-R9, which each use their own dedicated kit. Flange mounting moves the R6 heatsink outside a cabinet or wall, cutting the heat load the cabinet has to dissipate even though the drive module still needs the same depth clearance behind the panel.

Technical Details

Short Description
ABB 3AXD50000018852 flange mounting kit for ACx580/ACS880 frame R6 drives, IP21, 4.58 kg.
Mounting Type
Flange / through-panel mounting
Protection Type
IP21
Catalog No
3AXD50000018852
Delivery Date (Days)
30 days
Model Number
3AXD50000018852
Tariff Code
850490
