ABB 3AXD50000004420 CMOD-01 2xRO 1xDO 24V I/O Extension VFD Accessory

% $-186.88

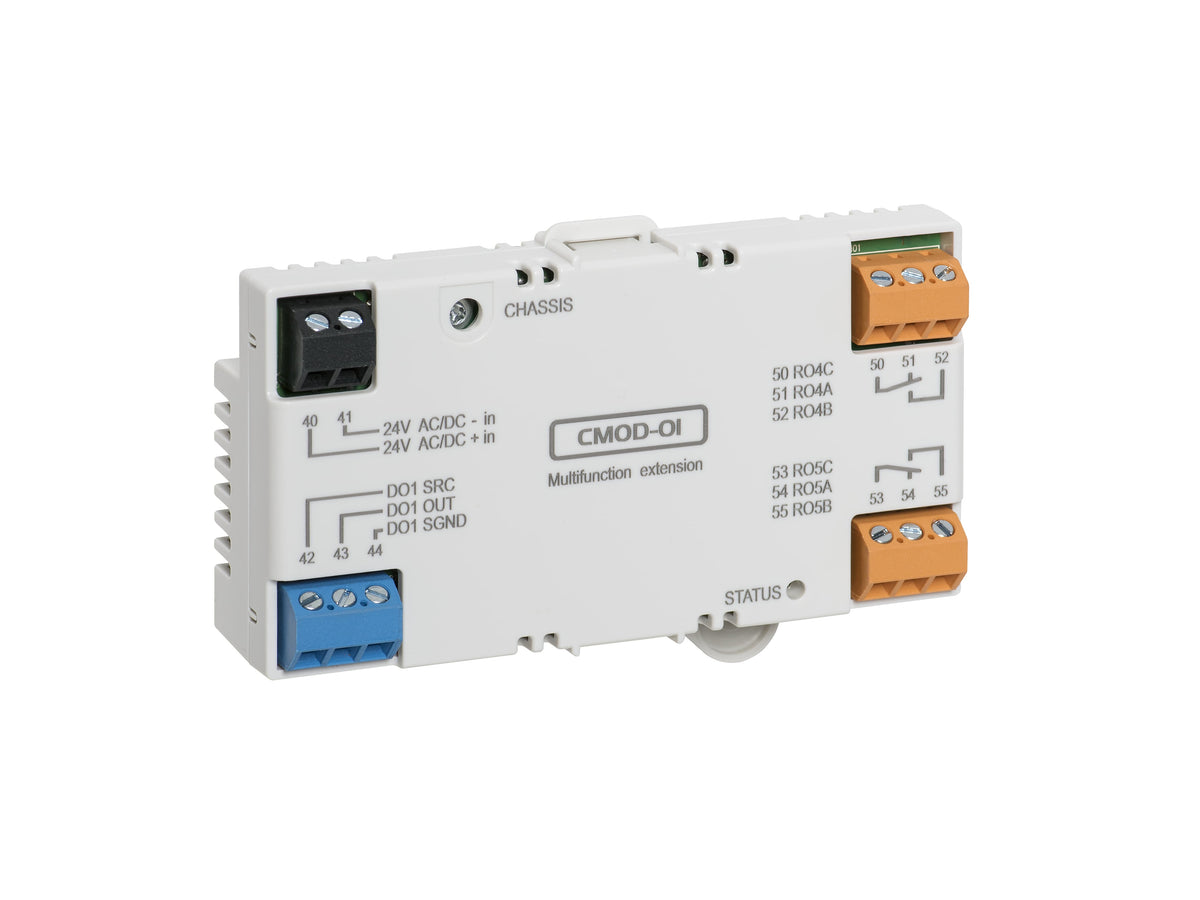

ABB 3AXD50000004420 CMOD-01 24V I/O extension module - 2xRO, 1xDO
ABB 3AXD50000004420 CMOD-01 24V I/O extension module - 2xRO, 1xDO

ABB 3AXD50000004420 CMOD-01 2xRO 1xDO 24V I/O Extension VFD Accessory

Brand: ABB
Reference No: 3AXD50000004420
Catalog No: CMOD-01
Series: CMOD-01 - External 24V and Digital I/O extension
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$186.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AXD50000004420 CMOD-01 is an external 24 V DC/AC supply and digital I/O extension module for ACS580, ACH580 and ACQ580 drives, adding two relay outputs (2xRO) and one digital output (1xDO) beyond the drive's onboard I/O. It weighs 0.133 kg and measures 109 x 75 x 31 mm overall, EAN 6438177310181.

Technical Specifications

Order Code 3AXD50000004420
Type Code CMOD-01
Brand ABB
Series CMOD-01 - External 24V and Digital I/O extension
EAN 6438177310181
Net Weight 0.133 kg
Length 31 mm
Height 75 mm
Width 109 mm
I/O Configuration 2x relay output (RO), 1x digital output (DO)

Selection Notes

Pick the CMOD-01 when the application needs extra relay and digital outputs beyond what the drive's control board already provides - the 2xRO plus 1xDO configuration suits interlocks or status signalling to external equipment. It takes its own 24 V DC/AC supply rather than drawing from the drive's internal control voltage, which keeps those outputs live even if the drive itself loses power. Where the need is an isolated PTC input instead of extra outputs, the CMOD-02 in this family covers that case.

Technical Details

Short Description
ABB 3AXD50000004420 CMOD-01 - external 24V DC/AC supply + 2xRO/1xDO digital I/O extension for ACS580/ACH580/ACQ580 drives.
Catalog No
CMOD-01
Delivery Date (Days)
30 days
Model Number
CMOD-01
Tariff Code
850490
