ABB 3AXD50000004418 CMOD-02 24V Isolated PTC Interface VFD Accessory

% $-186.88

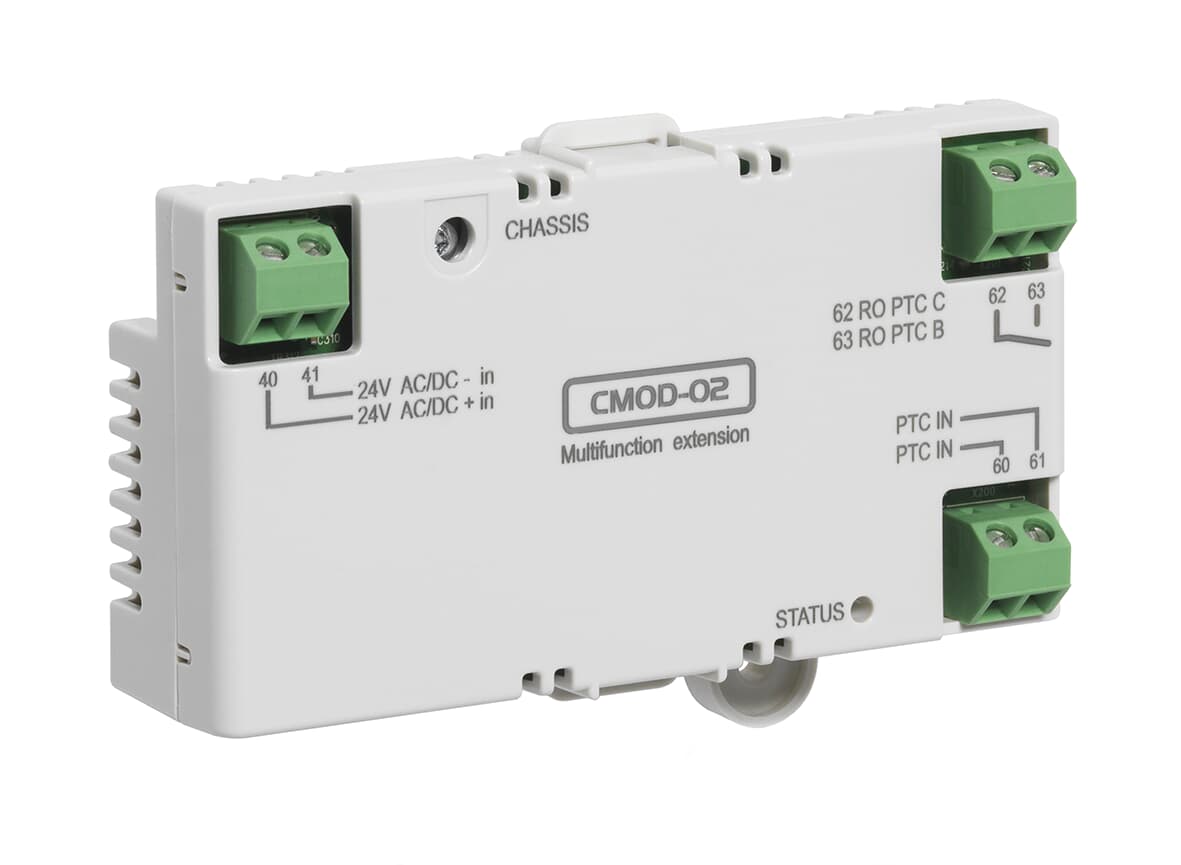

ABB 3AXD50000004418 CMOD-02 24V isolated PTC interface module
ABB 3AXD50000004418 CMOD-02 24V isolated PTC interface module

ABB 3AXD50000004418 CMOD-02 24V Isolated PTC Interface VFD Accessory

Brand: ABB
Reference No: 3AXD50000004418
Catalog No: CMOD-02
Series: CMOD-02 - External 24V and PTC interface
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$186.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AXD50000004418 CMOD-02 is an external 24 V supply and isolated PTC thermistor interface module for ACS580, ACH580 and ACQ580 drives, letting the drive read a motor's PTC temperature sensor through a galvanically isolated input. It weighs 0.183 kg and measures 109 x 75 x 32 mm overall, EAN 6438177310174.

Technical Specifications

Order Code 3AXD50000004418
Type Code CMOD-02
Brand ABB
Series CMOD-02 - External 24V and PTC interface
EAN 6438177310174
Net Weight 0.183 kg
Length 32 mm
Height 75 mm
Width 109 mm
Interface Isolated PTC thermistor input

Selection Notes

Use the CMOD-02 when the motor has a PTC thermistor and the control scheme needs that signal isolated from the drive's own control electronics - the isolation protects the drive if the motor-side wiring develops a fault. It is the PTC-interface counterpart to the CMOD-01 relay and digital output extension in this family; pick between them based on whether the application needs temperature sensing or extra outputs.

Technical Details

Short Description
ABB 3AXD50000004418 CMOD-02 - external 24V supply + isolated PTC thermistor interface for ACS580/ACH580/ACQ580 drives.
Catalog No
CMOD-02
Delivery Date (Days)
30 days
Model Number
CMOD-02
Tariff Code
850490
