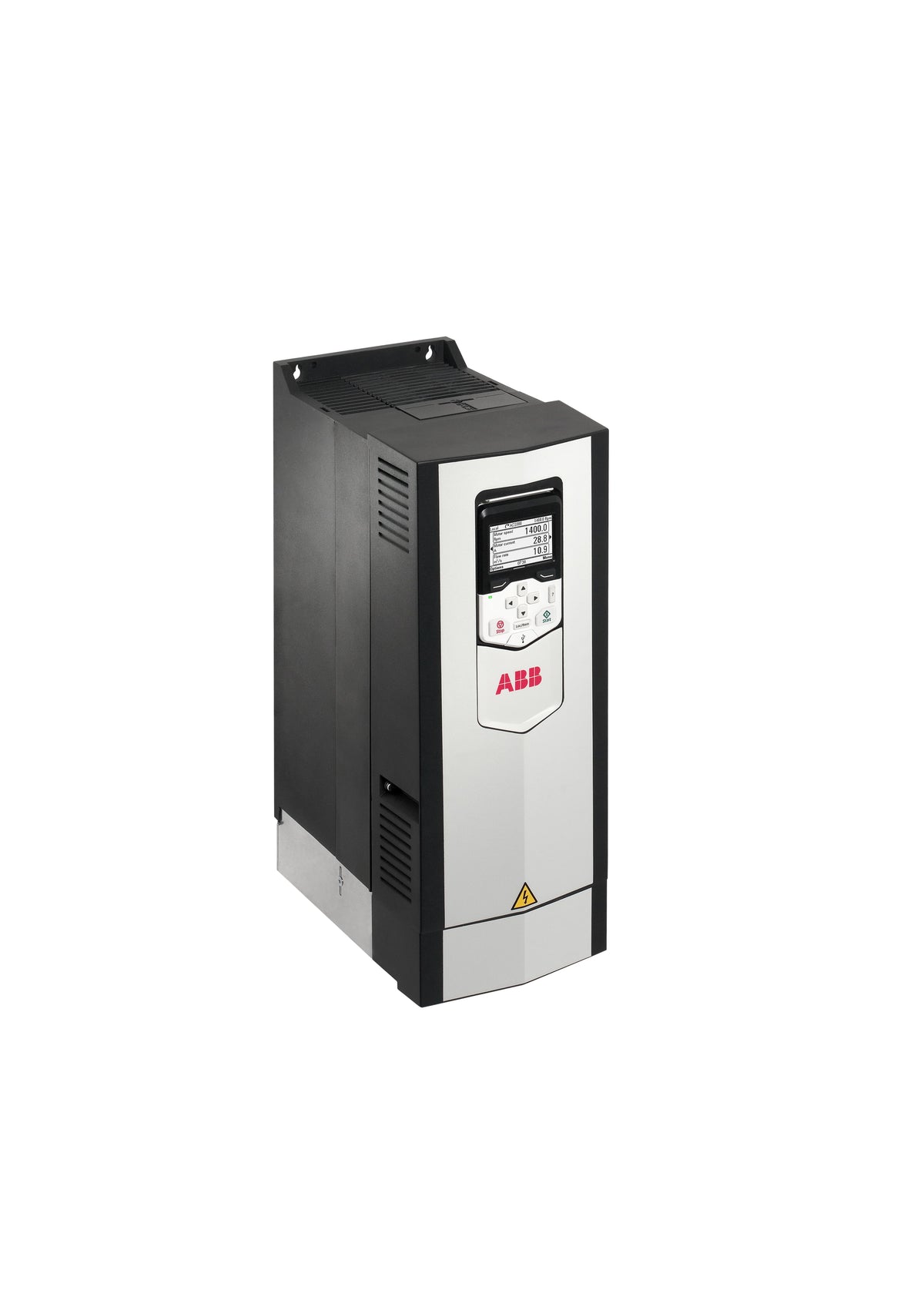

ABB 3AUA0000108019 ACS880-01-038A-3 18.5 kW 38 A 400 V R3 Variable Frequency Drive (VFD)

% $-1,564.00
ABB 3AUA0000108019 ACS880-01-038A-3 Variable Frequency Drive - 18.5 kW / 38 A
ABB 3AUA0000108019 ACS880-01-038A-3 Variable Frequency Drive - 18.5 kW / 38 A

ABB 3AUA0000108019 ACS880-01-038A-3 18.5 kW 38 A 400 V R3 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000108019
Catalog No: ACS880-01-038A-3
Series: ACS880-01 - Wall-mounted single drive
Tariff Code (HS): 850440
Rated Current: 38
Power: 18.5 kW
Rated Voltage: 380/415 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,564.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 18.5 kW at 38 A nominal output, the ABB 3AUA0000108019 is an ACS880-01-038A-3 variable frequency drive on the R3 wall-mounted frame for a 380-415 V three-phase supply. Standard features include a harmonic-filtering choke, an RS-485 port for Modbus, PROFIBUS, PROFINET, EtherNet/IP, DeviceNet and CAN, and onboard 2 analog / 8 digital I/O for direct motor control.

Technical Specifications

Order code 3AUA0000108019
Type code ACS880-01-038A-3
Brand ABB
Series ACS880-01 - Wall-mounted single drive
EAN 6438177557470
Frame Size R3
Output Power, Normal Use (Pn) 18.5 kW
Output Current, Normal Use (In) 38 A
Output Power, Heavy-Duty Use (PHD) 15.0 kW
Output Current, Heavy-Duty Use (IHD) 32 A
Input Voltage (Uin) 380-415 V
Number of Phases 3-phase
Frequency (f) 47.5-63 Hz
Apparent Power Output 26 kVA
Power Consumption 515 W
Efficiency Level IE2
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Mounting Type Wall-mounted
Communication Protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 2 DO
Sound Level 60 dB(A)
Net Weight 10.8 kg
Net Dimensions (L x W x H) 261 x 173 x 475 mm

Selection Notes

038A reads straight across to the 38 A nominal output here, with the same -01 wall-mounted build and -3 (380-415 V) class as every other ACS880-01 variant. It is the top rating on the R3 frame, sharing the 261 x 173 x 475 mm enclosure and 10.8 kg mass with the 15 kW/32 A model one step below. Choose it when a motor's running current sits near 38 A; beyond that, the 22 kW/45 A model moves to the larger R4 frame rather than pushing this one past its 32 A heavy-duty limit.

Technical Details

Short Description
ABB ACS880-01-038A-3 (3AUA0000108019), 18.5 kW / 38 A, 400 V 3-phase, R3 frame, wall-mounted VFD, IP21.
Rated Current (Ampere)
38
Rated Voltage (VAC)
380/415 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS880-01-038A-3
Power (kW)
18.5 kW
Delivery Date (Days)
30 days
Model Number
ACS880-01-038A-3
Tariff Code
850440
