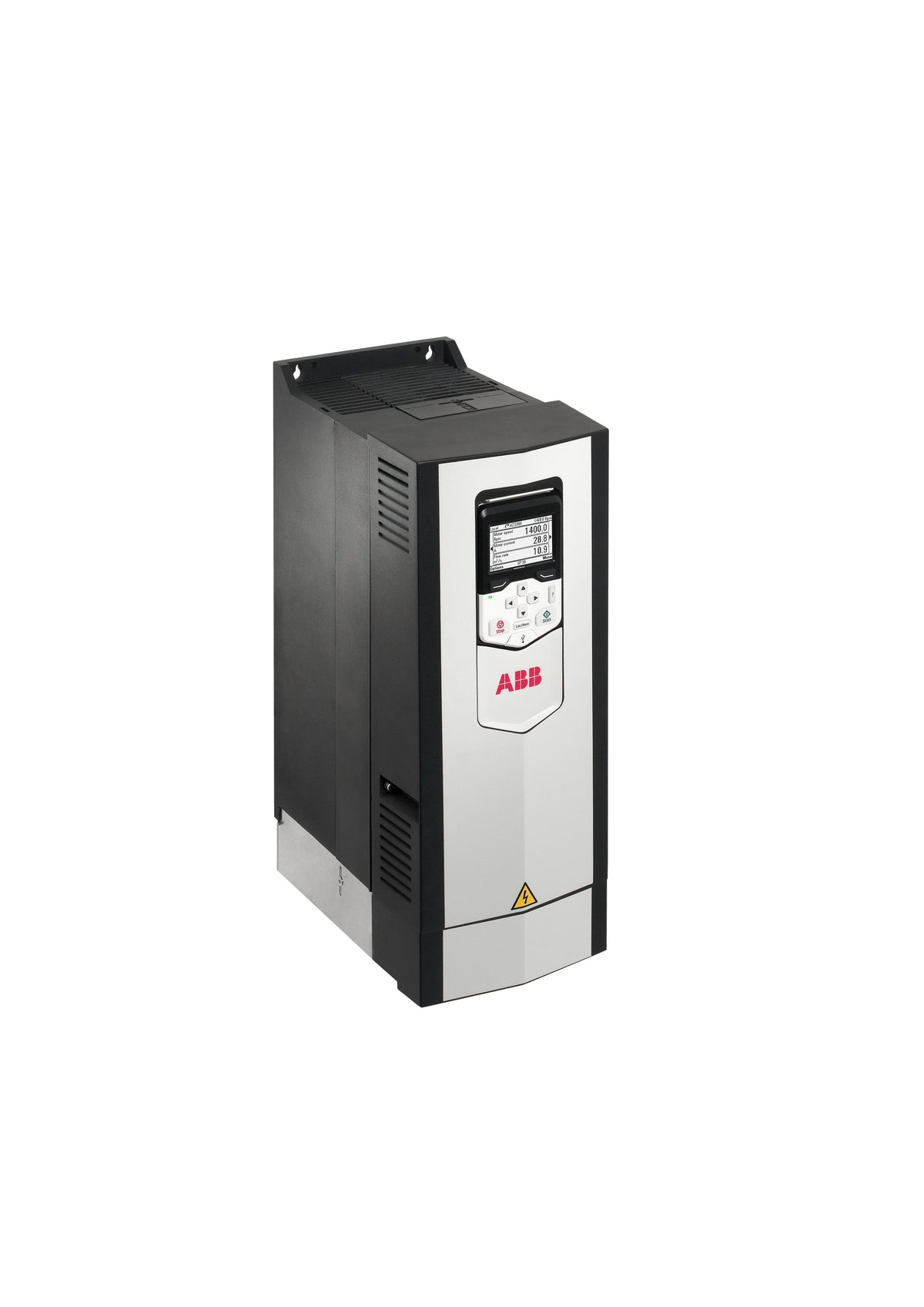

ABB 3AUA0000107993 ACS880-01-032A-3 15 kW 32 A 400 V R3 Variable Frequency Drive (VFD)

% $-1,394.38
ABB 3AUA0000107993 ACS880-01-032A-3 Variable Frequency Drive - 15 kW / 32 A
ABB 3AUA0000107993 ACS880-01-032A-3 Variable Frequency Drive - 15 kW / 32 A

ABB 3AUA0000107993 ACS880-01-032A-3 15 kW 32 A 400 V R3 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000107993
Catalog No: ACS880-01-032A-3
Series: ACS880-01 - Wall-mounted single drive
Tariff Code (HS): 850440
Rated Current: 32
Power: 15 kW
Rated Voltage: 380/415 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,394.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 3AUA0000107993 is the ACS880-01 variable frequency drive ACS880-01-032A-3, rated 15 kW motor power at 32 A nominal output on the R3 frame for a 380-415 V three-phase supply. It carries a built-in harmonic-filtering choke and an RS-485 port covering Modbus, PROFIBUS, PROFINET, EtherNet/IP, DeviceNet and CAN, plus 2 analog and 8 digital I/O onboard.

Technical Specifications

Order code 3AUA0000107993
Type code ACS880-01-032A-3
Brand ABB
Series ACS880-01 - Wall-mounted single drive
EAN 6438177557388
Frame Size R3
Output Power, Normal Use (Pn) 15 kW
Output Current, Normal Use (In) 32 A
Output Power, Heavy-Duty Use (PHD) 11 kW
Output Current, Heavy-Duty Use (IHD) 25 A
Input Voltage (Uin) 380-415 V
Number of Phases 3-phase
Frequency (f) 47.5-63 Hz
Apparent Power Output 22 kVA
Power Consumption 400 W
Efficiency Level IE2
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Mounting Type Wall-mounted
Communication Protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 2 DO
Sound Level 60 dB(A)
Net Weight 10.8 kg
Net Dimensions (L x W x H) 261 x 173 x 475 mm

Selection Notes

032A corresponds directly to the 32 A nominal output of this variant, while -01 and -3 again mark the wall-mounted, 380-415 V construction that runs through the whole ACS880-01 family. It opens the R3 frame step, a larger 261 x 173 x 475 mm enclosure than the R2 models below it, built to carry more continuous current without derating. Use it for 15 kW motors running close to rated load; the 25 A heavy-duty figure covers moderate overload, and the 18.5 kW / 38 A R3 sibling is the next step for heavier starting duty.

Technical Details

Short Description
ABB ACS880-01-032A-3 (3AUA0000107993), 15 kW / 32 A, 400 V 3-phase, R3 frame, wall-mounted VFD, IP21.
Rated Current (Ampere)
32
Rated Voltage (VAC)
380/415 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS880-01-032A-3
Power (kW)
15 kW
Delivery Date (Days)
30 days
Model Number
ACS880-01-032A-3
Tariff Code
850440
