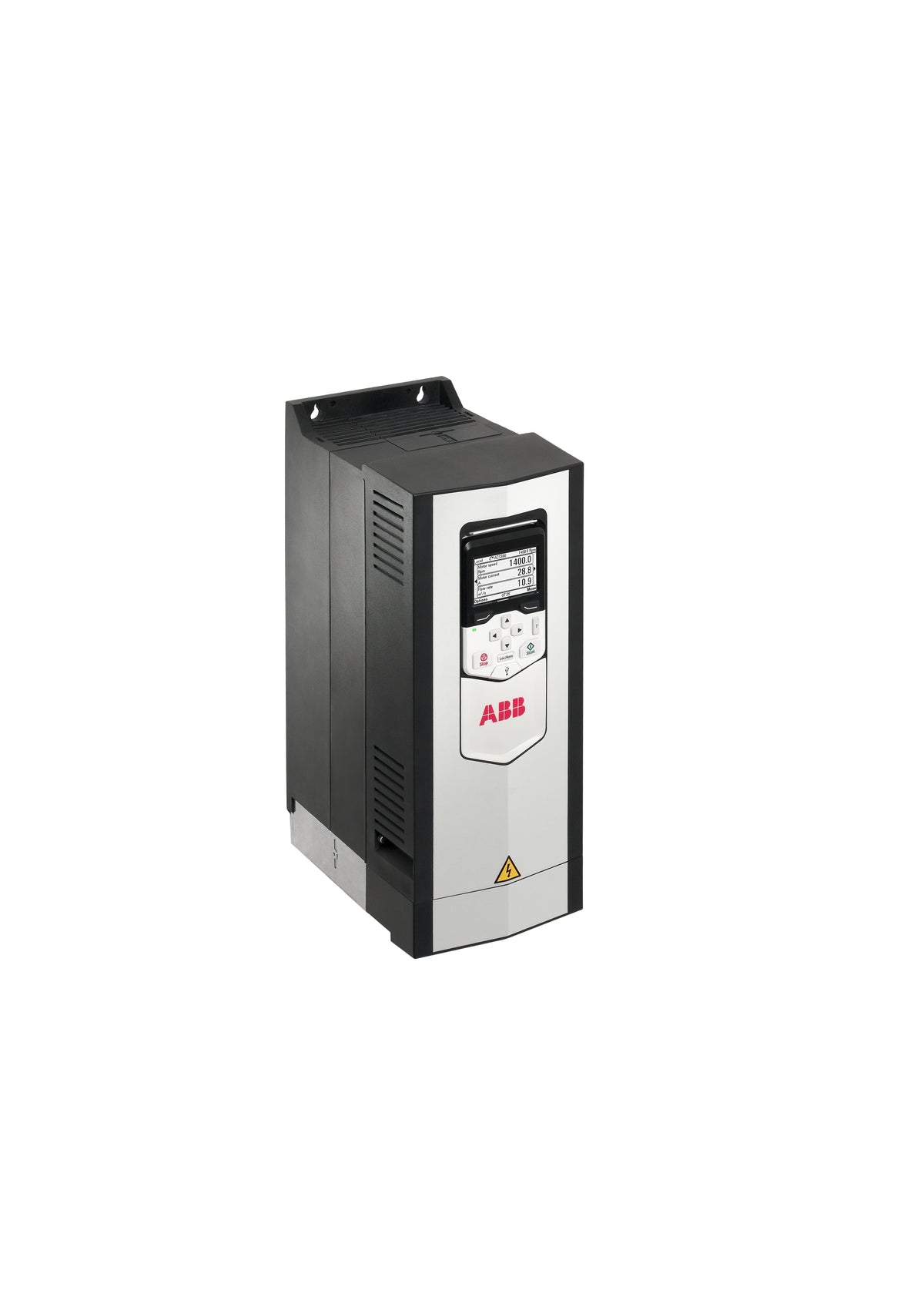

ABB 3AUA0000107989 ACS880-01-09A4-3 4 kW 10 A 400 V R1 Variable Frequency Drive (VFD)

% $-882.63
ABB 3AUA0000107989 ACS880-01-09A4-3 Variable Frequency Drive - 4 kW / 10 A
ABB 3AUA0000107989 ACS880-01-09A4-3 Variable Frequency Drive - 4 kW / 10 A

ABB 3AUA0000107989 ACS880-01-09A4-3 4 kW 10 A 400 V R1 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000107989
Catalog No: ACS880-01-09A4-3
Series: ACS880-01 - Wall-mounted single drive
Tariff Code (HS): 850440
Rated Current: 10
Power: 4 kW
Rated Voltage: 380/415 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$882.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ACS880-01-09A4-3, ABB order code 3AUA0000107989, is a wall-mounted R1-frame variable frequency drive built for 380-415 V three-phase motor loads up to 4 kW at 10 A nominal output. Harmonic filtering, multi-protocol RS-485 connectivity (Modbus, PROFIBUS, PROFINET, EtherNet/IP, DeviceNet, CAN) and onboard analog/digital I/O come standard, with no auxiliary modules needed for basic control.

Technical Specifications

Order code 3AUA0000107989
Type code ACS880-01-09A4-3
Brand ABB
Series ACS880-01 - Wall-mounted single drive
EAN 6438177558460
Frame Size R1
Output Power, Normal Use (Pn) 4 kW
Output Current, Normal Use (In) 10 A
Output Power, Heavy-Duty Use (PHD) 3.0 kW
Output Current, Heavy-Duty Use (IHD) 8.0 A
Input Voltage (Uin) 380-415 V
Number of Phases 3-phase
Frequency (f) 47.5-63 Hz
Apparent Power Output 6.9 kVA
Power Consumption 146 W
Efficiency Level IE2
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Mounting Type Wall-mounted
Communication Protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 2 DO
Sound Level 50 dB(A)
Net Weight 7.0 kg
Net Dimensions (L x W x H) 226 x 155 x 409 mm

Selection Notes

As with other R1 models, the -01 and -3 suffixes mark this as the wall-mounted module built for 380-415 V; the part that actually sets the current limit here is the verified 10 A nominal / 8.0 A heavy-duty rating rather than a literal reading of the 09A4 code. It is the largest of the seven R1-frame drives before the range steps up to the R2 frame at 7.5 kW, so a 4 kW motor near its full-load current is the right fit - anything larger belongs on the next frame up. The 8.0 A heavy-duty figure gives modest overload margin, useful for conveyors with brief load spikes rather than constant heavy torque.

Technical Details

Short Description
ABB ACS880-01-09A4-3 (3AUA0000107989), 4 kW / 10 A, 400 V 3-phase, R1 frame, wall-mounted VFD, IP21.
Rated Current (Ampere)
10
Rated Voltage (VAC)
380/415 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS880-01-09A4-3
Power (kW)
4 kW
Delivery Date (Days)
30 days
Model Number
ACS880-01-09A4-3
Tariff Code
850440
