ABB 3AUA0000088311 ACS-AP-I Graphical Display CR2032 Battery VFD Accessory

% $-132.25

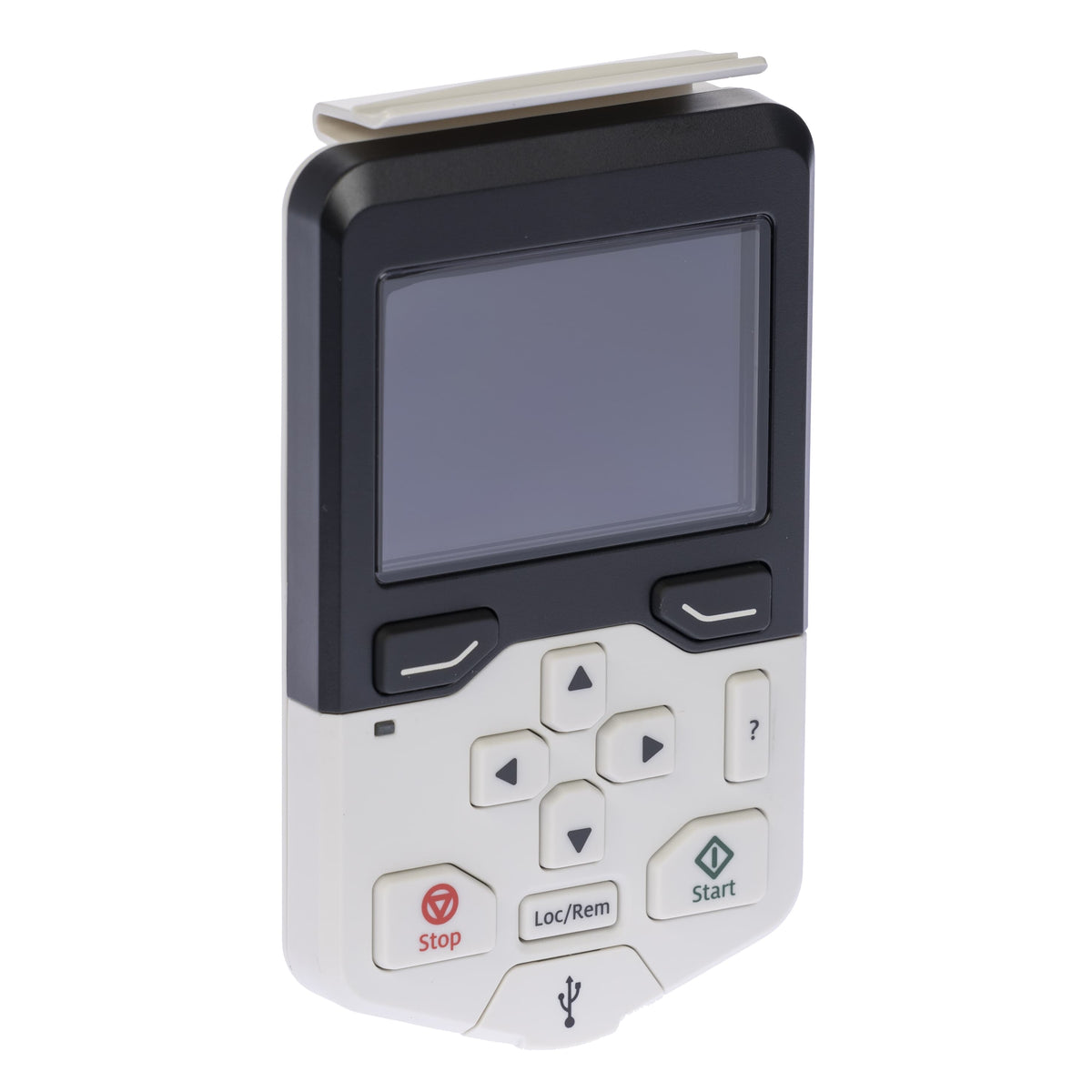

ABB 3AUA0000088311 ACS-AP-I graphical assistant control panel - high-resolution display
ABB 3AUA0000088311 ACS-AP-I graphical assistant control panel - high-resolution display

ABB 3AUA0000088311 ACS-AP-I Graphical Display CR2032 Battery VFD Accessory

Brand: ABB
Reference No: 3AUA0000088311
Catalog No: ACS-AP-I
Series: ACS-AP-I - Assistant control panel
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$132.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AUA0000088311 ACS-AP-I is a multilingual, graphical assistant control panel with a high-resolution display for setting up and operating ACS580, ACH580 and ACQ580 drives. Unlike the standard panel in the same accessory family, it uses a full graphical display for navigating drive parameters. It weighs 0.129 kg and runs on a CR2032 lithium coin cell for its clock and parameter backup, EAN 6438177306757.

Technical Specifications

Order Code 3AUA0000088311
Type Code ACS-AP-I
Brand ABB
Series ACS-AP-I - Assistant control panel
EAN 6438177306757
Net Weight 0.129 kg
Length 26 mm
Height 130 mm
Width 74 mm
Battery Lithium coin CR2032, 220 mAh, 3 V, 1 pc

Selection Notes

Pick the ACS-AP-I when commissioning needs a graphical, high-resolution interface - multi-line parameter lists and multilingual menus are easier to read on this panel than on the basic version in the same family. The onboard CR2032 cell keeps the clock and parameter backup alive when the panel is disconnected from the drive, so replace it if the panel loses its date and time after a long storage period.

Technical Details

Short Description
ABB 3AUA0000088311 ACS-AP-I - graphical, high-resolution assistant control panel for ACS580/ACH580/ACQ580 drives, 0.129 kg.
Catalog No
ACS-AP-I
Delivery Date (Days)
30 days
Model Number
ACS-AP-I
Tariff Code
850490
