ABB 3AUA0000080510 ACS580-01-430A-4 250 kW 430 A 400 V R9 Variable Frequency Drive (VFD)

% $-10,873.25

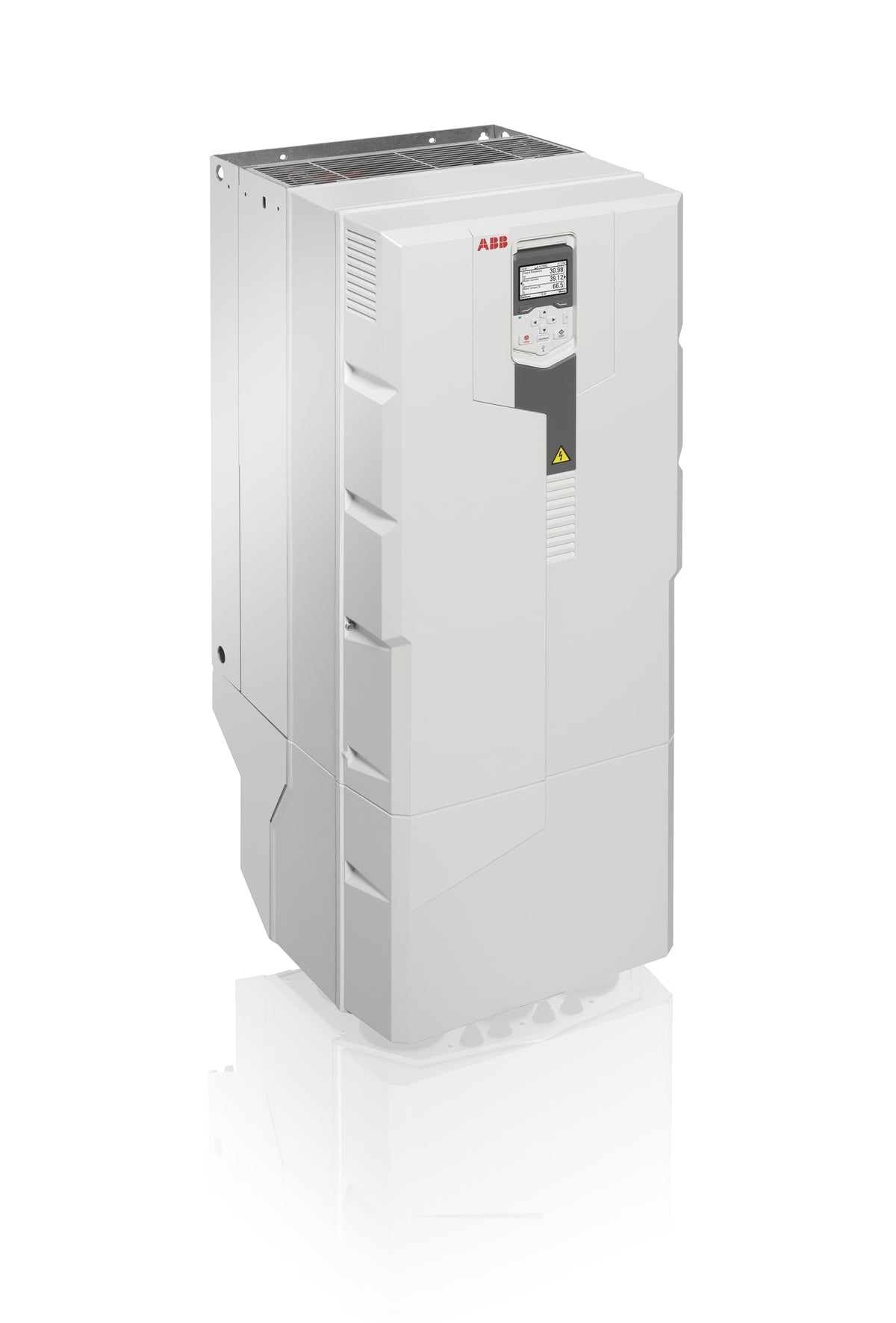

ABB 3AUA0000080510 ACS580-01-430A-4 VFD - 250 kW 430 A 400 V
ABB 3AUA0000080510 ACS580-01-430A-4 VFD - 250 kW 430 A 400 V

ABB 3AUA0000080510 ACS580-01-430A-4 250 kW 430 A 400 V R9 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080510
Catalog No: ACS580-01-430A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 430
Power: 250 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$10,873.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Order code 3AUA0000080510 covers the ABB ACS580-01-430A-4, a 250 kW, 430 A normal-duty wall-mounted drive on frame R9, built for 380-480 V three-phase supply and IP21 installations. It is intended for large pumps, compressors and conveyor drives running near the top of the IEC-rated ACS580-01 wall-mounted range.

Technical Specifications

Order code 3AUA0000080510
Type code ACS580-01-430A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177305668
Frame size R9
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 250 kW
Output current, normal use (In) 430 A
Output power, heavy-duty use (PHD) 200 kW
Output current, heavy-duty use (IHD) 363 A
Output power, light-overload use (PLD) 200 kW
Output current, light-overload use (ILD) 400 A
Apparent power output 298 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 68 dB(A)
Standby loss 80 W
Net weight 97 kg
Dimensions (W x H x D) 380 x 955 x 418 mm

Selection Notes

With a 430 A normal-duty rating, this unit sits between the entry-level 363 A R9 drive and the 490 A top-of-range unit, so it is the fit when the application's full-load current is closer to 430 A than either neighboring rating. Notably, the light-overload power figure (200 kW) drops below the normal-duty figure (250 kW) at this current step, so light-overload sizing should be checked against current (400 A) rather than the kW column alone. Net weight and enclosure dimensions match the smaller R9 unit, keeping the same installation footprint.

Technical Details

Short Description
ABB ACS580-01-430A-4 wall-mounted VFD, 250 kW, 430 A, IP21, frame R9, 380-480 V three-phase supply.
Rated Current (Ampere)
430
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-430A-4
Power (kW)
250 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-430A-4
Tariff Code
850440
