ABB 3AUA0000080507 ACS580-01-246A-4 132 kW 246 A 400 V R8 Variable Frequency Drive (VFD)

% $-6,063.38

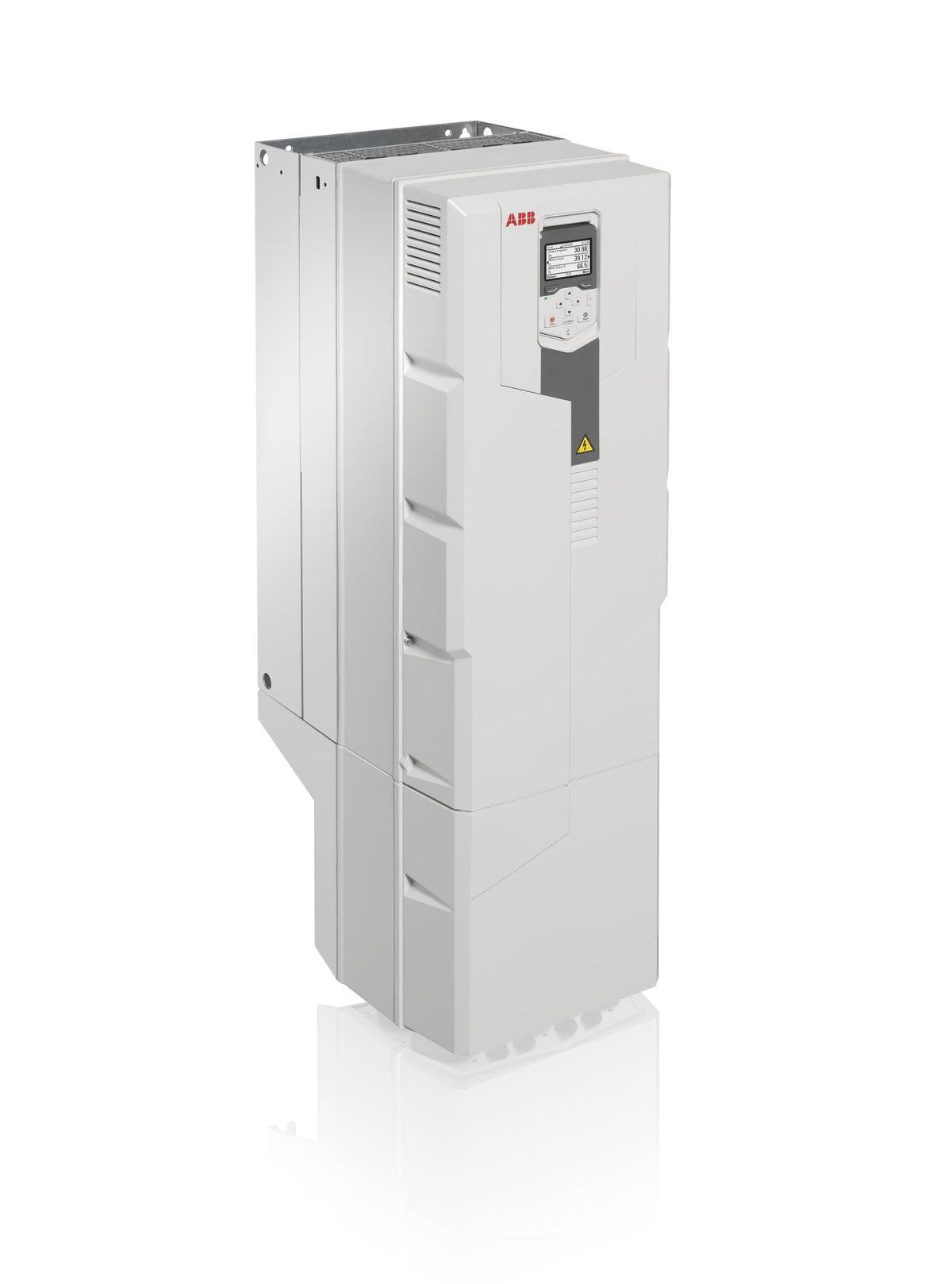

ABB 3AUA0000080507 ACS580-01-246A-4 VFD - 132 kW 246 A 400 V
ABB 3AUA0000080507 ACS580-01-246A-4 VFD - 132 kW 246 A 400 V

ABB 3AUA0000080507 ACS580-01-246A-4 132 kW 246 A 400 V R8 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080507
Catalog No: ACS580-01-246A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 246
Power: 132 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6,063.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 3AUA0000080507, catalog number ACS580-01-246A-4, is a frame R8 wall-mounted variable frequency drive for a 132 kW motor at 246 A normal-duty current, built for 380-480 V three-phase supply with IP21 protection. It is sized for compressors, large fans and conveyor lines that step up from the R7-frame units in the ACS580-01 range.

Technical Specifications

Order code 3AUA0000080507
Type code ACS580-01-246A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177305637
Frame size R8
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 132 kW
Output current, normal use (In) 246 A
Output power, heavy-duty use (PHD) 110 kW
Output current, heavy-duty use (IHD) 206 A
Output power, light-overload use (PLD) 132 kW
Output current, light-overload use (ILD) 234 A
Apparent power output 170 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 65 dB(A)
Standby loss 47 W
Net weight 69 kg
Dimensions (W x H x D) 300 x 965 x 393 mm

Selection Notes

Moving to frame R8, this 246 A unit sits below the higher-current R8 variant in the same batch, so use the 246 A normal-duty rating directly against the motor's full-load current to decide between the two R8 options rather than sizing by frame alone. The 206 A heavy-duty figure fits constant-torque loads like extruders, while 234 A light-overload covers short-term pump or fan peaks. At 69 kg and 965 mm tall, this is the point in the range where a lifting aid for installation becomes worth planning for.

Technical Details

Short Description
ABB ACS580-01-246A-4 wall-mounted VFD, 132 kW, 246 A, IP21, frame R8, 380-480 V three-phase supply.
Rated Current (Ampere)
246
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-246A-4
Power (kW)
132 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-246A-4
Tariff Code
850440
