ABB 3AUA0000080506 ACS580-01-206A-4 110 kW 206 A 400 V R7 Variable Frequency Drive (VFD)

% $-5,186.50

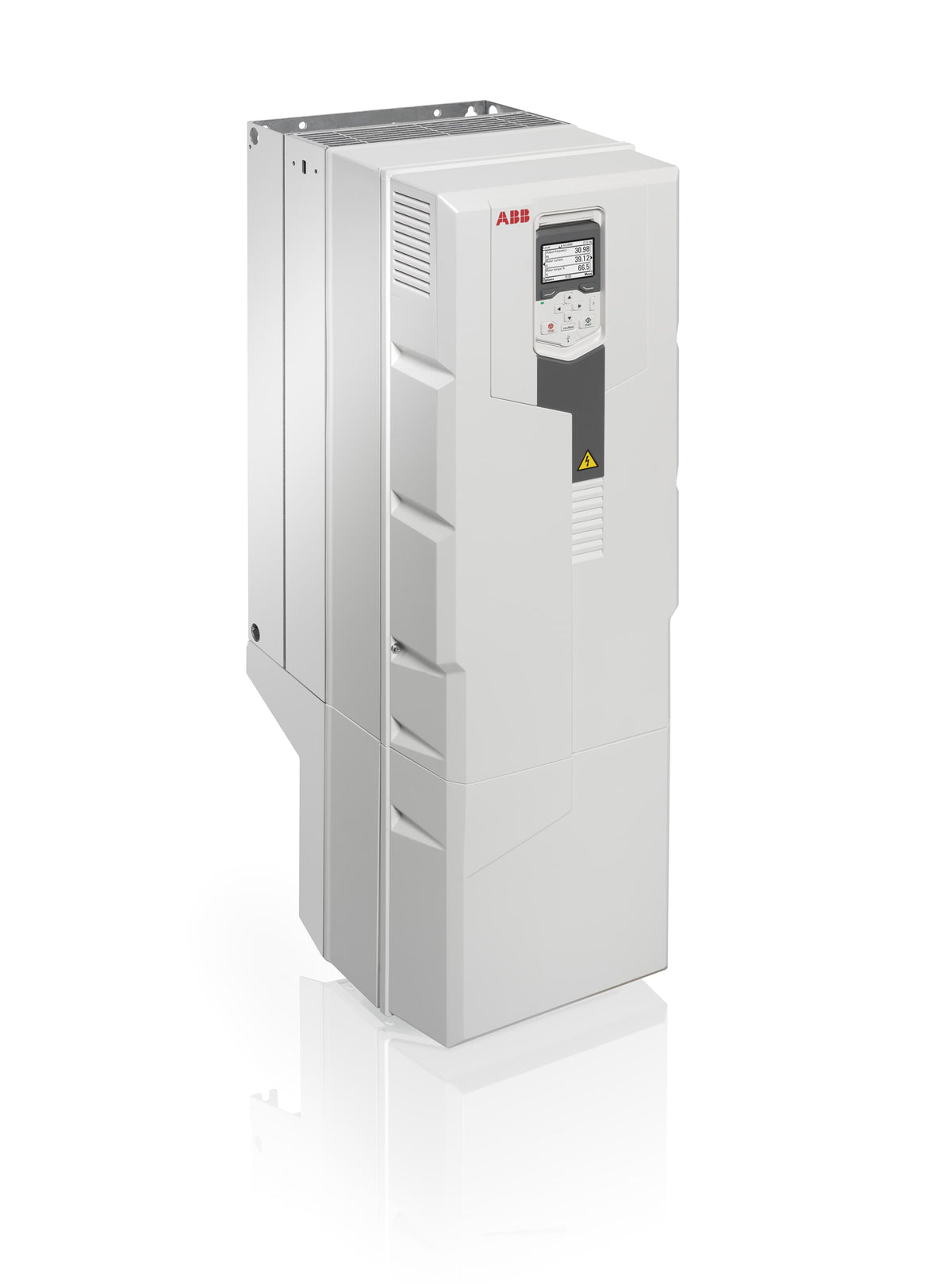

ABB 3AUA0000080506 ACS580-01-206A-4 VFD - 110 kW 206 A 400 V
ABB 3AUA0000080506 ACS580-01-206A-4 VFD - 110 kW 206 A 400 V

ABB 3AUA0000080506 ACS580-01-206A-4 110 kW 206 A 400 V R7 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080506
Catalog No: ACS580-01-206A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 206
Power: 110 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,186.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 110 kW and 206 A normal-duty output, the ABB 3AUA0000080506 ACS580-01-206A-4 is the higher-current frame R7 member of the ACS580-01 wall-mounted drive range, rated for 380-480 V three-phase supply and IP21 protection. It targets compressors, conveyors and pumps that need more continuous output than the lower-current R7 variant without stepping up a frame.

Technical Specifications

Order code 3AUA0000080506
Type code ACS580-01-206A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177305620
Frame size R7
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 110 kW
Output current, normal use (In) 206 A
Output power, heavy-duty use (PHD) 90 kW
Output current, heavy-duty use (IHD) 169 A
Output power, light-overload use (PLD) 110 kW
Output current, light-overload use (ILD) 196 A
Apparent power output 143 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 67 dB(A)
Standby loss 36 W
Net weight 54 kg
Dimensions (W x H x D) 284 x 880 x 370 mm

Selection Notes

Sharing its R7 frame, weight and dimensions with the lower-current 206 A sibling in this batch, this unit's 206 A normal-duty rating is the deciding factor: pick it over the lower-current R7 option once the motor's full-load current approaches 206 A. The 169 A heavy-duty figure versus 196 A light-overload again shows the roughly 15% spread between continuous constant-torque duty and intermittent peaks. Standby loss of 36 W and a 143 kVA apparent power rating are useful inputs for upstream cooling and supply sizing.

Technical Details

Short Description
ABB ACS580-01-206A-4 wall-mounted VFD, 110 kW, 206 A, IP21, frame R7, 380-480 V three-phase supply.
Rated Current (Ampere)
206
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-206A-4
Power (kW)
110 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-206A-4
Tariff Code
850440
