ABB 3AUA0000080505 ACS580-01-169A-4 90 kW 169 A 400 V R7 Variable Frequency Drive (VFD)

% $-4,094.00

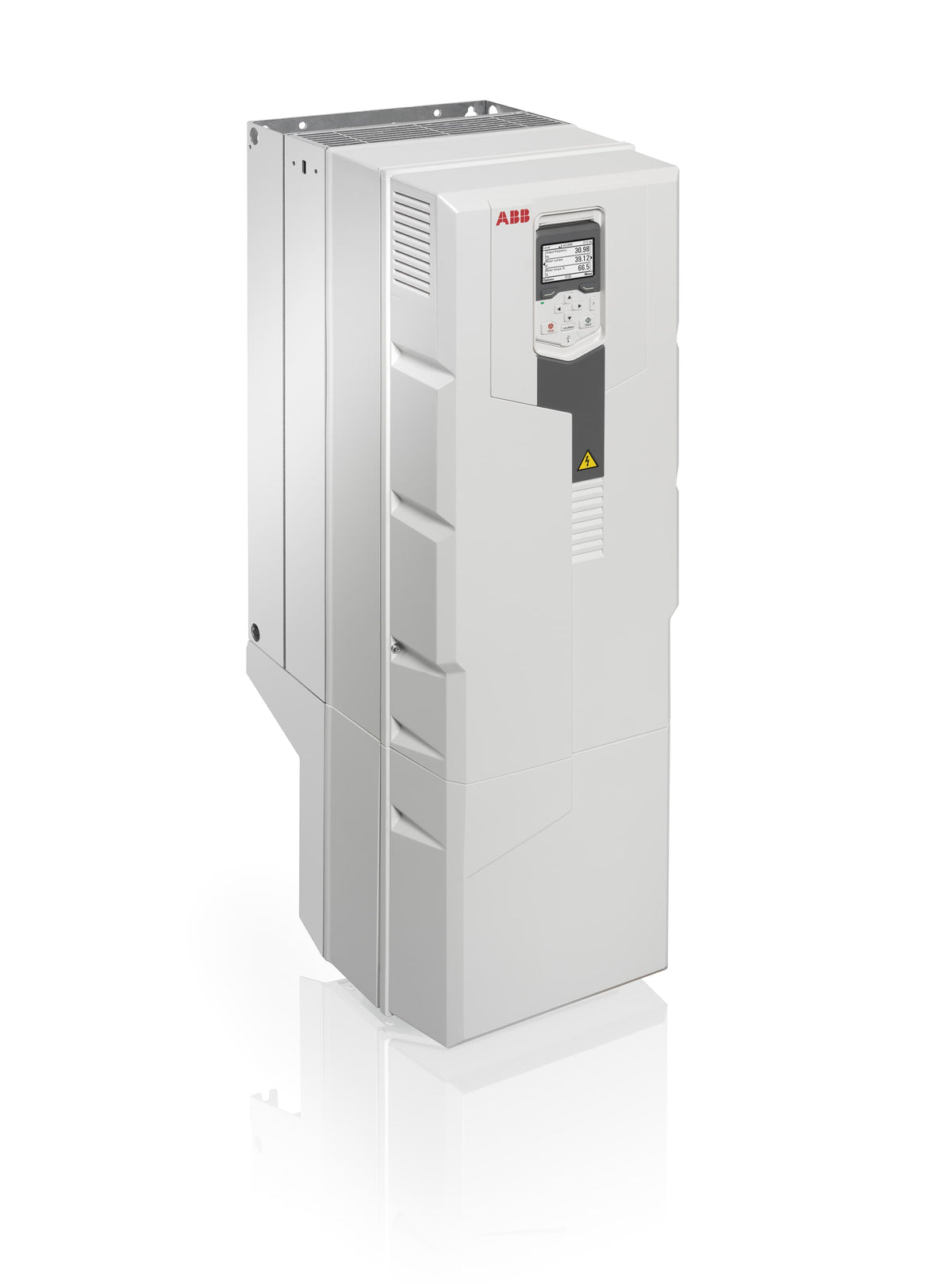

ABB 3AUA0000080505 ACS580-01-169A-4 VFD - 90 kW 169 A 400 V
ABB 3AUA0000080505 ACS580-01-169A-4 VFD - 90 kW 169 A 400 V

ABB 3AUA0000080505 ACS580-01-169A-4 90 kW 169 A 400 V R7 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080505
Catalog No: ACS580-01-169A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 169
Power: 90 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,094.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Built on frame R7, the ABB 3AUA0000080505 ACS580-01-169A-4 is a wall-mounted variable frequency drive for a 90 kW motor at 169 A normal-duty current, supplied from a 380-480 V three-phase line through an IP21 enclosure. It handles compressors, conveyors, pumps and mixers that need a fixed drive module rather than a cabinet build.

Technical Specifications

Order code 3AUA0000080505
Type code ACS580-01-169A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177305613
Frame size R7
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 90 kW
Output current, normal use (In) 169 A
Output power, heavy-duty use (PHD) 75 kW
Output current, heavy-duty use (IHD) 145 A
Output power, light-overload use (PLD) 90 kW
Output current, light-overload use (ILD) 161 A
Apparent power output 117 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 67 dB(A)
Standby loss 36 W
Net weight 54 kg
Dimensions (W x H x D) 284 x 880 x 370 mm

Selection Notes

This 169 A drive and the other R7-frame unit in the family share dimensions and weight but differ in current rating, so match the selection to the motor's actual full-load current rather than the frame size alone. A 145 A heavy-duty figure versus a 161 A light-overload figure shows roughly a 10% spread between continuous and intermittent duty, which matters for loads with cyclic torque peaks such as mixers. At 54 kg, plan the wall or panel fixing and clearance for an 880 mm-tall enclosure before installation.

Technical Details

Short Description
ABB ACS580-01-169A-4 wall-mounted VFD, 90 kW, 169 A, IP21, frame R7, 380-480 V three-phase supply.
Rated Current (Ampere)
169
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-169A-4
Power (kW)
90 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-169A-4
Tariff Code
850440
