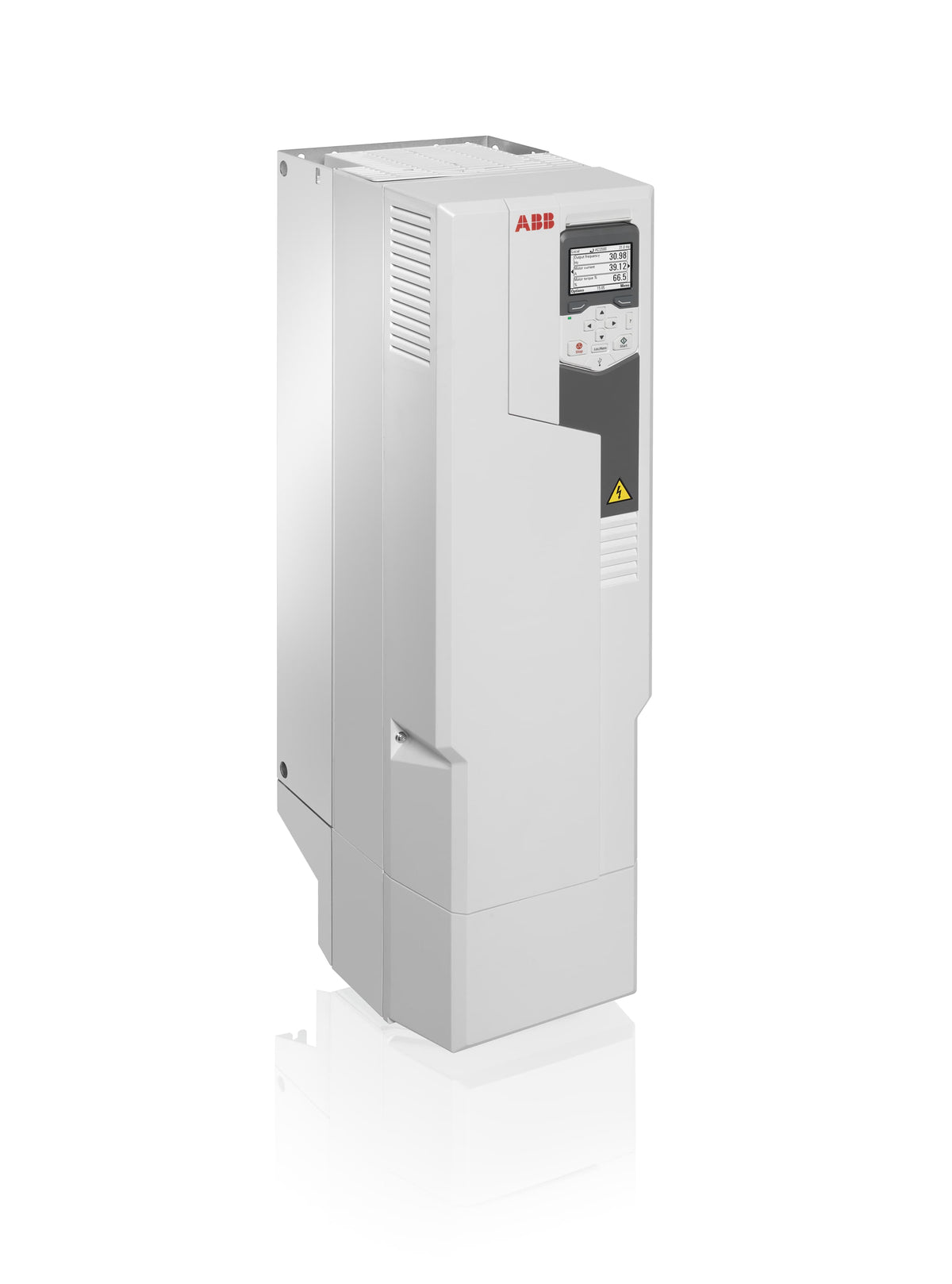

ABB 3AUA0000080503 ACS580-01-106A-4 55 kW 106 A 400 V R5 Variable Frequency Drive (VFD)

% $-2,969.88
ABB 3AUA0000080503 ACS580-01-106A-4 VFD - 55 kW 106 A 400 V
ABB 3AUA0000080503 ACS580-01-106A-4 VFD - 55 kW 106 A 400 V

ABB 3AUA0000080503 ACS580-01-106A-4 55 kW 106 A 400 V R5 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080503
Catalog No: ACS580-01-106A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 106
Power: 55 kW
Rated Voltage: 380/480 V AC
Communication: CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,969.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated at 55 kW and 106 A, the ABB 3AUA0000080503 is a frame R5 ACS580-01 wall-mounted variable frequency drive built for 380-480 V three-phase supply with an IP21 enclosure. It fits compressors, conveyors, extruders and centrifuge-type loads where a fixed, mid-power drive module is wanted without added external hardware.

Technical Specifications

Order code 3AUA0000080503
Type code ACS580-01-106A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
EAN 6438177305590
Frame size R5
Mounting type Wall-mounted
Degree of protection IP21 (NEMA Type 1)
Input voltage (Uin) 380-480 V
Number of phases 3-phase
Frequency range 47.5-63 Hz
Output power, normal use (Pn) 55 kW
Output current, normal use (In) 106 A
Output power, heavy-duty use (PHD) 45 kW
Output current, heavy-duty use (IHD) 87 A
Output power, light-overload use (PLD) 55 kW
Output current, light-overload use (ILD) 100 A
Apparent power output 73 kV*A
Efficiency level IE2
Analog I/O 2 AI / 2 AO
Digital I/O 6 DI / 3 DO
Communication protocols CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP
Sound level 63 dB(A)
Standby loss 24 W
Net weight 28.3 kg
Dimensions (W x H x D) 203 x 732 x 295 mm

Selection Notes

The 106 A normal-use rating on a frame R5 enclosure places this unit above the lower-current R1-frame drives in the same family and below the larger R6/R7 steps, so it suits motors whose full-load current sits close to 106 A without the extra size and weight of the next frame. Its 87 A heavy-duty rating gives headroom for constant-torque loads such as extruders, while the 100 A light-overload figure covers short pump or fan transients. At 28.3 kg the unit still needs a wall or panel point rated for that mass plus clearance for its 732 mm height.

Technical Details

Short Description
ABB ACS580-01-106A-4 wall-mounted VFD, 55 kW, 106 A, IP21, frame R5, 380-480 V three-phase supply.
Rated Current (Ampere)
106
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted
Protection Type
IP21
Catalog No
ACS580-01-106A-4
Power (kW)
55 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-106A-4
Tariff Code
850440
