ABB 3AUA0000080498 ACS580-01-062A-4 30 kW 62 A 400 V R4 Variable Frequency Drive (VFD)

% $-1,644.50

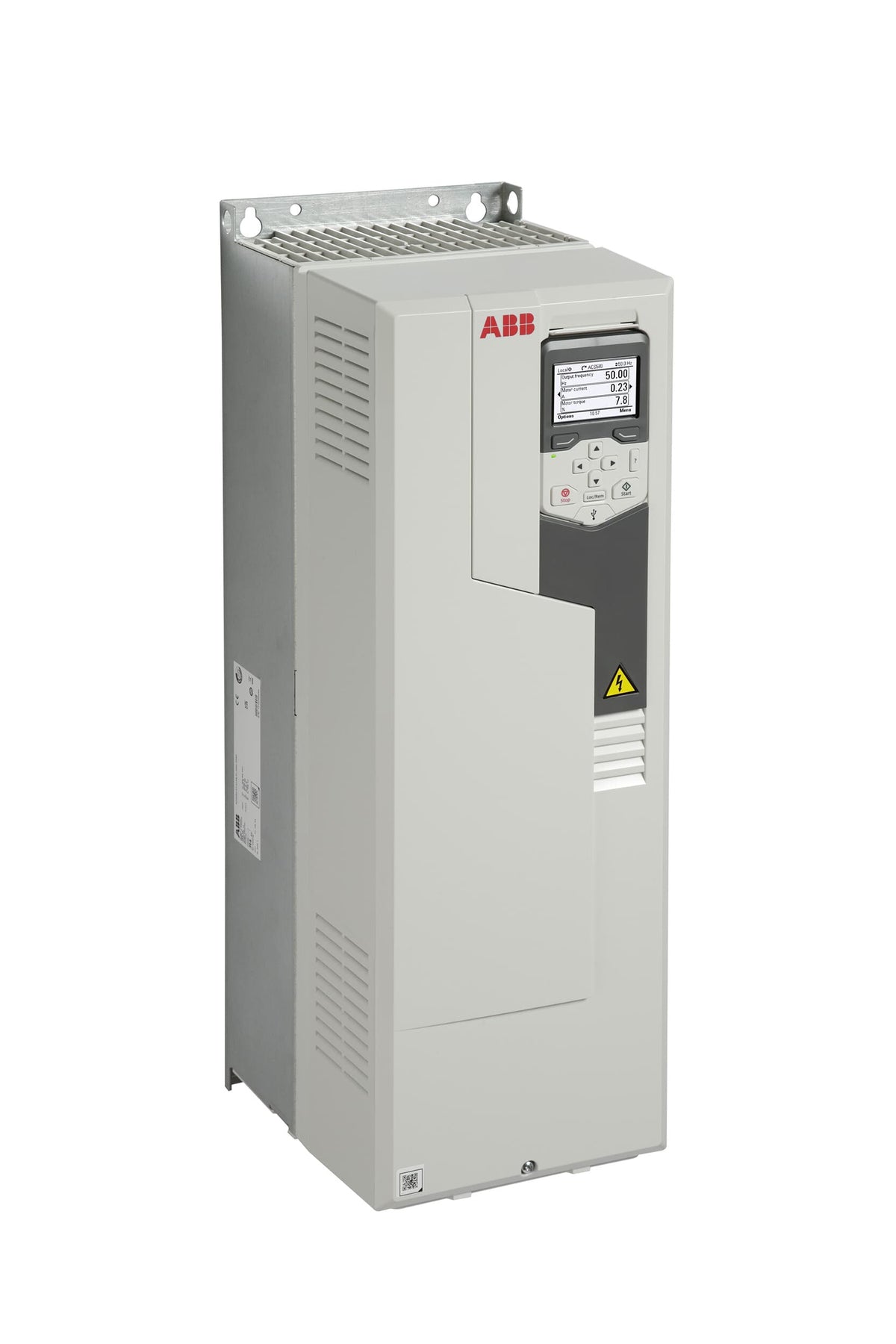

ABB 3AUA0000080498 ACS580-01-062A-4 VFD - 30 kW 62 A 400 V
ABB 3AUA0000080498 ACS580-01-062A-4 VFD - 30 kW 62 A 400 V

ABB 3AUA0000080498 ACS580-01-062A-4 30 kW 62 A 400 V R4 Variable Frequency Drive (VFD)

Brand: ABB
Reference No: 3AUA0000080498
Catalog No: ACS580-01-062A-4
Series: ACS580-01 - Wall-mounted drive
Tariff Code (HS): 850440
Rated Current: 62
Power: 30 kW
Rated Voltage: 380/480 V AC
Communication: RS-485 (Modbus RTU) built-in; EtherNet/IP, PROFINET IO, PROFIBUS, DeviceNet, CAN via adapter options
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,644.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 30 kW and 62 A on a 400 V supply, the ABB ACS580-01-062A-4 (order code 3AUA0000080498) is a wall-mounted general purpose AC drive in IP21 frame R4, suited to compressors, conveyors, pumps, extruders and fans. It accepts a 380-480 V three-phase supply and includes onboard RS-485 for Modbus RTU and a USB port for the PC tool.

Technical Specifications

Order Code 3AUA0000080498
Type Code ACS580-01-062A-4
Brand ABB
Series ACS580-01 - Wall-mounted drive
Frame Size R4
Supply Voltage 380-480 V AC, 3-phase
Frequency 47.5-63 Hz
Output Current, Normal Use (In) 62 A
Output Current, Light-Overload (ILD) 58 A
Output Current, Heavy-Duty (IHD) 45 A
Output Power, Normal Use (Pn) 30 kW
Output Power, Light-Overload (PLD) 30 kW
Output Power, Heavy-Duty (PHD) 22.0 kW
Apparent Power Output 43 kVA
Power Consumption 777 W
Efficiency Level IE2
Standby Loss 19 W
Degree of Protection IP21
Enclosure Type (NEMA) Type 1
Analog I/O 2 AI, 2 AO
Digital I/O 6 DI, 3 DO
Built-in Serial Interface 1x RS-485, 1x USB
Net Weight 20 kg
Dimensions (L x H x W) 257 x 636 x 203 mm
EAN 6438177305545

Selection Notes

This is the lower-rated of the two R4-frame units in this lineup; the heavy-duty rating (22.0 kW/45 A) leaves a wide margin below the 62 A normal-use current, useful for loads with high starting torque. Above the light-overload rating of 58 A, the higher-current R4 variant is the next step rather than running this unit past its continuous rating.

Technical Details

Short Description
ABB ACS580-01-062A-4, 30 kW / 62 A / 400 V wall-mounted AC drive, IP21 frame R4.
Rated Current (Ampere)
62
Rated Voltage (VAC)
380/480 V AC
Mounting Type
Wall-mounted, Frame R4
Protection Type
IP21 (NEMA Type 1)
Catalog No
ACS580-01-062A-4
Power (kW)
30 kW
Delivery Date (Days)
30 days
Model Number
ACS580-01-062A-4
Tariff Code
850440
