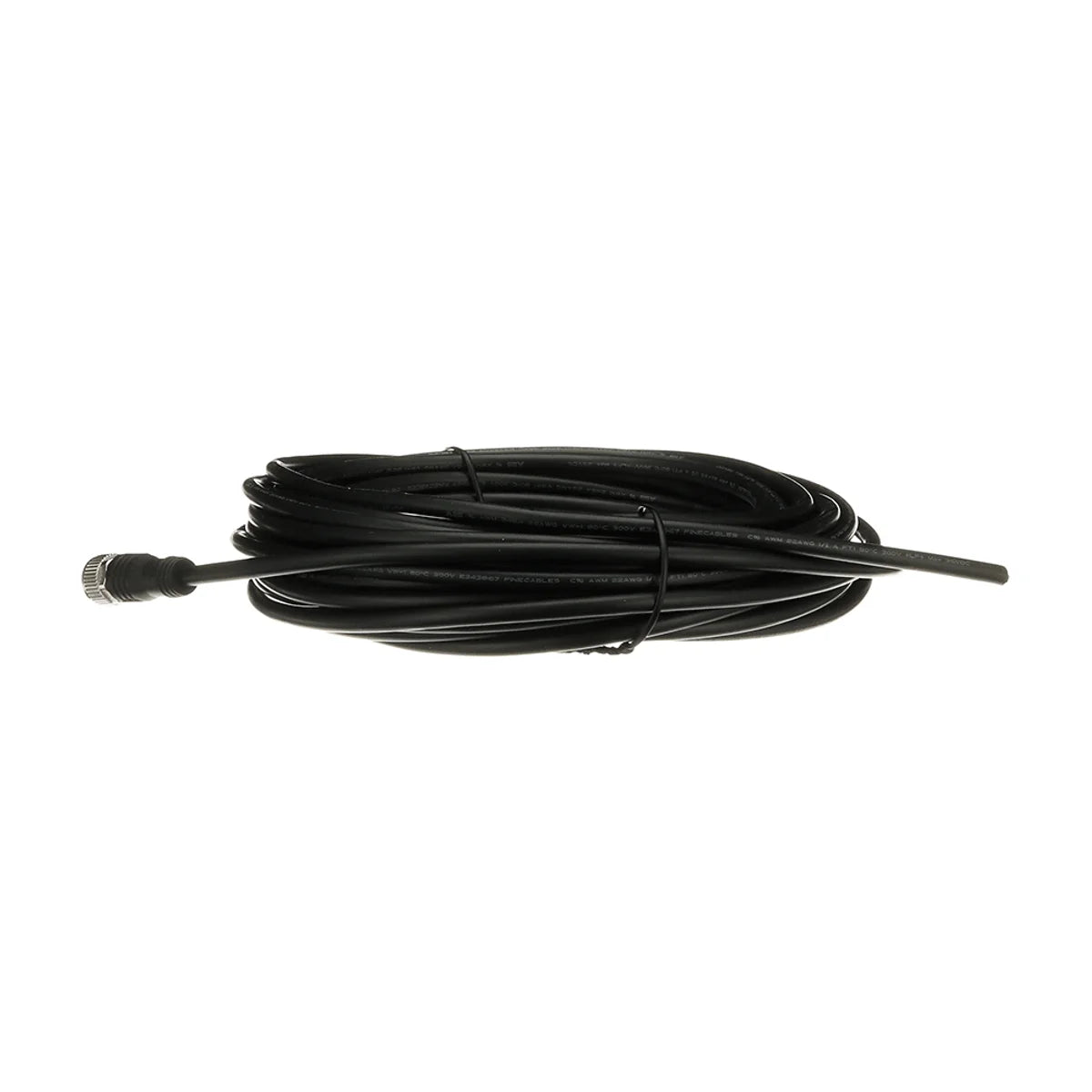

The ABB M12-C101 (SKU: 2TLA020056R1000) is a sensor-actuator patch cord cable designed for reliable signal and power connectivity in industrial automation environments. Measuring 10 metres in length with compact M12 connector dimensions of 15 mm × 15 mm, the M12-C101 delivers a dependable, plug-and-play wiring solution for sensors and actuators on the factory floor. Weighing just 0.478 kg, this ABB patch cord is engineered for ease of installation in control panels, machine safety circuits, and automated production lines.
| Product Net Depth / Length | 10 m |
|---|---|
| Product Net Height | 15 mm |
| Product Net Width | 15 mm |
| Product Net Weight | 0.478 kg |
| Suitable For | Orion1-4-14-015-B, Orion1-4-14-030-B, Orion1-4-14-045-B, Orion1-4-14-060-B, Orion1-4-14-075-B, Orion1-4-14-090-B, Orion1-4-14-105-B, Orion1-4-14-120-B, Orion1-4-14-135-B, Orion1-4-14-150-B, Orion1-4-14-165-B, Orion1-4-14-180-B, Orion1-4-30-015-B, Orion1-4-30-030-B, Orion1-4-30-045-B, Orion1-4-30-060-B, Orion1-4-30-075-B, Orion1-4-30-090-B, Orion1-4-30-105-B, Orion1-4-30-120-B, Orion1-4-30-135-B, Orion1-4-30-150-B, Orion1-4-30-165-B, Orion1-4-30-180-B, Orion2-4-K2-050-B, Orion2-4-K3-080-B, Orion2-4-K4-090-B, Orion2-4-K4-120-B, Orion3-4-K1C-050-B, Orion3-4-K2C-080-B, Orion3-4-K2C-090-B, Orion3-4-K2C-120-B, Orion1-4-14-030-E, Orion1-4-14-045-E, Orion1-4-14-060-E, Orion1-4-14-075-E, Orion1-4-14-090-E, Orion1-4-14-105-E, Orion1-4-14-120-E, Orion1-4-14-135-E, Orion1-4-14-150-E, Orion1-4-14-165-E, Orion1-4-14-180-E, Orion1-4-30-030-E, Orion1-4-30-045-E, Orion1-4-30-060-E, Orion1-4-30-075-E, Orion1-4-30-090-E, Orion1-4-30-105-E, Orion1-4-30-120-E, Orion1-4-30-135-E, Orion1-4-30-150-E, Orion1-4-30-165-E, Orion1-4-30-180-E, Orion2-4-K2-050-E, Orion2-4-K3-080-E, Orion2-4-K4-090-E, Orion2-4-K4-120-E, Orion3-4-K1C-050-E, Orion3-4-K2C-080-E, Orion3-4-K2C-090-E, Orion3-4-K2C-120-E, JSHD4-1-AC, Adam DYN-Info M12-5, Adam DYN-Status M12-5, Adam DYN-Reset M12-5, Adam OSSD-Info M12-5, Adam OSSD-Reset M12-5, Adam AS-i M12-4, JSTD25F |
|---|
| REACH Declaration | 2CMT2022-006480 |
|---|---|
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Part number | 2TLA020056R1000 |
|---|---|
| Type designation | M12-C101 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7350024452372 |
| ETIM class | EC001855 |
| eCl@ss | 27060313 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8544429090 |
| E-Number (Sweden) | 3861406 |
|---|---|
| ETIM 10 | EC001855 - Sensor-actuator patch cord |
| UNSPSC | 26121603 |
| eClass | V11.0 : 27060313 |
| Shipping weight | 0.478 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for M12-C101 is 8544429090.
The EAN (GTIN) of M12-C101 is 7350024452372.
M12-C101 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
