ABB 2TAZ665052R2001 D1M 20 Modbus RTU 1-3 Phase Class 0.5 Power Meter Energy Analyzer

% $-210.81

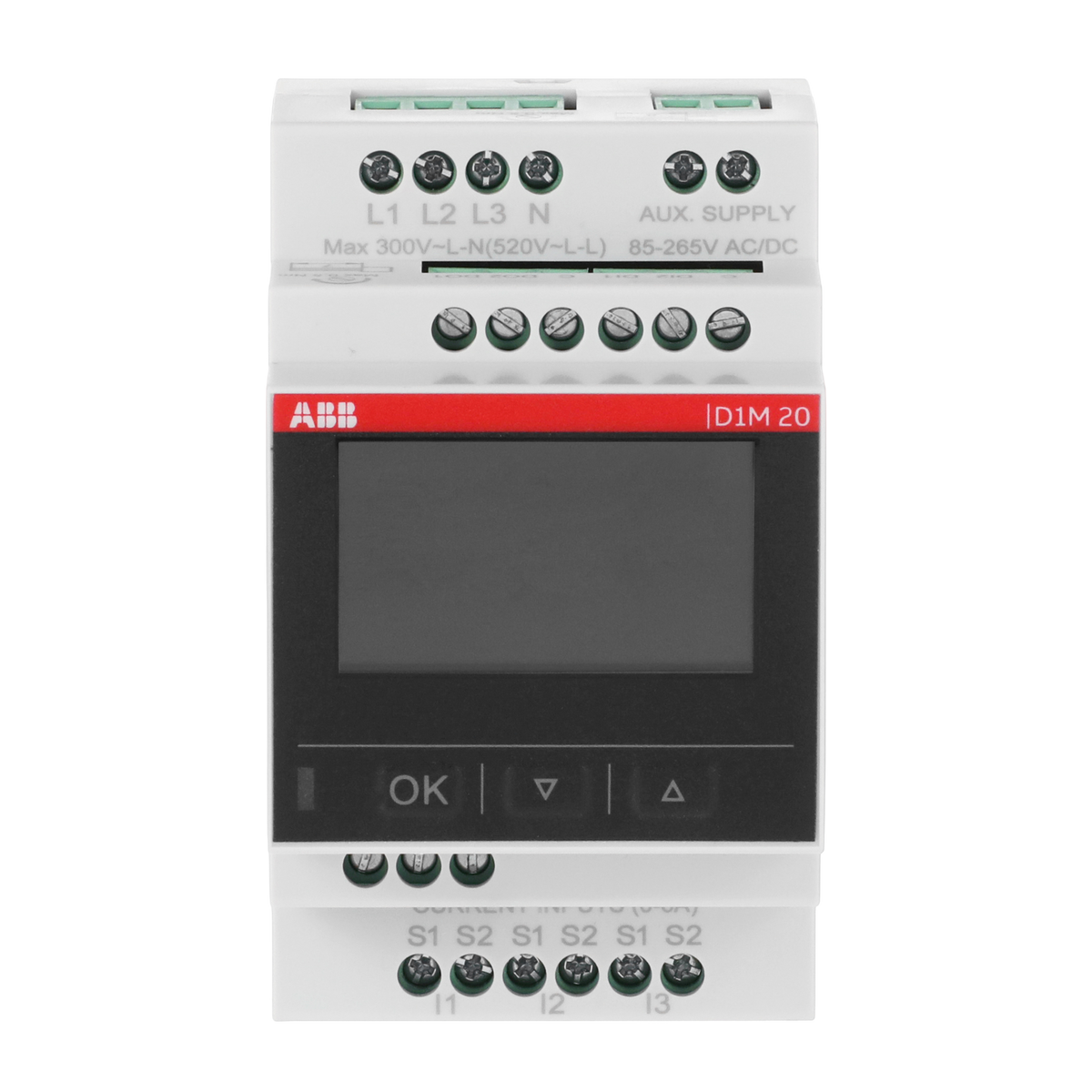

ABB 2TAZ665052R2001 D1M 20 Modbus power meter - 1-3 phase RS-485 Modbus RTU LCD
ABB 2TAZ665052R2001 D1M 20 Modbus power meter - 1-3 phase RS-485 Modbus RTU LCD

ABB 2TAZ665052R2001 D1M 20 Modbus RTU 1-3 Phase Class 0.5 Power Meter Energy Analyzer

Brand: ABB
Reference No: 2TAZ665052R2001
Catalog No: D1M 20 Modbus
Series: Network Analyzers and Multimeters
Tariff Code (HS): 902830
Rated Voltage: 80/300 V AC
Communication: Modbus RTU, RS-485
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$210.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2TAZ665052R2001 (D1M 20 Modbus) is a DIN-rail power meter for 1-phase or 3-phase systems with Modbus RTU over RS-485, accepting 1 A or 5 A current inputs up to 300 V AC. It delivers Class 0.5 active-energy accuracy per IEC 61557-12 with an LCD display and 2 digital inputs plus 2 digital outputs.

Technical Specifications

Catalog Designation D1M 20 Modbus
SKU 2TAZ665052R2001
Brand ABB
Series Network Analyzers and Multimeters
EAN 6941593481170
Accuracy Active Energy ±0.5%
Measuring Range Max Voltage AC 300 V, Max Current AC 6 A, Max Frequency 60 kHz
Number of Phases 1-phase / 3-phase
Communication Modbus RTU
Rated Voltage (Ur) 80-300 V AC (L-N)
Rated Current (In) 1 A / 5 A
Frequency 50-60 Hz
Power Consumption Maximum 5 V·A
Digital I/O 2 inputs, 2 outputs
Type of Indicator Analogue/digital (LCD)
Degree of Protection IP51
Pollution Degree 2
Ambient Temperature Operation -5 to 55°C / Storage -25 to 70°C
Mounting DIN-Rail
Width 52.5 mm
Height 89 mm
Depth 63.5 mm
Weight 0.252 kg

Certifications & Standards

  • IEC 61557-12
  • IEC 62053-22

Selection Notes

Modbus RTU over RS-485 lets the D1M 20 Modbus report into an existing serial bus rather than requiring an Ethernet drop, while its Class 0.5 accuracy stays tighter than a Class 1 multimeter for sub-billing use. The 1 A / 5 A dual current range and 1-phase/3-phase switching match the same panel sizes as the rest of this power-meter range. Choose the Ethernet TCP/IP variant instead when the installation already has network wiring to the panel.

Technical Details

Short Description
ABB D1M 20 Modbus DIN-rail power meter, 1/3-phase, RS-485 Modbus RTU, Class 0.5 accuracy, LCD.
Rated Voltage (VAC)
80/300 V AC
Mounting Type
DIN-Rail
Protection Type
IP51
Catalog No
D1M 20 Modbus
Standards
IEC 61557-12, IEC 62053-22
Delivery Date (Days)
30 days
Model Number
D1M 20 Modbus
Tariff Code
902830
