ABB 2TAZ665050R2000 D1M 15 1-3 Phase Class 1 DIN-Rail Multimeter Energy Analyzer

% $-182.03

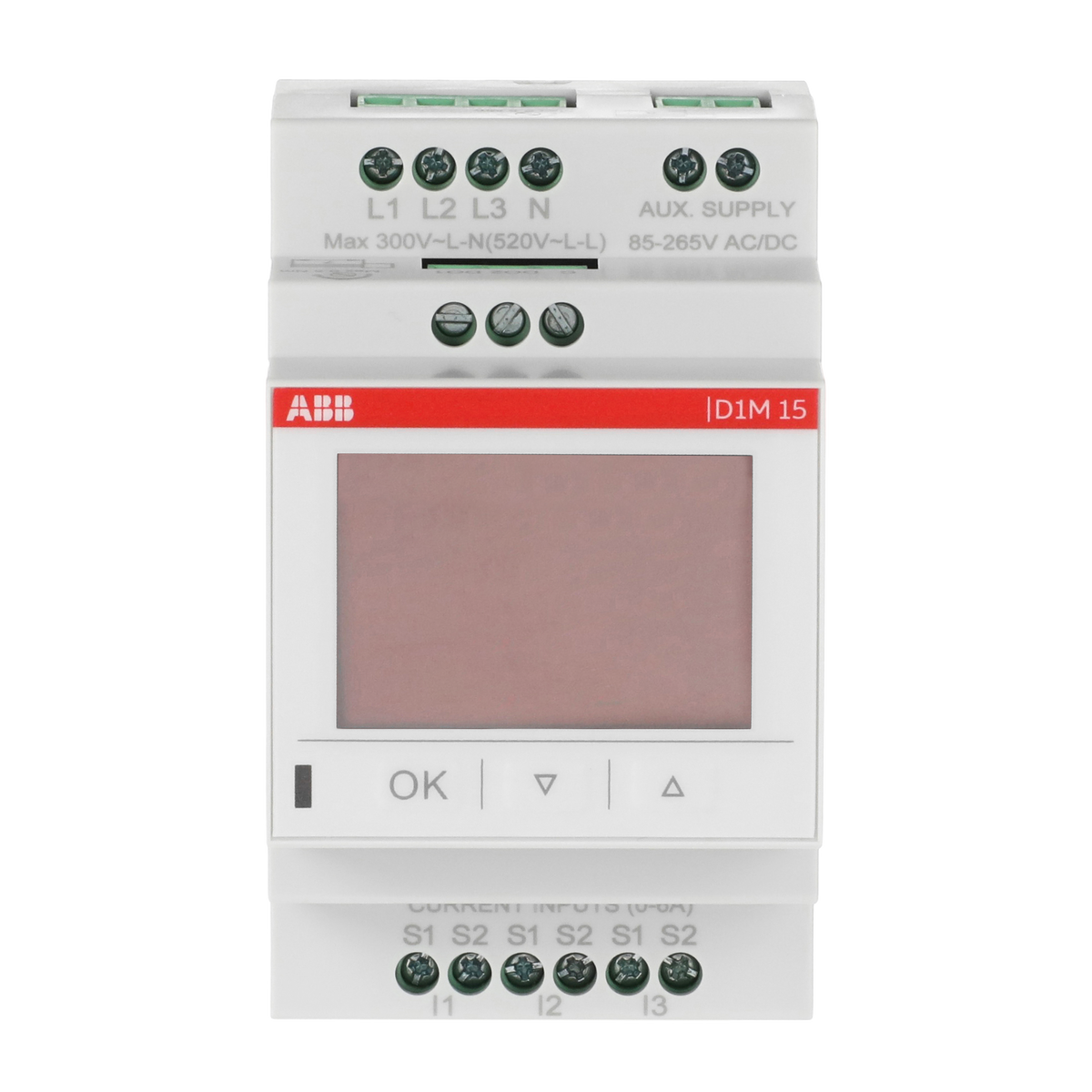

ABB 2TAZ665050R2000 D1M 15 DIN-rail multimeter - 1-3 phase Class 1 LED display
ABB 2TAZ665050R2000 D1M 15 DIN-rail multimeter - 1-3 phase Class 1 LED display

ABB 2TAZ665050R2000 D1M 15 1-3 Phase Class 1 DIN-Rail Multimeter Energy Analyzer

Brand: ABB
Reference No: 2TAZ665050R2000
Catalog No: D1M 15
Series: Network Analyzers and Multimeters
Tariff Code (HS): 902830
Rated Voltage: 80/300 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$182.03

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2TAZ665050R2000 (D1M 15) is a DIN-rail multimeter for 1-phase or 3-phase systems, accepting 1 A or 5 A current inputs up to 300 V AC and 60 kHz bandwidth. It delivers Class 1 active-energy accuracy per IEC 61557-12 with an analogue/digital LED display and 2 digital outputs for alarms or pulse signaling.

Technical Specifications

Catalog Designation D1M 15
SKU 2TAZ665050R2000
Brand ABB
Series Network Analyzers and Multimeters
EAN 6941593481156
Accuracy Active Energy ±1%
Measuring Range Max Voltage AC 300 V, Max Current AC 6 A, Max Frequency 60 kHz
Number of Phases 1-phase / 3-phase
Rated Voltage (Ur) 80-300 V AC (L-N)
Rated Current (In) 1 A / 5 A
Frequency 50-60 Hz
Power Consumption Maximum 5 V·A
Digital Outputs 2
Type of Indicator Analogue/digital (LED)
Degree of Protection IP51
Pollution Degree 2
Ambient Temperature Operation -5 to 55°C / Storage -25 to 70°C
Mounting DIN-Rail
Width 52.5 mm
Height 89 mm
Depth 63.5 mm
Weight 0.252 kg

Certifications & Standards

  • IEC 61557-12
  • IEC 62053-21

Selection Notes

The D1M 15 switches between 1 A and 5 A current inputs and 1-phase or 3-phase measurement, which covers both small single-phase panels and larger 3-phase distribution boards with the same unit. IP51 protection and a -5 to 55°C operating range suit standard panel environments rather than harsh outdoor enclosures. Choose a Modbus RTU version instead when the multimeter needs to report into a networked monitoring system.

Technical Details

Short Description
ABB D1M 15 DIN-rail multimeter, 1/3-phase, 1A/5A CT input, Class 1 active energy, LED display.
Rated Voltage (VAC)
80/300 V AC
Mounting Type
DIN-Rail
Protection Type
IP51
Catalog No
D1M 15
Standards
IEC 61557-12, IEC 62053-21
Delivery Date (Days)
30 days
Model Number
D1M 15
Tariff Code
902830
