ABB 2TAZ312005R1003 E295-PS Permanent Signal Module 1A 250V AC DIN-Rail Latching Relay Accessory

% $-61.31

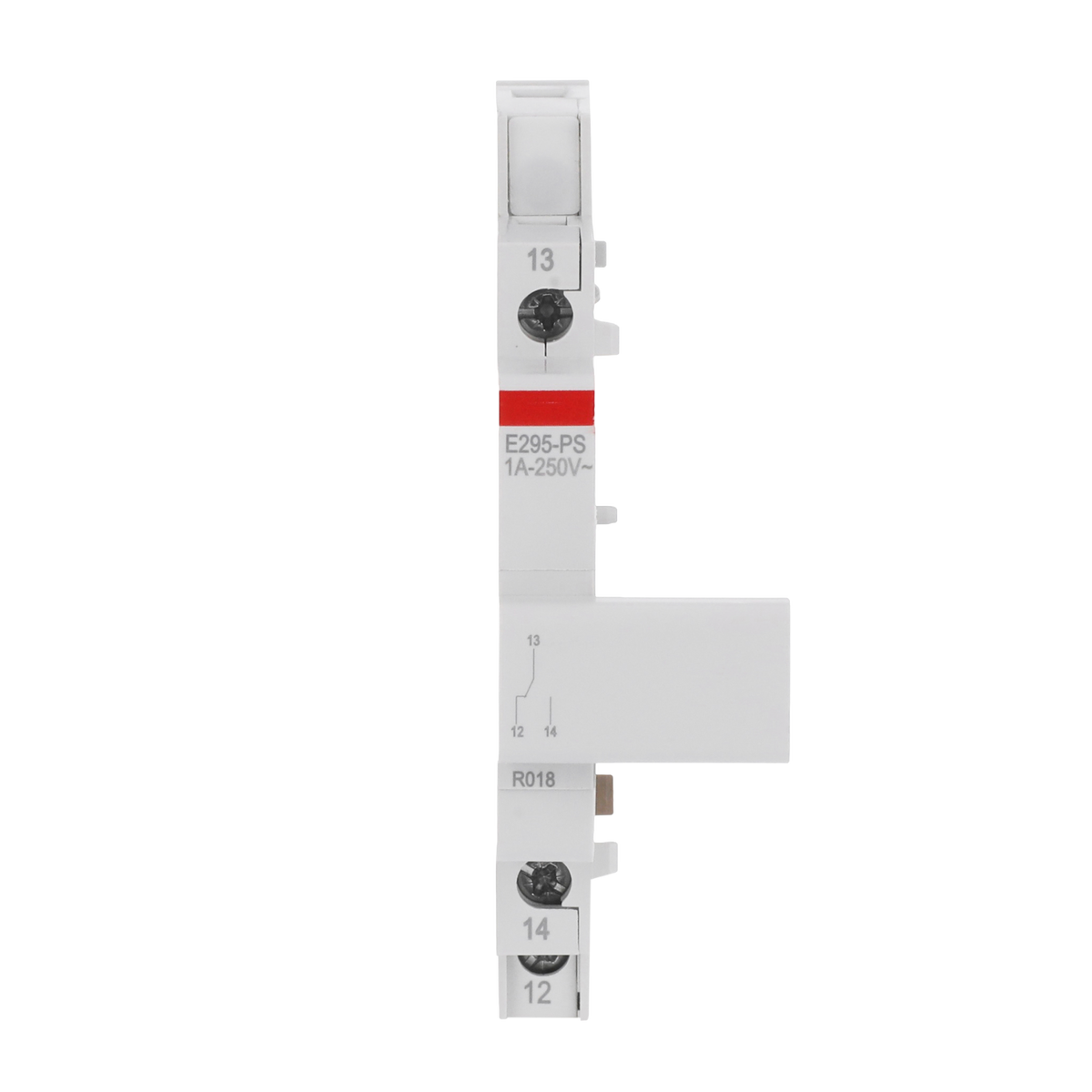

ABB 2TAZ312005R1003 E295-PS Permanent Signal Module - E290 Latching Relay Accessory
ABB 2TAZ312005R1003 E295-PS Permanent Signal Module - E290 Latching Relay Accessory

ABB 2TAZ312005R1003 E295-PS Permanent Signal Module 1A 250V AC DIN-Rail Latching Relay Accessory

Brand: ABB
Reference No: 2TAZ312005R1003
Catalog No: E295-PS
Series: Latching Relays
Tariff Code (HS): 853690
Rated Voltage: 250 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$61.31

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2TAZ312005R1003 E295-PS is a permanent signal module accessory for the E290 latching relay range, rated 1 A at 250 V AC. It adds a steady indicator function to a latching relay circuit so an impulse push-button with a pilot lamp stays lit between switching commands, and mounts on a 0.5-module DIN-rail footprint.

Technical Specifications

SKU 2TAZ312005R1003
Brand ABB
Series Latching Relays, E290
Catalog Designation E295-PS
EAN 7612270939459
Function Permanent signal module
Rated Voltage (Ur) 250 V AC
Rated Control Supply Voltage (Us) 250 V AC
Rated Current (In) 1 A
Rated Frequency 50 Hz
Mounting Type DIN-Rail
Net Width 9 mm
Net Height 85 mm
Net Depth 58 mm
Net Weight 41 g

Certifications & Standards

  • IEC/EN 60669-1
  • IEC/EN 60669-2-2

Selection Notes

Add the E295-PS where a push-button glow lamp needs to stay permanently lit as a position indicator, rather than only flashing during the switch-off warning period handled by other E290 accessories. It draws the same 1 A control-level current as the rest of the latching relay system and does not switch the lighting load itself.

Technical Details

Short Description
ABB E295-PS permanent signal module for E290 latching relays, 1A 250V AC, DIN-rail mount.
Rated Voltage (VAC)
250 V AC
Mounting Type
DIN-Rail
Catalog No
E295-PS
Standards
IEC/EN 60669-1, IEC/EN 60669-2-2
Delivery Date (Days)
30 days
Model Number
E295-PS
Tariff Code
853690
