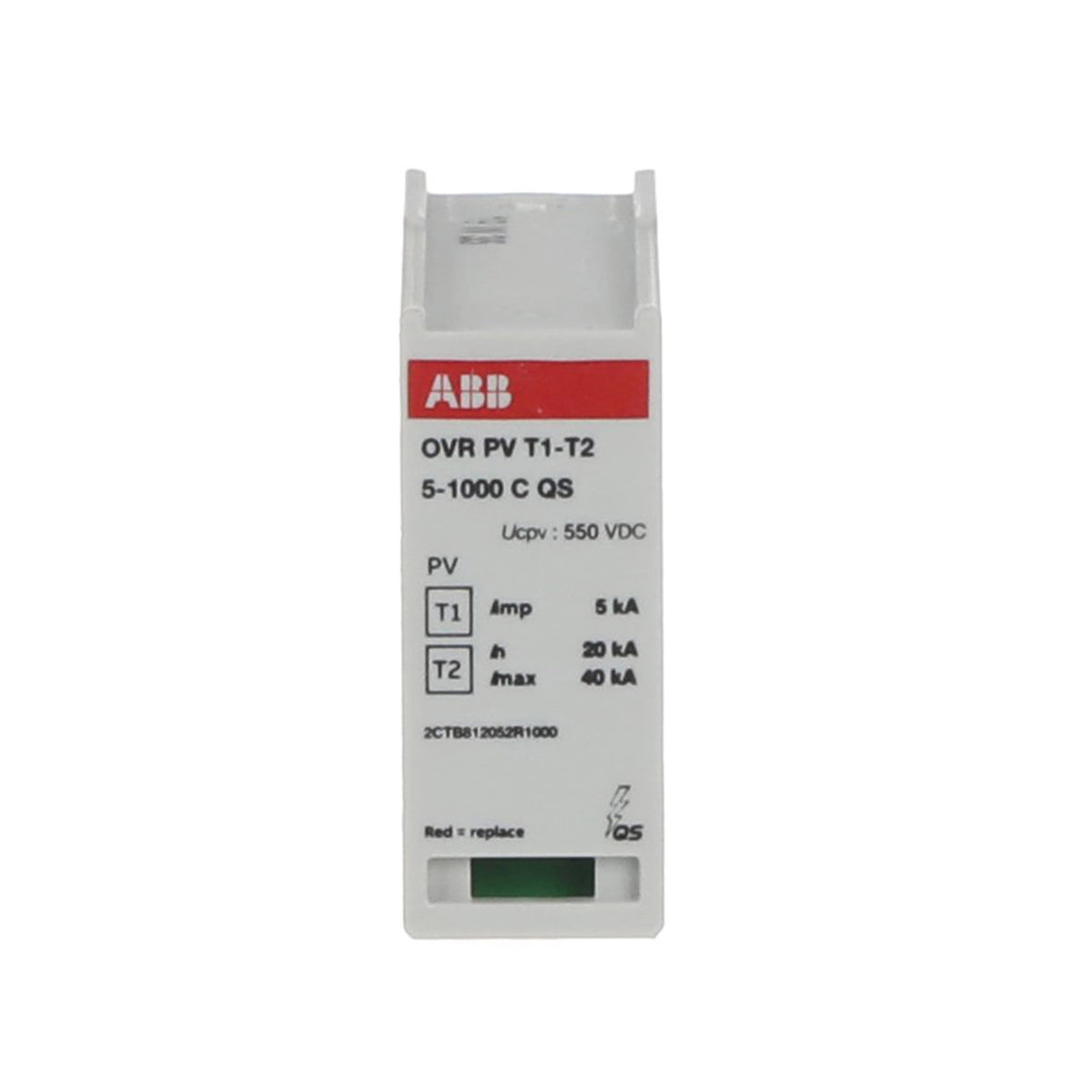

ABB 2CTB812052R1000 OVR PV T1-T2 5-1000 C QS 40kA 2P Solar Surge Protective Device (SPD)

% $-69.20
ABB 2CTB812052R1000 OVR PV T1-T2 5-1000 C QS Solar Surge Protective Device – 1000V DC, 40kA
ABB 2CTB812052R1000 OVR PV T1-T2 5-1000 C QS Solar Surge Protective Device – 1000V DC, 40kA

ABB 2CTB812052R1000 OVR PV T1-T2 5-1000 C QS 40kA 2P Solar Surge Protective Device (SPD)

Brand: ABB
Reference No: 2CTB812052R1000
Catalog No: OVR PV T1-T2 5-1000 C QS
Series: Surge Protective Devices SPD Class I
Tariff Code (HS): 853540
Breaking Type: Type 1+2 (Class I+II) combined arrester, plug-in cartridge
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$69.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CTB812052R1000 (OVR PV T1-T2 5-1000 C QS) is a combined Type 1+2 surge protective device for 1000 V DC photovoltaic strings, supplied as the plug-in protection cartridge (C) for the QS base. It discharges up to 40 kA (8/20 µs) with a 3.8 kV voltage protection level across 2 protected poles, safeguarding PV inverters and combiner boxes against lightning-induced DC surges.

Technical Specifications

Catalog Designation OVR PV T1-T2 5-1000 C QS
SKU 2CTB812052R1000
Brand ABB
Series Surge Protective Devices SPD Class I
EAN 4053546034707
Voltage Rating DC 1000 V
Maximum Power Point (MPP) Voltage 1000 V
Rated Voltage (Ur) 1000 V DC
Arrester Class I / II
Discharge Current, Nominal (8/20 µs) 20 kA
Discharge Current, Max (8/20 µs) 40 kA
Total Discharge Current (10/350 µs) 5 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 11 kA
Voltage Protection Level (Up) 3.8 kV
Number of Protected Poles 2
Number of Conductors 2
Version Plug-in Cartridge
Status Indicator Yes
Degree of Protection IP20
Max Conductor Cross-Section, Solid/Stranded 35 mm²
Max Conductor Cross-Section, Flexible 25 mm²
Net Width 24 mm
Net Height 45 mm
Net Depth 74 mm
Net Weight 0.079 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC 61643-11
  • EN 50539-11

Selection Notes

Being the 'C' cartridge rather than the 'P' full device, this part replaces only the protection module once it reaches end-of-life, while the QS base plate and wiring stay in place — the reason to stock C units once the base is already installed. A 40 kA maximum discharge current and 3.8 kV protection level size it for 1000 V DC PV strings, not the higher-voltage strings that take the 1500 V-rated version. The visual status indicator lets a technician spot a depleted cartridge during a routine inspection without a multimeter check.

Technical Details

Short Description
ABB OVR PV T1-T2 5-1000 C QS solar SPD cartridge, 1000V DC, Type 1+2, 40kA discharge, 2-pole, plug-in.
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
OVR PV T1-T2 5-1000 C QS
Number of Poles
2P
Standards
IEC 61 643-11 / EN 50539-11
Delivery Date (Days)
30 days
Model Number
OVR PV T1-T2 5-1000 C QS
Tariff Code
853540
