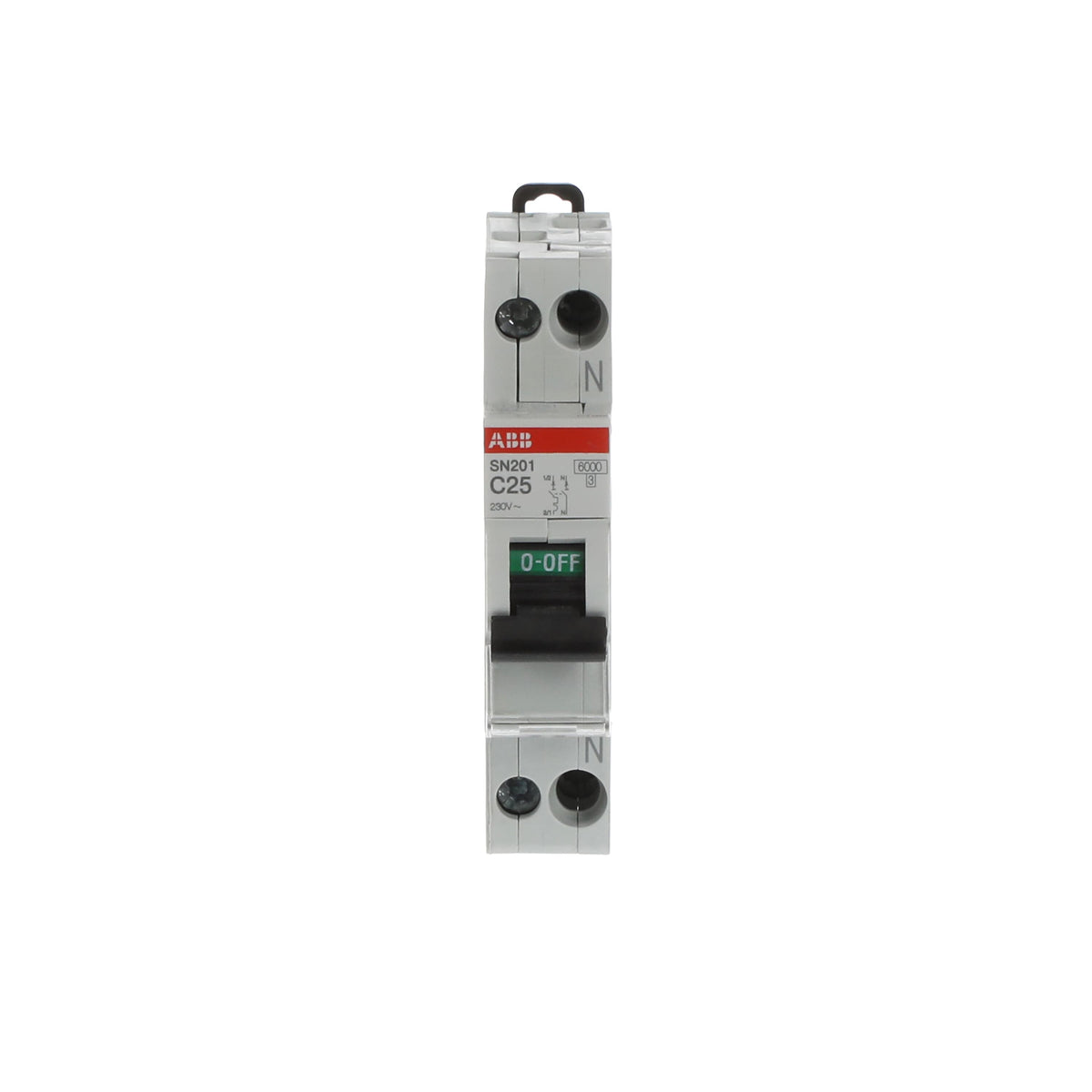

ABB 2CSS255101R0254 SN201-C25 1P+N 25A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

% $-25.90
ABB 2CSS255101R0254 SN201-C25 1P+N 25A MCB, C curve, 6kA at 230V
ABB 2CSS255101R0254 SN201-C25 1P+N 25A MCB, C curve, 6kA at 230V

ABB 2CSS255101R0254 SN201-C25 1P+N 25A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CSS255101R0254
Catalog No: SN201-C25
Series: SN201
Tariff Code (HS): 853620
Rated Current: 25
Breaking Capacity: 6 kA
Breaking Type: Curve C
Rated Voltage: 230 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.90

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSS255101R0254 SN201-C25 is a 1P+N miniature circuit breaker rated 25 A with a C tripping curve, delivering 6 kA short-circuit capacity at 230 V for overload and short-circuit protection. Housed in a single DIN-rail module with cage screw terminals, it places the neutral terminal on the right-hand side.

Technical Specifications

SKU 2CSS255101R0254
Brand ABB
Series SN201
Catalog Designation SN201-C25
EAN 8012542092155
Tripping Characteristic C
Rated Current (In) 25 A
Number of Poles 1P+N
Rated Voltage (Ur) 230 V AC
Rated Short-Circuit Capacity (Icn) 6 kA at 230 V
Rated Ultimate Breaking Capacity (Icu) 10 kA at 230 V
Rated Service Breaking Capacity (Ics) 6 kA at 230 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power Loss 4.4 W
Overvoltage Category III
Degree of Protection IP20
Terminal Type Screw, Cage Terminal
Connecting Capacity Flexible 1-10 mm2 / Rigid 1-16 mm2
Width 18 mm (1 module)
Net Weight 0.11 kg

Certifications & Standards

  • IEC/EN 60898-1

Selection Notes

At 25 A, this C-curve breaker covers sub-circuits feeding fixed single-phase appliances or combined socket/lighting loads where occasional inrush from small motors or transformers must not cause nuisance tripping. Use the 32 A or 40 A siblings in this series for heavier fixed loads, or a lower-current variant where the circuit's continuous draw is well under 25 A.

Technical Details

Short Description
ABB SN201-C25 1P+N 25A C-curve miniature circuit breaker, 6kA at 230V, DIN-rail mount.
Rated Current (Ampere)
25
Breaking Capacity (kA)
6 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SN201-C25
Number of Poles
1P+N
Standards
IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
SN201-C25
Tariff Code
853620
