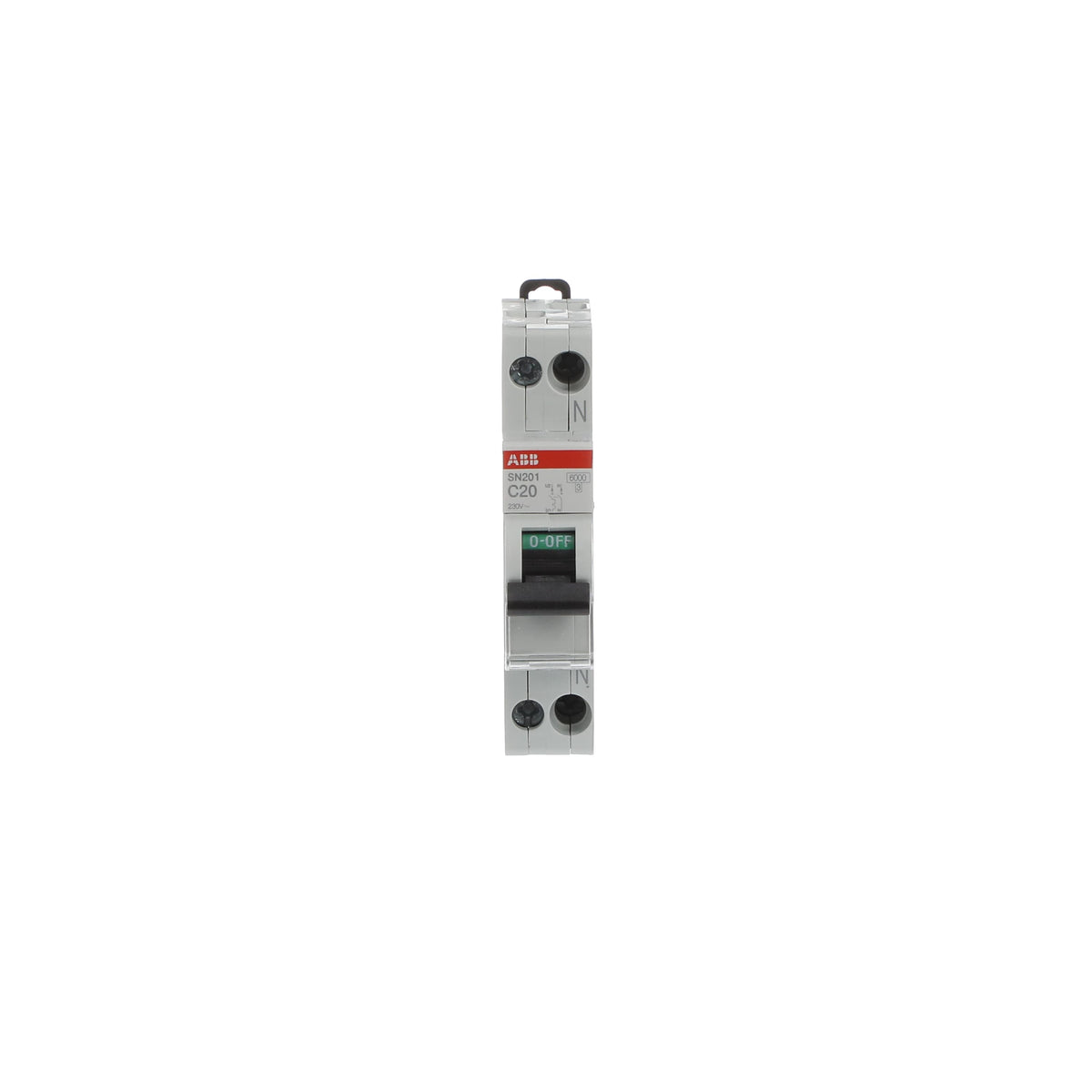

ABB 2CSS255101R0204 SN201-C20 1P+N 20A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

% $-24.93
ABB 2CSS255101R0204 SN201-C20 1P+N 20A MCB, C curve, 6kA at 230V
ABB 2CSS255101R0204 SN201-C20 1P+N 20A MCB, C curve, 6kA at 230V

ABB 2CSS255101R0204 SN201-C20 1P+N 20A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CSS255101R0204
Catalog No: SN201-C20
Series: SN201
Tariff Code (HS): 853620
Rated Current: 20
Breaking Capacity: 6 kA
Breaking Type: Curve C
Rated Voltage: 230 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

With a C tripping curve and a 20 A rating, the ABB 2CSS255101R0204 SN201-C20 is a 1P+N DIN-rail miniature circuit breaker offering 6 kA short-circuit capacity at 230 V. It protects circuits with moderate inrush current against overload and short-circuit, mounting in a single 18 mm module with the neutral on the right.

Technical Specifications

SKU 2CSS255101R0204
Brand ABB
Series SN201
Catalog Designation SN201-C20
EAN 8012542092056
Tripping Characteristic C
Rated Current (In) 20 A
Number of Poles 1P+N
Rated Voltage (Ur) 230 V AC
Rated Short-Circuit Capacity (Icn) 6 kA at 230 V
Rated Ultimate Breaking Capacity (Icu) 10 kA at 230 V
Rated Service Breaking Capacity (Ics) 6 kA at 230 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power Loss 4.8 W
Overvoltage Category III
Degree of Protection IP20
Terminal Type Screw, Cage Terminal
Connecting Capacity Flexible 1-10 mm2 / Rigid 1-16 mm2
Width 18 mm (1 module)
Net Weight 0.11 kg

Certifications & Standards

  • IEC/EN 60898-1

Selection Notes

The C curve's 5-10 x In instantaneous trip band lets this 20 A breaker ride through the inrush of small motors, transformers or fluorescent ballasts without nuisance tripping. Twenty amps suits sub-distribution for lighting circuits or multiple socket outlets; choose the 25 A or 32 A siblings in this series for circuits with a higher continuous load, or the lower-current variants for individually protected control loads.

Technical Details

Short Description
ABB SN201-C20 1P+N 20A C-curve miniature circuit breaker, 6kA at 230V, DIN-rail mount.
Rated Current (Ampere)
20
Breaking Capacity (kA)
6 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SN201-C20
Number of Poles
1P+N
Standards
IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
SN201-C20
Tariff Code
853620
