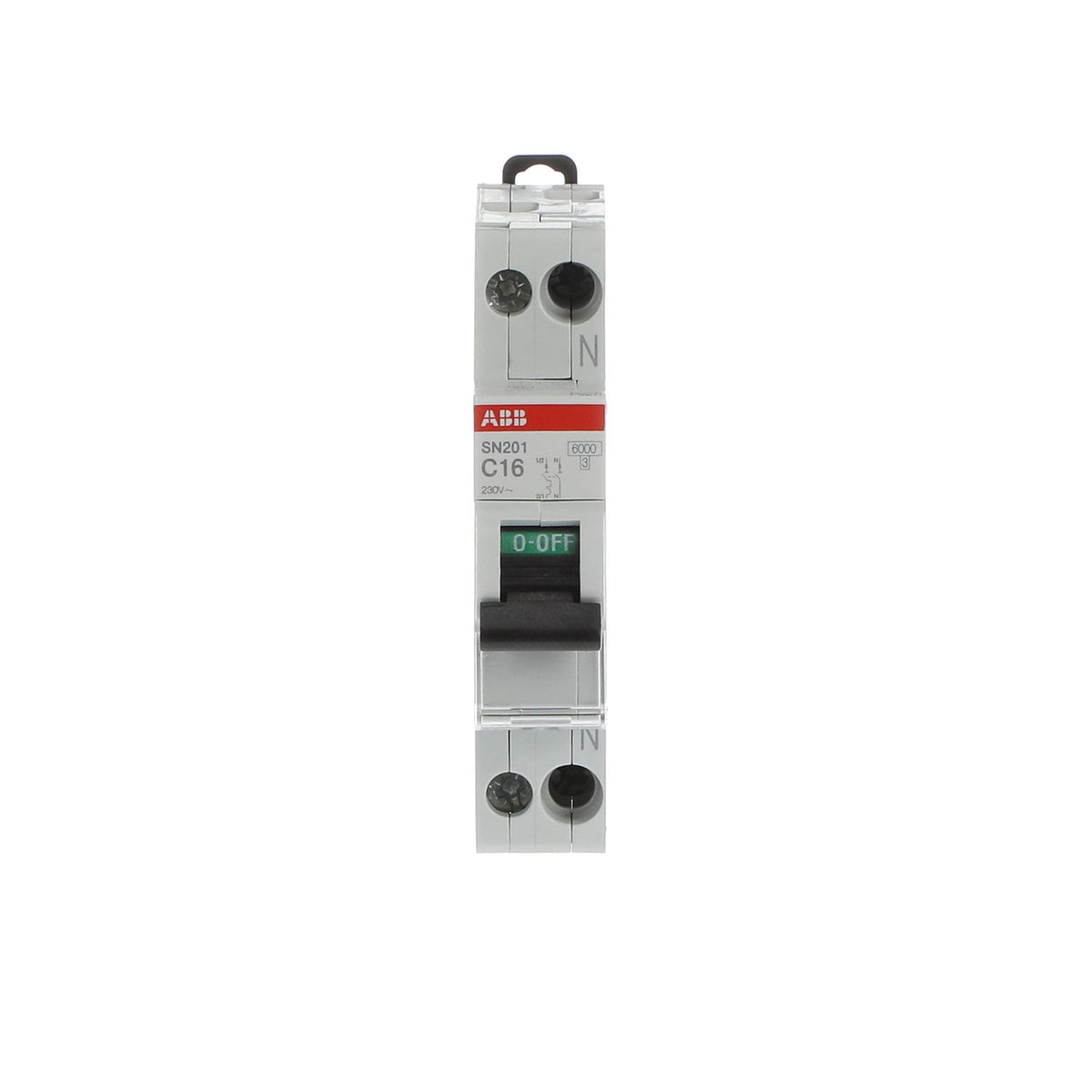

ABB 2CSS255101R0164 SN201-C16 1P+N 16A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

% $-20.70
ABB 2CSS255101R0164 SN201-C16 1P+N 16A MCB, C curve, 6kA at 230V
ABB 2CSS255101R0164 SN201-C16 1P+N 16A MCB, C curve, 6kA at 230V

ABB 2CSS255101R0164 SN201-C16 1P+N 16A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CSS255101R0164
Catalog No: SN201-C16
Series: SN201
Tariff Code (HS): 853620
Rated Current: 16
Breaking Capacity: 6 kA
Breaking Type: Curve C
Rated Voltage: 230 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$20.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 16 A with a C tripping curve, the ABB 2CSS255101R0164 SN201-C16 is a 1P+N miniature circuit breaker delivering 6 kA short-circuit capacity at 230 V. The single-module device protects final circuits with moderate inrush current against overload and short-circuit. Neutral is on the right-hand terminal and the breaker mounts on a standard 35 mm DIN rail.

Technical Specifications

SKU 2CSS255101R0164
Brand ABB
Series SN201
Catalog Designation SN201-C16
EAN 8012542091950
Tripping Characteristic C
Rated Current (In) 16 A
Number of Poles 1P+N
Rated Voltage (Ur) 230 V AC
Rated Short-Circuit Capacity (Icn) 6 kA at 230 V
Rated Ultimate Breaking Capacity (Icu) 10 kA at 230 V
Rated Service Breaking Capacity (Ics) 6 kA at 230 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power Loss 3.6 W
Overvoltage Category III
Degree of Protection IP20
Terminal Type Screw, Cage Terminal
Connecting Capacity Flexible 1-10 mm2 / Rigid 1-16 mm2
Width 18 mm (1 module)
Net Weight 0.11 kg

Certifications & Standards

  • IEC/EN 60898-1

Selection Notes

The C tripping curve trips instantaneously between 5 and 10 times In, giving this 16 A breaker headroom for circuits with moderate inrush, such as small motors, fluorescent lighting ballasts or power tool outlets, without nuisance tripping on startup. At 16 A it fits typical socket-outlet and lighting sub-circuits; move to the 20 A or higher C-curve siblings in this series once the connected steady-state load approaches this device's rated current.

Technical Details

Short Description
ABB SN201-C16 1P+N 16A C-curve miniature circuit breaker, 6kA at 230V, DIN-rail mount.
Rated Current (Ampere)
16
Breaking Capacity (kA)
6 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SN201-C16
Number of Poles
1P+N
Standards
IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
SN201-C16
Tariff Code
853620
