| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 6 | 2CSS255101R0064 | Critical stock | $22.54 | |
| 10 | 2CSS255101R0104This part | Low stock | $20.57 |

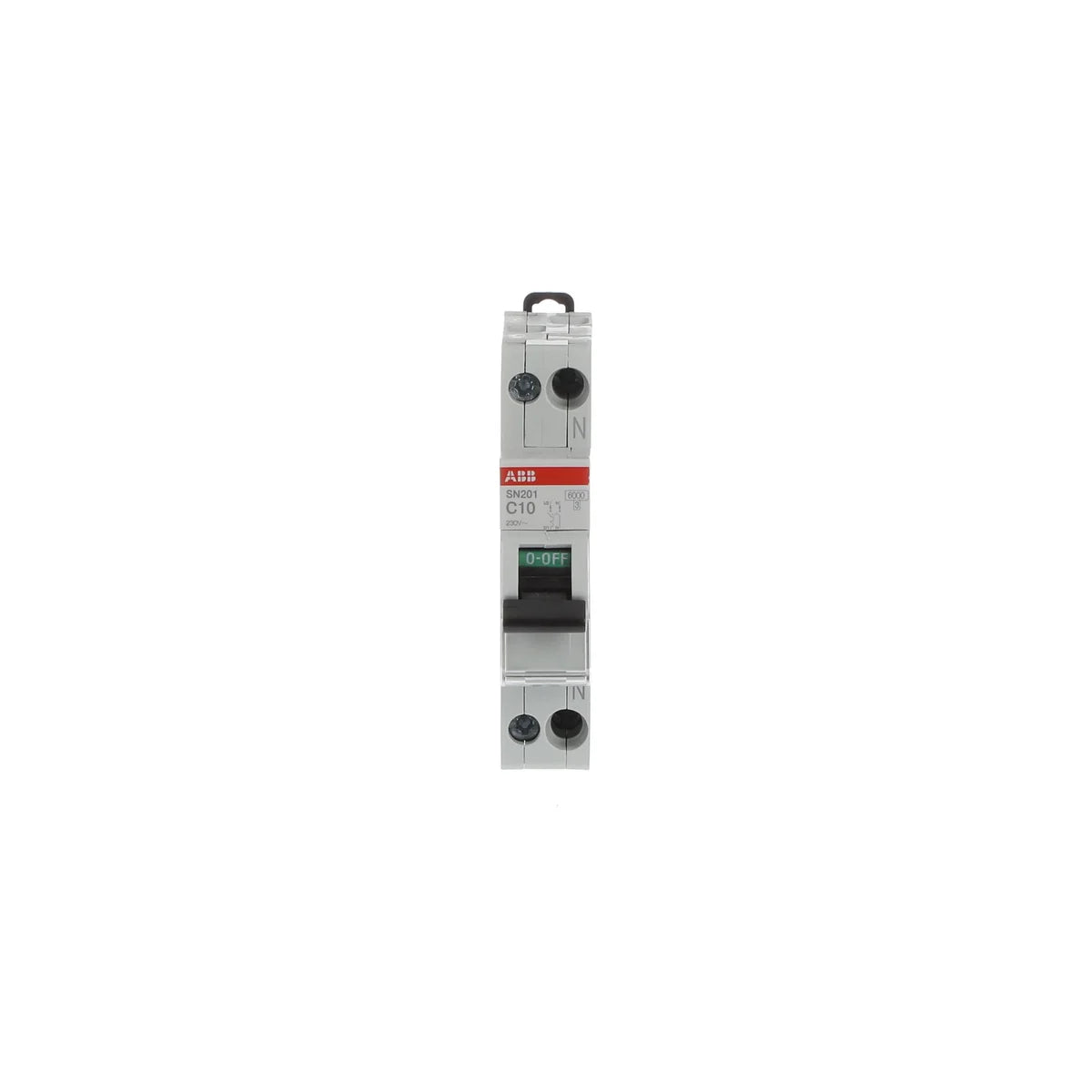

The ABB SN201-C10 miniature circuit breaker (SKU: 2CSS255101R0104) is a 1P+N, 10A, C-curve MCB rated at 230V AC with a breaking capacity of 6 kA, designed for residential and light commercial distribution boards. Compliant with IEC 60898-1 and EN 60898-1, the SN201-C10 offers reliable overcurrent and short-circuit protection in a compact 18mm DIN rail-mount format, making it an ideal choice for engineers and panel builders requiring certified, space-efficient circuit protection.
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Primary Rated Impulse Withstand Voltage | 4 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 6 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Number of Modular Spacings per DIN Rail | 1 |
| Position of Neutral Terminals | Right |
| Tightening Torque | 1.2 N·m |
| Screw Terminal Type | Cage Terminal |
| Accessories Available | Yes |
| Connecting Capacity | Flexible 1 … 10 mm², Rigid 1 … 16 mm² |
| Wire Stripping Length | 11 mm |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Tripping Characteristic | C |
|---|---|
| Rated Voltage (Ur) | 230 V AC |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 10 A |
| Rated Short-Circuit Capacity | (230 V) 6 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Total 1.9 W |
| Overvoltage Category | III |
| Housing Material | Insulation group II, RAL 7035 |
|---|
| Part number | 2CSS255101R0104 |
|---|---|
| Type designation | SN201-C10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8012542091752 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | box 6 piece |
| Package Level 1 Gross Weight | 0.684 kg |
| E-Number (Sweden) | 2100317 |
| RoHS Information | Following EU Directive 2011/65/EU |
|---|---|
| RoHS Date | 20190722 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Ambient Air Temperature | Operation -25 ... +55 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 2 shocks 13 ms |
| Environmental Information | refer to RoHS information |
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 110 g |
| Built-In Depth (t2) | 69 mm |
| Instructions and Manuals | No document needed |
|---|---|
| Mounting Position | Any |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1 |
| Shipping weight | 0.684 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 6 A | 2CSS255101R0064 | SN201-C6 | Critical stock | $22.54 | |||
| 10 A | 2CSS255101R0104 This part | SN201-C10 | Low stock | $20.57 |
The rated current of SN201-C10 is 10 A.
The rated operational voltage of SN201-C10 is 230 V AC.
The tariff (HS) code on file for SN201-C10 is 853620.
The EAN (GTIN) of SN201-C10 is 8012542091752.
SN201-C10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
