Part number
2CSS255101R0064
Model no
SN201-C6
$22.54 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SN201

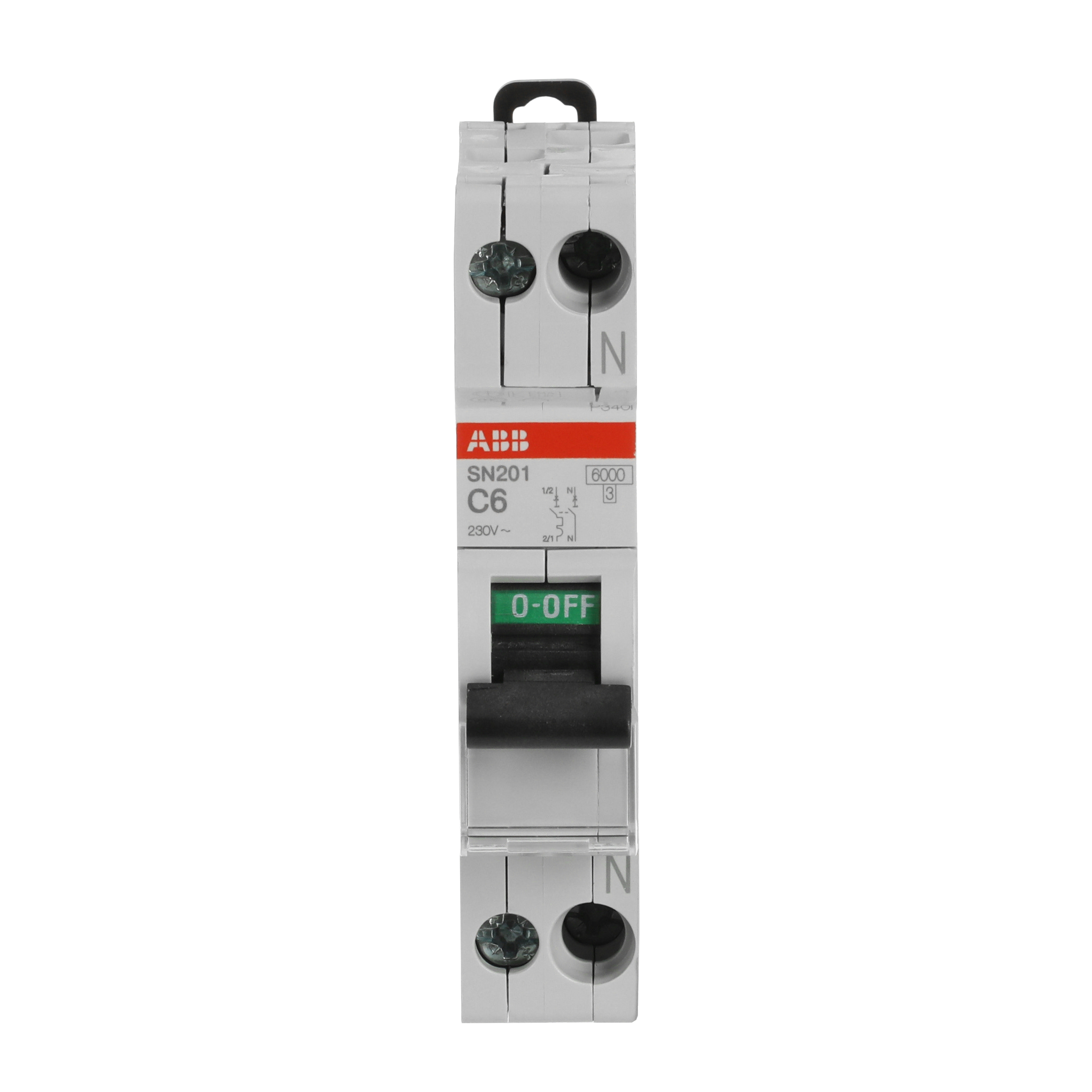

ABB 2CSS255101R0064 SN201-C6 1P+N 6A 6kA C-Curve 230V Miniature Circuit Breaker

Rated current
6 A
Rated operational voltage
230 V AC
Poles
1P+N
Breaking capacity
(230) 10 kA
EAN
8012542091653
Other ratings in SN201 All 2 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
6 2CSS255101R0064This part Critical stock $22.54
10 2CSS255101R0104 Low stock $20.57
Description

About the SN201-C6

The ABB SN201-C6 (SKU: 2CSS255101R0064) is a 1P+N miniature circuit breaker rated at 6 A and 230 V AC, delivering 6 kA breaking capacity to protect residential and light commercial circuits against overloads and short circuits. Part of the ABB SN201 series, the SN201-C6 features a C-curve tripping characteristic ideal for loads with moderate inrush currents, housed in a compact 18 mm DIN-rail module weighing just 110 g.

Certifications & Standards

  • IEC 60898-1: International standard for miniature circuit breakers for household and similar installations
  • EN 60898-1: European harmonised standard equivalent to IEC 60898-1
  • IEC/EN 60898-1: Combined IEC and EN compliance for circuit breaker performance and safety
  • IEC 60898: Base IEC standard for circuit breaker requirements
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 60664: European standard for insulation coordination in low-voltage installations
  • IEC 60068-2: Environmental testing standard covering temperature, humidity, and mechanical stress
  • EN 45555: General methods for assessing the energy-related aspects of networked standby
  • CCC: China Compulsory Certification for electrical safety compliance in the Chinese market
  • CQC: China Quality Certification for voluntary product quality endorsement
  • RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
  • REACH: Compliance with EU chemical safety regulation SVHC restrictions
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for end-of-life recycling

Applications & Use Cases

  • Protection of lighting circuits and socket outlet circuits in residential distribution boards
  • Light commercial and industrial control panel branch circuit protection at 230 V
  • Overload and short-circuit protection for single-phase loads with moderate inrush (C-curve)
  • DIN-rail mounted installations requiring a compact 18 mm 1P+N module
  • Applications demanding CCC certification for the Chinese market or IEC/EN 60898-1 compliance globally
Specification

Full specification

73 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage 4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 6 kA
Power Supply Connection Arbitrary
Contact Position Indication ON / OFF
Energy Limiting Class 3
Electrical Endurance 10000 cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P+N
Number of Modular Spacings per DIN Rail 1
Position of Neutral Terminals Right
Tightening Torque 1.2 N·m
Screw Terminal Type Cage Terminal
Accessories Available Yes
Connecting Capacity Flexible 1 … 10 mm², Rigid 1 … 16 mm²
Wire Stripping Length 11 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Voltage (Ur) 230 V AC
Rated Operational Voltage acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Input Voltage Type AC
Rated Current (In) 6 A
Rated Short-Circuit Capacity (230 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss Total 2.3 W
Overvoltage Category III

Design 1

Housing Material Insulation group II, RAL 7035
Show all 73 specifications ↓ Show less ↑41 more values in Identification, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CSS255101R0064
Type designation SN201-C6
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8012542091653
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units box 6 piece
Package Level 1 Gross Weight 0.684 kg
E-Number (Sweden) 2100321

Material Compliance 5

RoHS Information Following EU Directive 2011/65/EU
RoHS Date 20190722
REACH Information No data - If REACH inform is not yet available for a certain product
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Consumer

Environmental 8

Ambient Air Temperature Operation -25 ... +55 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20
Pollution Degree 2
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 30g 2 shocks 13 ms
Environmental Information refer to RoHS information

Dimensions 6

Width in Number of Modular Spacings 1
Product Net Width 18 mm
Product Net Height 85 mm
Product Net Depth / Length 69 mm
Product Net Weight 110 g
Built-In Depth (t2) 69 mm

Installation 2

Instructions and Manuals No document needed
Mounting Position Any

External Classifications and Standards 4

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1

Logistics 4

Shipping weight 0.684 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CSS255101R0064

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 2 ratings in SN201

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CSS255101R0064 This part SN201-C6 Critical stock $22.54
10 A 2CSS255101R0104 SN201-C10 Low stock $20.57
Certifications

Certifications and standards

  • RoHS
  • CCC
  • IEC/EN 60898-1
Quick answers

Questions about the SN201-C6

What is the rated current of SN201-C6?

The rated current of SN201-C6 is 6 A.

Which supply voltage is SN201-C6 rated for?

The rated operational voltage of SN201-C6 is 230 V AC.

What is the HS code of SN201-C6 for customs?

The tariff (HS) code on file for SN201-C6 is 853620.

What is the EAN of SN201-C6?

The EAN (GTIN) of SN201-C6 is 8012542091653.

Where does SN201-C6 ship from, and how fast?

SN201-C6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
