ABB 2CSS255101R0024 SN201-C2 1P+N 2A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

% $-28.76

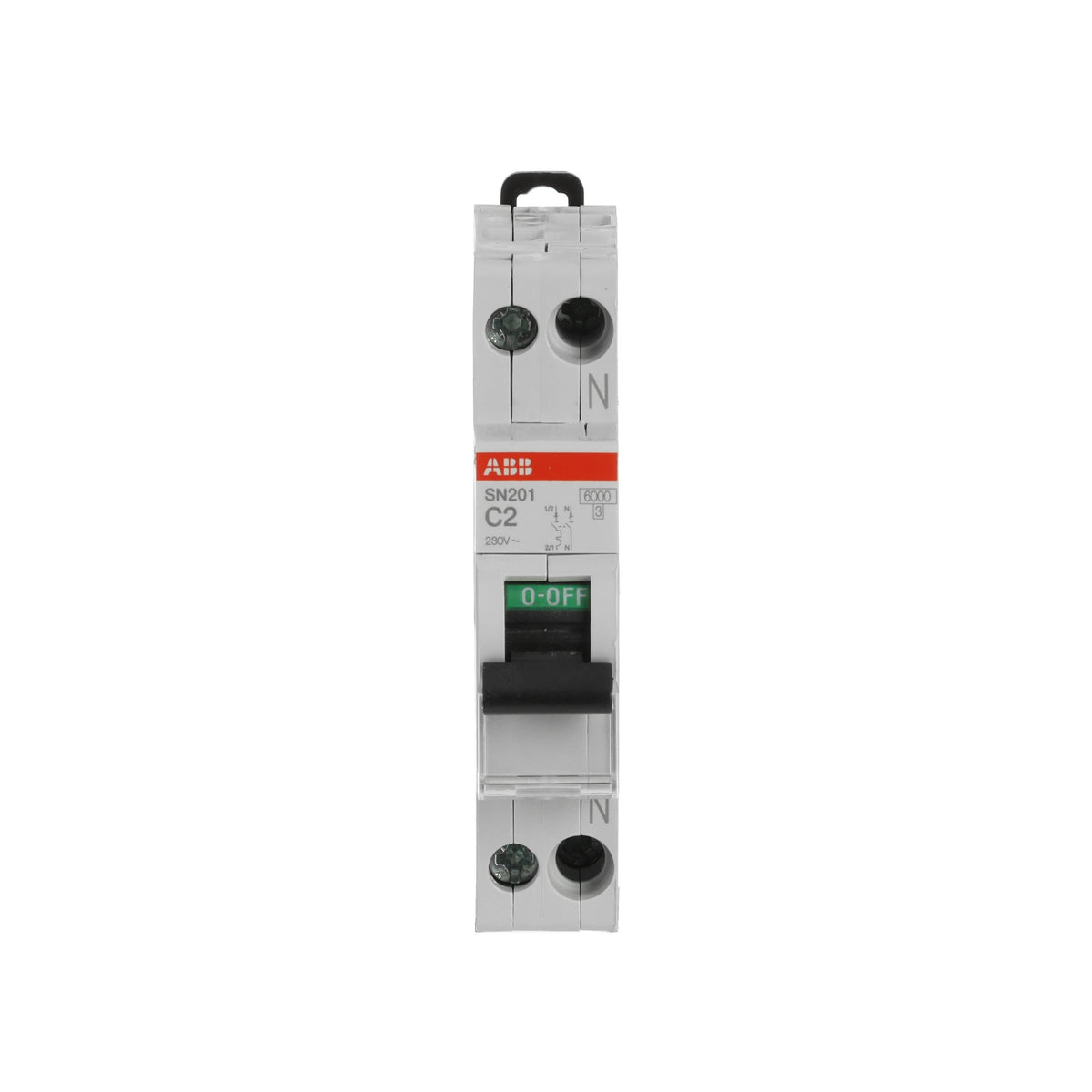

ABB 2CSS255101R0024 SN201-C2 1P+N 2A MCB, C curve, 6kA at 230V
ABB 2CSS255101R0024 SN201-C2 1P+N 2A MCB, C curve, 6kA at 230V

ABB 2CSS255101R0024 SN201-C2 1P+N 2A C-Curve 6kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CSS255101R0024
Catalog No: SN201-C2
Series: SN201
Tariff Code (HS): 853620
Rated Current: 2
Breaking Capacity: 6 kA
Breaking Type: Curve C
Rated Voltage: 230 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$28.76

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSS255101R0024 is a SN201-C2 miniature circuit breaker: a 1P+N, 2 A device with a C tripping curve and 6 kA short-circuit capacity at 230 V, sized for low-current control and signaling circuits. It fits one DIN-rail module, uses cage screw terminals, and places the neutral terminal on the right.

Technical Specifications

SKU 2CSS255101R0024
Brand ABB
Series SN201
Catalog Designation SN201-C2
EAN 8012542091455
Tripping Characteristic C
Rated Current (In) 2 A
Number of Poles 1P+N
Rated Voltage (Ur) 230 V AC
Rated Short-Circuit Capacity (Icn) 6 kA at 230 V
Rated Ultimate Breaking Capacity (Icu) 10 kA at 230 V
Rated Service Breaking Capacity (Ics) 6 kA at 230 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency 50/60 Hz
Power Loss 2.1 W
Overvoltage Category III
Degree of Protection IP20
Terminal Type Screw, Cage Terminal
Connecting Capacity Flexible 1-10 mm2 / Rigid 1-16 mm2
Width 18 mm (1 module)
Net Weight 0.11 kg

Certifications & Standards

  • IEC/EN 60898-1

Selection Notes

The C tripping curve trips instantaneously between 5 and 10 times In, so this 2 A breaker tolerates the brief inrush of small control transformers or indicator-lamp circuits without nuisance tripping. Its 2 A rating is intended for lightly loaded control or auxiliary circuits, not general lighting or socket outlets; step up to a higher-current sibling in this series as soon as the connected load's steady-state draw nears 2 A.

Technical Details

Short Description
ABB SN201-C2 1P+N 2A C-curve miniature circuit breaker, 6kA at 230V, DIN-rail mount.
Rated Current (Ampere)
2
Breaking Capacity (kA)
6 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SN201-C2
Number of Poles
1P+N
Standards
IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
SN201-C2
Tariff Code
853620
