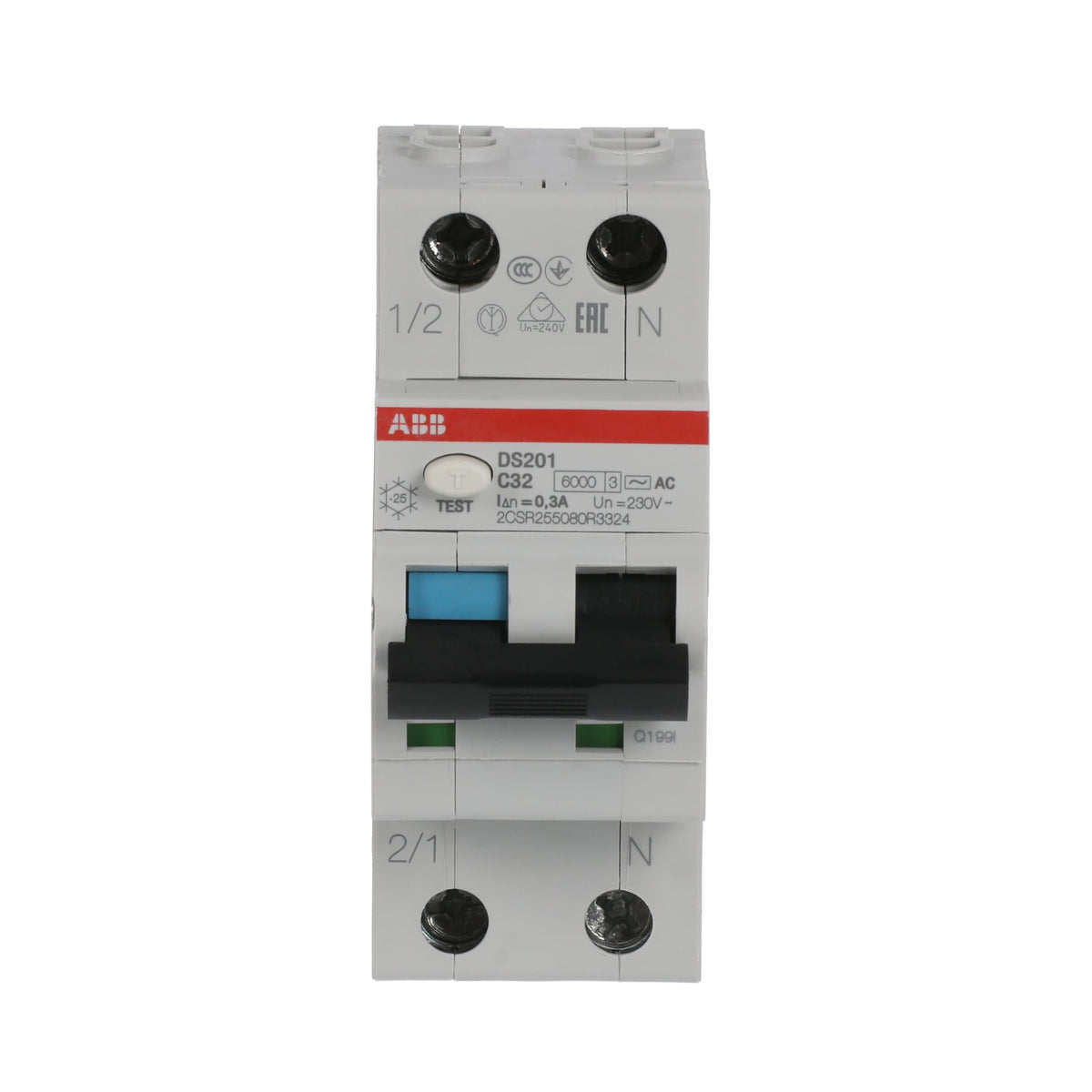

ABB 2CSR255080R3324 DS201 C32 AC300 1P+N Residual Current Breaker with Overcurrent (RCBO)

% $-57.72
ABB 2CSR255080R3324 DS201 C32 AC300 RCBO - 1P+N 32A 300mA Type AC
ABB 2CSR255080R3324 DS201 C32 AC300 RCBO - 1P+N 32A 300mA Type AC

ABB 2CSR255080R3324 DS201 C32 AC300 1P+N Residual Current Breaker with Overcurrent (RCBO)

Brand: ABB
Reference No: 2CSR255080R3324
Catalog No: DS201 C32 AC300
Series: Residual Current Circuit Breakers with Overcurrent Protection RCBO
Tariff Code (HS): 853630
Rated Current: 32
Breaking Type: Curve C, Type AC 300 mA
Rated Voltage: 240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$57.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The 2CSR255080R3324, ABB's DS201 C32 AC300, is a 1P+N RCBO in two DIN-rail modules rated 32 A on a C tripping curve, combining overload and short-circuit protection with 300 mA Type AC residual current sensitivity against sinusoidal earth fault currents. Rated at 240 V AC, it carries a 6 kA breaking capacity and adds direct and indirect contact protection.

Technical Specifications

Catalog No DS201 C32 AC300
SKU 2CSR255080R3324
Brand ABB
Series Residual Current Circuit Breakers with Overcurrent Protection (RCBO)
Rated Current (In) 32 A
Rated Operational Voltage 240 V AC (acc. to IEC 60898-1)
Rated Frequency 50/60 Hz
Tripping Characteristic C
Type of Residual Current Type AC
Rated Residual Current 300 mA
Rated Short-Circuit Capacity 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 10 kA
Rated Conditional Short-Circuit Current (Inc) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA
Number of Poles 1P+N
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Power Loss 9.9 W
Degree of Protection IP20 / IP40
Number of Modules 2
Dimensions (W x H x D) 35 x 85 x 69 mm
Net Weight 200 g
EAN 8012542049616

Certifications & Standards

  • IEC/EN 61009-1
  • IEC/EN 61009-2-1

Selection Notes

The 2CSR255080R3324 covers the 32 A point in the DS201 C-curve range, appropriate where the downstream cable and connected load exceed the 20 A variant but do not need the 40 A version's capacity. Its C tripping characteristic (5-10x In instantaneous) tolerates the inrush of motor or ballast loads. Type AC residual detection is for sinusoidal AC earth faults only - loads producing smoothed DC leakage currents require a Type A device instead.

Technical Details

Short Description
ABB DS201 C32 AC300 - 1P+N RCBO, 32 A, 300 mA Type AC, 6 kA, 2 DIN-rail modules.
Rated Current (Ampere)
32
Rated Voltage (VAC)
240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 / IP40
Catalog No
DS201 C32 AC300
Number of Poles
1P+N
Standards
IEC/EN 61009-1, IEC/EN 61009-2-1
Delivery Date (Days)
30 days
Model Number
DS201 C32 AC300
Tariff Code
853630
