ABB 2CSR255080R3064 DS201 C6 AC300 1P+N Residual Current Breaker with Overcurrent (RCBO)

% $-57.40

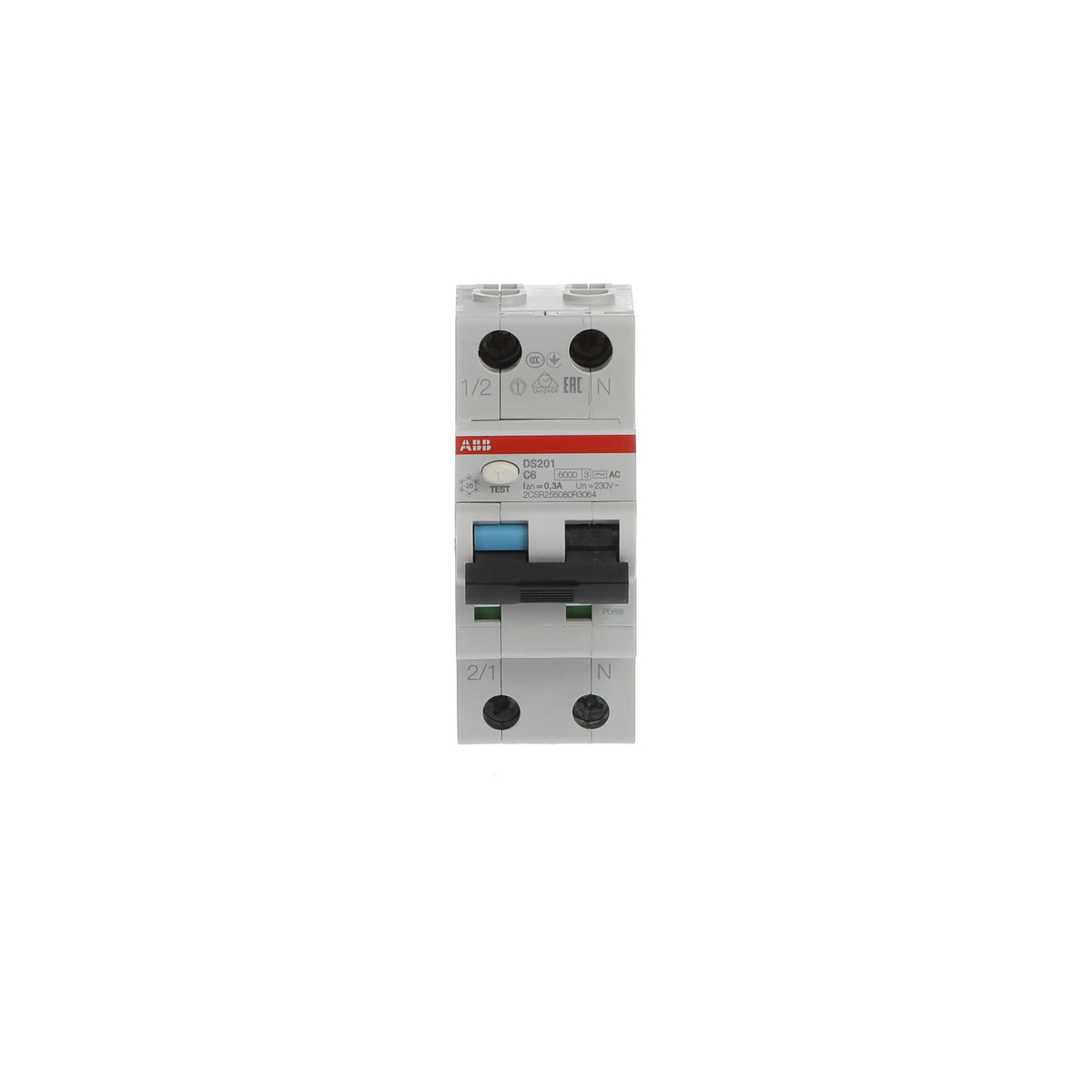

ABB 2CSR255080R3064 DS201 C6 AC300 RCBO - 1P+N 6A 300mA Type AC
ABB 2CSR255080R3064 DS201 C6 AC300 RCBO - 1P+N 6A 300mA Type AC

ABB 2CSR255080R3064 DS201 C6 AC300 1P+N Residual Current Breaker with Overcurrent (RCBO)

Brand: ABB
Reference No: 2CSR255080R3064
Catalog No: DS201 C6 AC300
Series: Residual Current Circuit Breakers with Overcurrent Protection RCBO
Tariff Code (HS): 853630
Rated Current: 6
Breaking Type: Curve C, Type AC 300 mA
Rated Voltage: 240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$57.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 2CSR255080R3064, the DS201 C6 AC300, is a 1P+N RCBO rated 6 A on a C tripping curve in two DIN-rail modules, combining overload and short-circuit protection with 300 mA Type AC residual current sensitivity against sinusoidal earth fault currents. It is rated at 240 V AC with a 6 kA breaking capacity and adds direct and indirect contact protection.

Technical Specifications

Catalog No DS201 C6 AC300
SKU 2CSR255080R3064
Brand ABB
Series Residual Current Circuit Breakers with Overcurrent Protection (RCBO)
Rated Current (In) 6 A
Rated Operational Voltage 240 V AC (acc. to IEC 60898-1)
Rated Frequency 50/60 Hz
Tripping Characteristic C
Type of Residual Current Type AC
Rated Residual Current 300 mA
Rated Short-Circuit Capacity 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 10 kA
Rated Conditional Short-Circuit Current (Inc) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA
Number of Poles 1P+N
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Power Loss 2.6 W
Degree of Protection IP20 / IP40
Number of Modules 2
Dimensions (W x H x D) 35 x 85 x 69 mm
Net Weight 200 g
EAN 8012542047919

Certifications & Standards

  • IEC/EN 61009-1
  • IEC/EN 61009-2-1

Selection Notes

With a 6 A rating, the 2CSR255080R3064 is the lowest-current member of the DS201 C-curve family, matched to lightly loaded circuits rather than full socket-outlet ratings. The C tripping curve still permits the inrush of small inductive loads without nuisance tripping despite the low current rating. Move up to the 10 A, 20 A, 32 A or 40 A variants as the circuit's load and cable size require; the 300 mA Type AC residual sensitivity and 6 kA breaking capacity stay constant across the range.

Technical Details

Short Description
ABB DS201 C6 AC300 - 1P+N RCBO, 6 A, 300 mA Type AC, 6 kA, 2 DIN-rail modules.
Rated Current (Ampere)
6
Rated Voltage (VAC)
240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 / IP40
Catalog No
DS201 C6 AC300
Number of Poles
1P+N
Standards
IEC/EN 61009-1, IEC/EN 61009-2-1
Delivery Date (Days)
30 days
Model Number
DS201 C6 AC300
Tariff Code
853630
